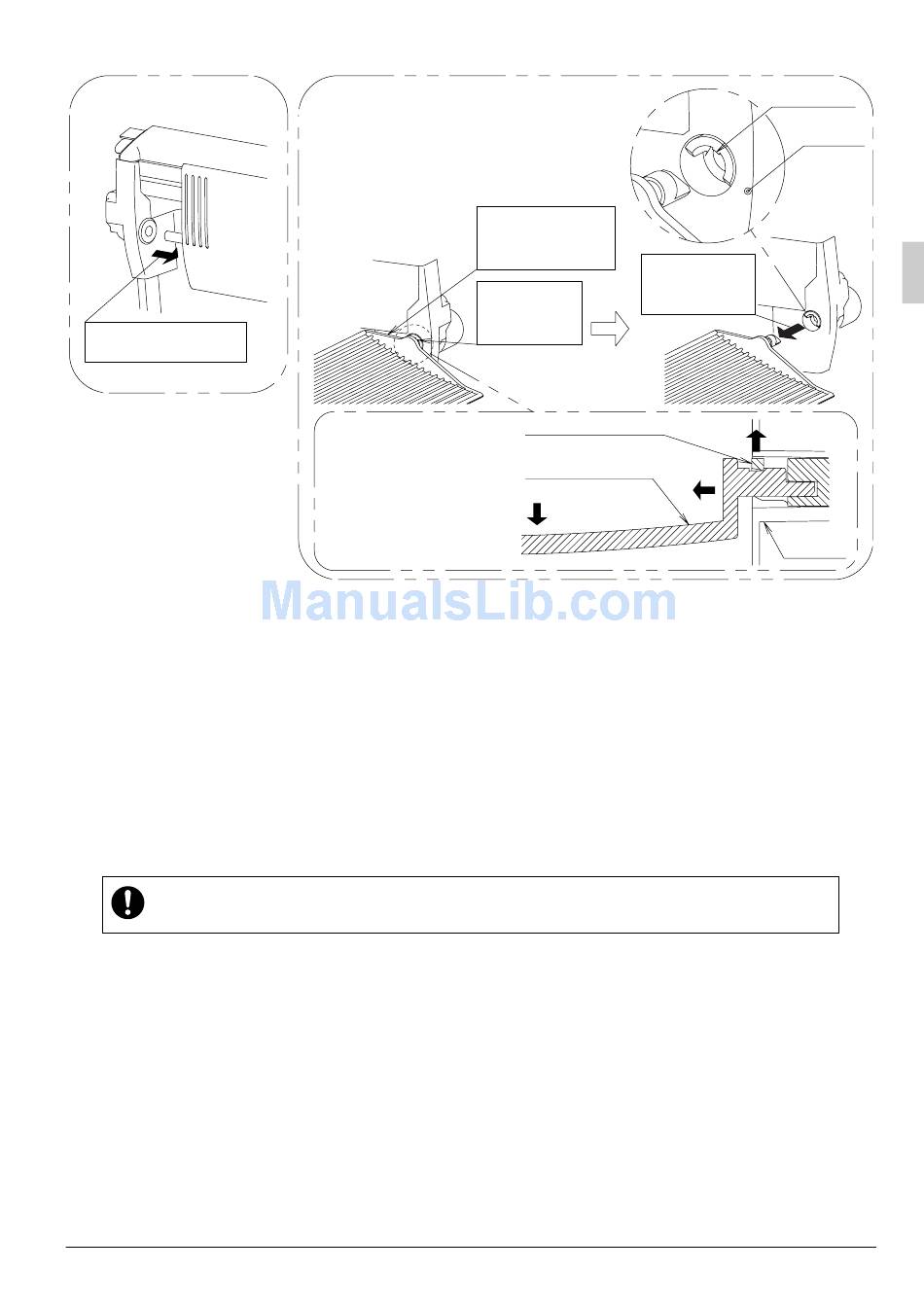

1.
Bend the horizontal
blade and pull it out.
Fig. 11
(2) Fix the blocking material to the air outlet. (Refer to Fig. 12 and Fig. 13)
1. Insert the projected part (2 places) of the blocking material into the clearance between the upper deco-
ration panel and the insulation.
2. Insert the bent part (2 places) at both ends of the blocking material into the clearance between the lower
decoration panel and the drain pan until you hear a clicking sound.
When doing this work, lift the end of the lower decoration panel slightly and insert the blocking material.
If it is difficult to insert it, first loosen the screws on the both sides of the lower decoration panel and then
insert it.
3. Insert the bent part (2 places) inside the blocking material into the clearance between the lower deco-
ration panel and the drain pan until you hear a clicking sound, and then fix the blocking material.
4. Check that the sheet metal section of the blocking material is not protruding from the end of the lower
decoration panel.
Fix the blocking material and the indoor unit tight so that no clearance remains.
If clearance remains, it may cause air leakage and condensation.
English
2.
Turn the
horizontal blade
backward.
Lift the
claw on the
bearing side.
∗When the horizontal
blade is difficult to
remove, slowly push
down the horizontal
blade in the direction of
this arrow. The horizontal
blade will become easier
to remove.
Remove
the horizontal
blade.
Claw (Lift upward.)
Horizontal blade
∗
Claw parts
Bearing
Bearing
