Tape

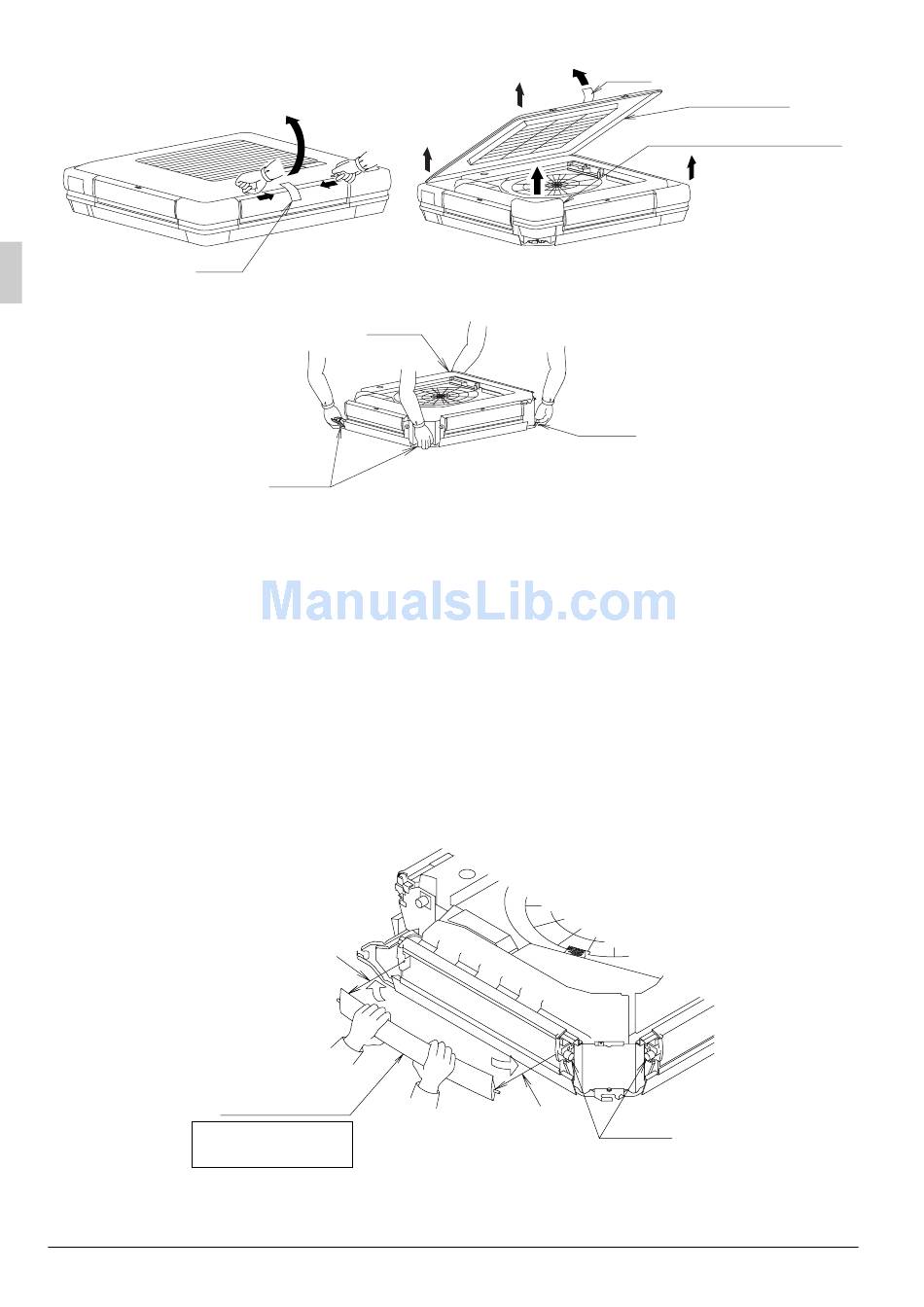

• When carrying the indoor unit, hold it by the hanging metal fittings. (Refer to Fig. 9)
How to block the air outlet for 2-way or 3-way air discharge
• For 2-way air discharge, in addition to the attached blocking material, the optional blocking material kit for
2-way discharge is required.
The attached blocking material and the optional blocking material for 2-way discharge can be used in com-
mon for any air outlet.
• For 2-way air discharge, give caution to the inclination of the indoor unit when installing. For details, follow
the instruction mentioned in the section "5. INSTALLATION OF THE INDOOR UNIT".
(1) Remove the horizontal blade of the air outlet to be blocked. (Refer to Fig. 10 and Fig. 11)
1. Without applying force to the bearings, lift the horizontal blade with both hands and remove it from the
bearing at the side of the motor not mounted.
2. After turning the horizontal blade backward, remove the claw of the bearing on the motor side. Then, lift
the horizontal blade and remove it.
Bend the horizontal
blade and remove it.
9
Hanger
Hanger
1.
Horizontal blade
Fig. 8
Hanger
Fig. 9
2.
Fig. 10
Tape
Suction grille
Corner cover at 4 places.
Motor
