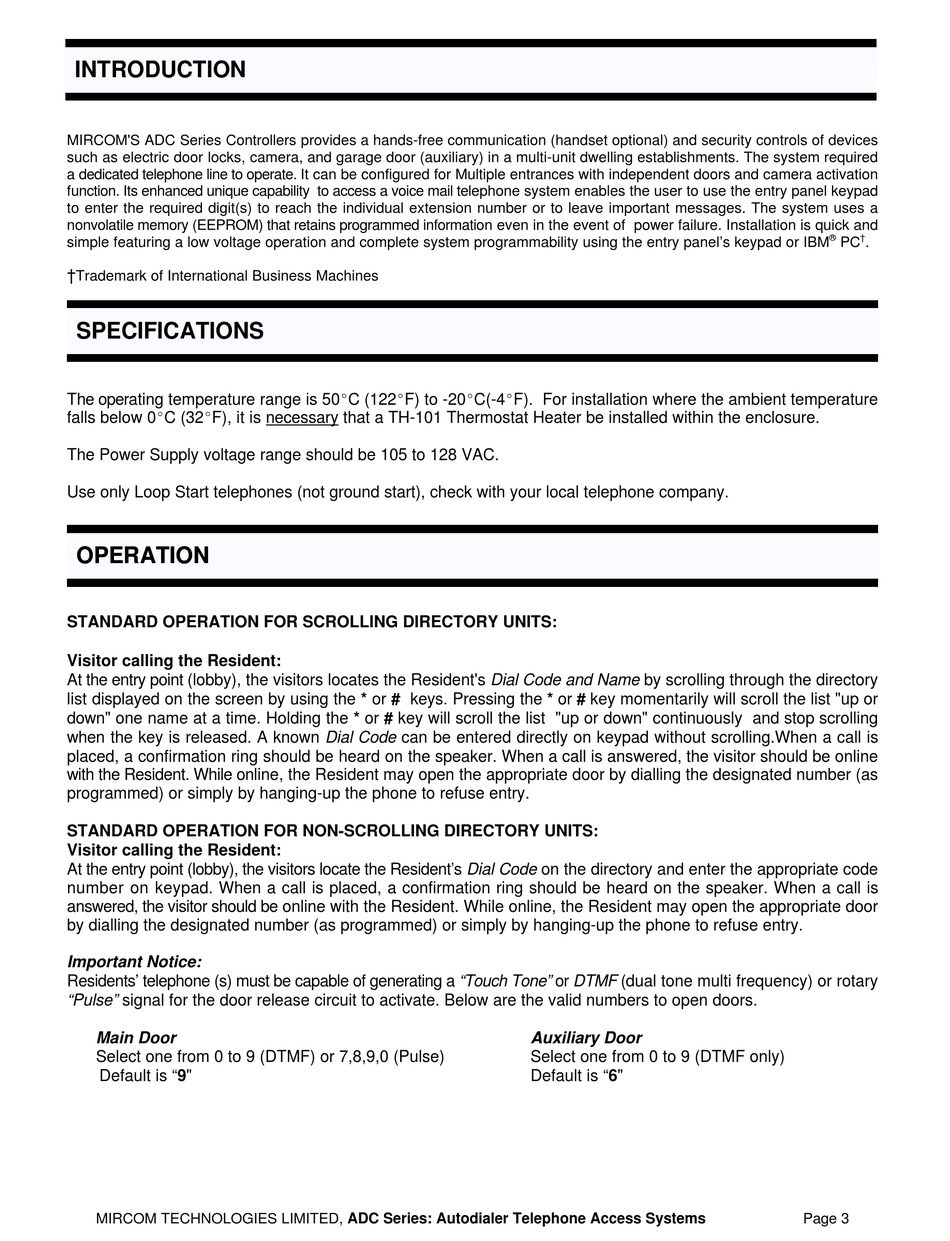

INTRODUCTION

MIRCOM'S ADC Series Controllers provides a hands-free communication (handset optional) and security controls of devices
such as electric door locks, camera, and garage door (auxiliary) in a multi-unit dwelling establishments. The system required
a dedicated telephone line to operate. It can be configured for Multiple entrances with independent doors and camera activation
function. Its enhanced unique capability to access a voice mail telephone system enables the user to use the entry panel keypad
to enter the required digit(s) to reach the individual extension number or to leave important messages. The system uses a
nonvolatile memory (EEPROM) that retains programmed information even in the event of power failure. Installation is quick and
simple featuring a low voltage operation and complete system programmability using the entry panel's keypad or IBM PC .
†
Trademark of International Business Machines

SPECIFICATIONS

The operating temperature range is 50EC (122EF) to -20EC(-4EF). For installation where the ambient temperature
falls below 0EC (32EF), it is necessary that a TH-101 Thermostat Heater be installed within the enclosure.
The Power Supply voltage range should be 105 to 128 VAC.
Use only Loop Start telephones (not ground start), check with your local telephone company.

OPERATION

OPERATION
STANDARD OPERATION FOR SCROLLING DIRECTORY UNITS:
Visitor calling the Resident:
At the entry point (lobby), the visitors locates the Resident's Dial Code and Name by scrolling through the directory
list displayed on the screen by using the * or # keys. Pressing the * or # key momentarily will scroll the list "up or
down" one name at a time. Holding the * or # key will scroll the list "up or down" continuously and stop scrolling
when the key is released. A known Dial Code can be entered directly on keypad without scrolling.When a call is
placed, a confirmation ring should be heard on the speaker. When a call is answered, the visitor should be online
with the Resident. While online, the Resident may open the appropriate door by dialling the designated number (as
programmed) or simply by hanging-up the phone to refuse entry.
STANDARD OPERATION FOR NON-SCROLLING DIRECTORY UNITS:
Visitor calling the Resident:
At the entry point (lobby), the visitors locate the Resident's Dial Code on the directory and enter the appropriate code
number on keypad. When a call is placed, a confirmation ring should be heard on the speaker. When a call is
answered, the visitor should be online with the Resident. While online, the Resident may open the appropriate door
by dialling the designated number (as programmed) or simply by hanging-up the phone to refuse entry.
Important Notice:
Residents' telephone (s) must be capable of generating a "Touch Tone" or DTMF (dual tone multi frequency) or rotary
"Pulse" signal for the door release circuit to activate. Below are the valid numbers to open doors.
Main Door
Select one from 0 to 9 (DTMF) or 7,8,9,0 (Pulse)
Default is "9"
MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems
Auxiliary Door
Select one from 0 to 9 (DTMF only)
Default is "6"
® †
Page 3
