WIRING THE AUXILIARY RELAY and MAIN ENTRANCE ACTIVE RELAY CONTACTS

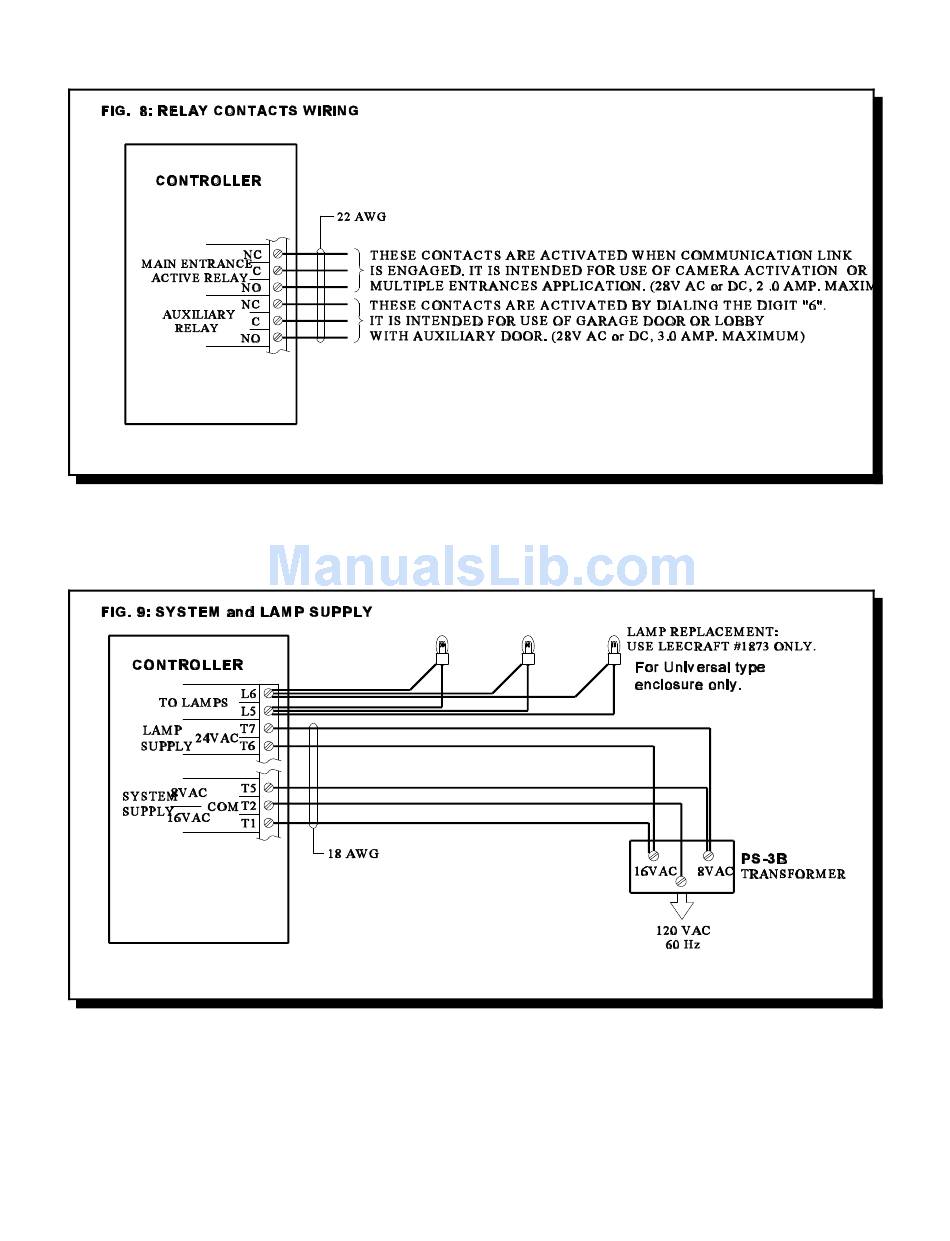

Wire as shown in FIG.8.
WIRING THE SYSTEM and LAMP SUPPLIES
Wire as shown in FIG. 9.
MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems
