  • Page 1 PC/HD to 1080p DVI Scaler Box Operation Manual CP-255D...

  • Page 3: Table Of Contents

    Table of contents (1).Introduction................... P1 (2).Features....................P1 (3).What's included..................P1 (4).Operation Controls and Functions............. P2 Front Panel..................... P2 Rear Panel..................... P2 Remote Control and functions............P3 (5).Installation....................P4 Input Connection................. P4 Output Connection................P5 (6).OSD Operation..................P6 Specifications..................P8...

  • Page 4: Introduction

    1080p) and DVI (up to WUXGA) and scale them up to DVI-I output (1080p/WUXGA). 2. The input to the CP-255D is analog PC or HDTV signal in the format of either RGBHV, YPbPr, (YCbCr) or digital DVI. 3. The output of the CP-255D is digital DVI plus analog PC/HD with selectable output resolution from 480i to 1080p and VGA to WUXGA.

  • Page 5: Operation Controls And Functions

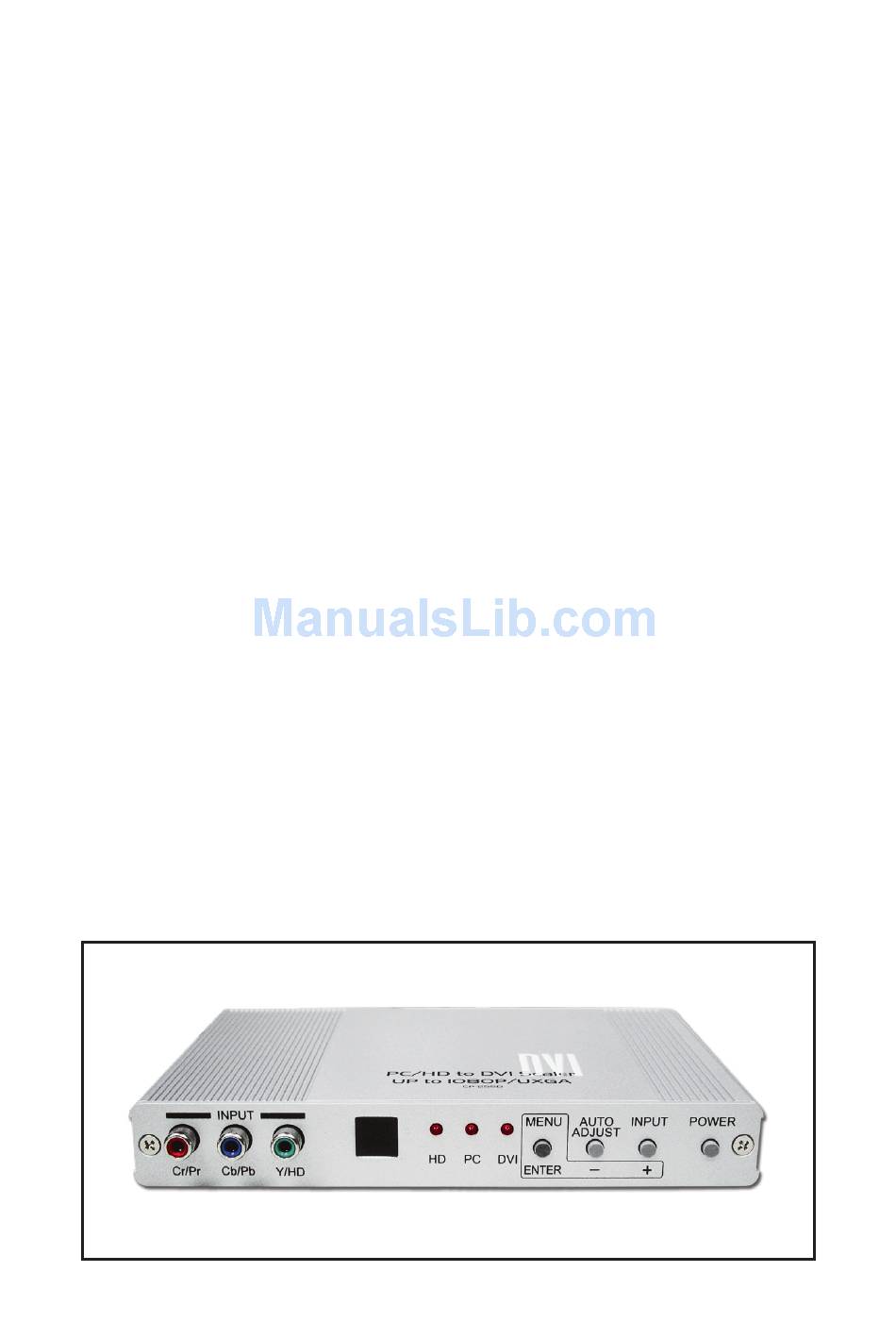

    YPbPr (YCbCr) b. Auto Tune ("-"): Press the "-" button to carry out picture auto adjust for analog inputs (component or PC). The CP-255D will fine tune the position (centering) and color of the output picture. c. When in the OSD menu mode: Press the +, - button to move up or down the highlight bar to your desired parameter.

  • Page 6: Remote Control And Functions

    5. Power jack: Connect to the 5V 2A DC power adaptor. Remote Control and functions: 1. Power: Press the button once to power on the CP-255D. Press again to enter standby mode. 2. Input: Press the button repeatedly to toggle through various input sources as follows.

  • Page 7: Installation

    10. OK (Enter): Press the button to confirm your selection. 11. Reset: Press the button to reset the unit's firmware setting to the factory default value. 12. Auto Adjust: Press the button to optimize the position of the picture (picture centering) on the screen. (5).Installation Input Connection INPUT...

  • Page 8: Output Connection

    LCD TV Monitor HDMI TV The CP-255D can output a variety of PC, SD and HD resolutions in both digital and analog format simultaneously. The digital output is available from the DVI output connector while the analog output is available from the PC D-sub output connector.

  • Page 9: Osd Operation

    (6).OSD Operation After power on the unit, press the "menu" button will bring up the main menu as follows: Main Menu Video (or PC) Video(PC) Color Output Info Color Contrast User H.Position Project Output Input Brightness Normal SVGA V.Position Warm Time out Output Cool...
  • Page 10 Cool: Cool color tone makes white bluish. Value of Normal Setting 6.3 Output: The CP-255D can output a wide variety of PC and HD resolutions. Refer to product specifications. 6.4 OSD Adjust: H.Position: Adjust the horizontal position of the OSD graphic.

  • Page 11: Specifications

    - YCbCr/YPbPr x 1 via 3 RCA jack - PC RGB x 1 via 15 pin D-sub - DVI (CP-255D)x 1 Output connector: - DVI (CP-255D)x 1 - PC 15 pin D-sub x 1 (CP-255D) Dimension: 180(W)x124(D)x25(H)mm Weigh: 600gs DC 5V 2.6 Amp...
