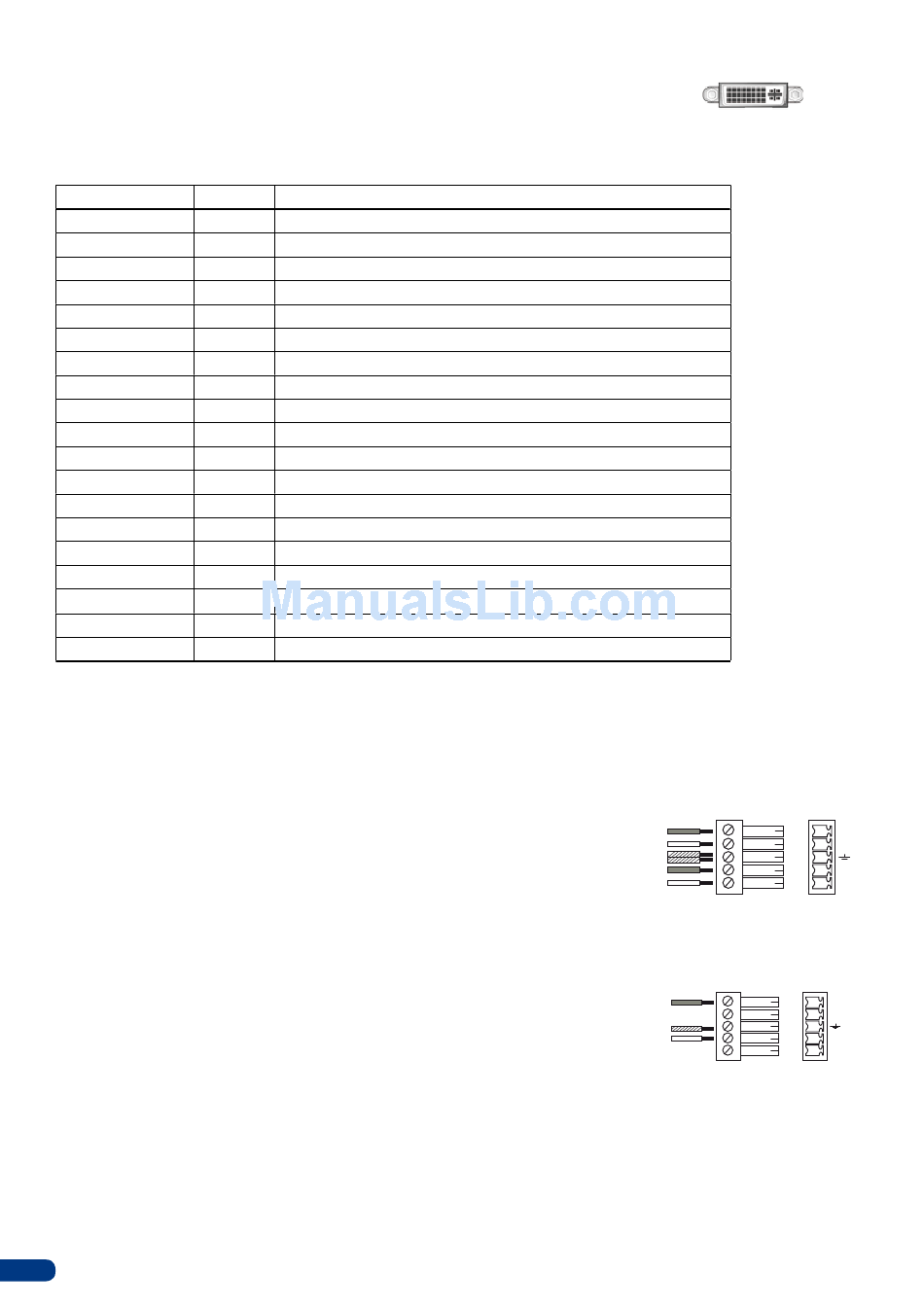

• DVI (Digital Video Interface) OUTPUTS:
Connector: Outputs #1 (Main) & #2 (Preview): female DVI-I
(digital pins).
Signal: Digital Visual Interface (DVI)-TMDS single link.
Resolutions:
Format
640 x 480
800 x 600
848 x 480
1024 x 768
1280 x 720
1280 x 768
1280 x 800
1280 x 1024
1360 x 768
1366 x 768
1366 x 800
1400 x 1050
1440 x 900
1600 x 1200
1680 x 1050
1920 x 1080
1920 x 1080 B
1920 x 1200
2048 x 1080
• AUDIO OUTPUT:
Connector: Outputs #1 (Main):
Balanced or unbalanced mono/stereo output
(on 5-pin MCO male connector).
Vo max: Unbalanced = +15dBu (at 300Ω load).
Balanced = +21 dBu (at 600Ω load).
Zo = 600 Ω balanced.
Zo = 300 Ω unbalanced.
G = 0 dB nominal.
14
Ratio
4 : 3
4 : 3
16 : 9
4 : 3
16 : 9
15 : 9
16 : 10
5 : 4
16 : 9
16 : 9
15 : 9
4 : 3
16 : 10
4 : 3
16 : 10
16 : 9
16 : 9
16 : 10
19 : 10
Available Refresh Rates
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz 72Hz 75Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
Balanced connection
L+
L-
GROUND(S)
R+
R-
Unbalanced connection
LEFT DIV 1
RIGHT DIV 1
GROUND
LEFT DIV 2
RIGHT DIV 2
4
L+
L-
R+
R-
BALANCED
L DVI 1
R DVI 1
L DVI 2
R DVI 2
UNBALANCED
