Suppression Release Peripheral Installation Reference Diagram - Simplex 4010 User Manual

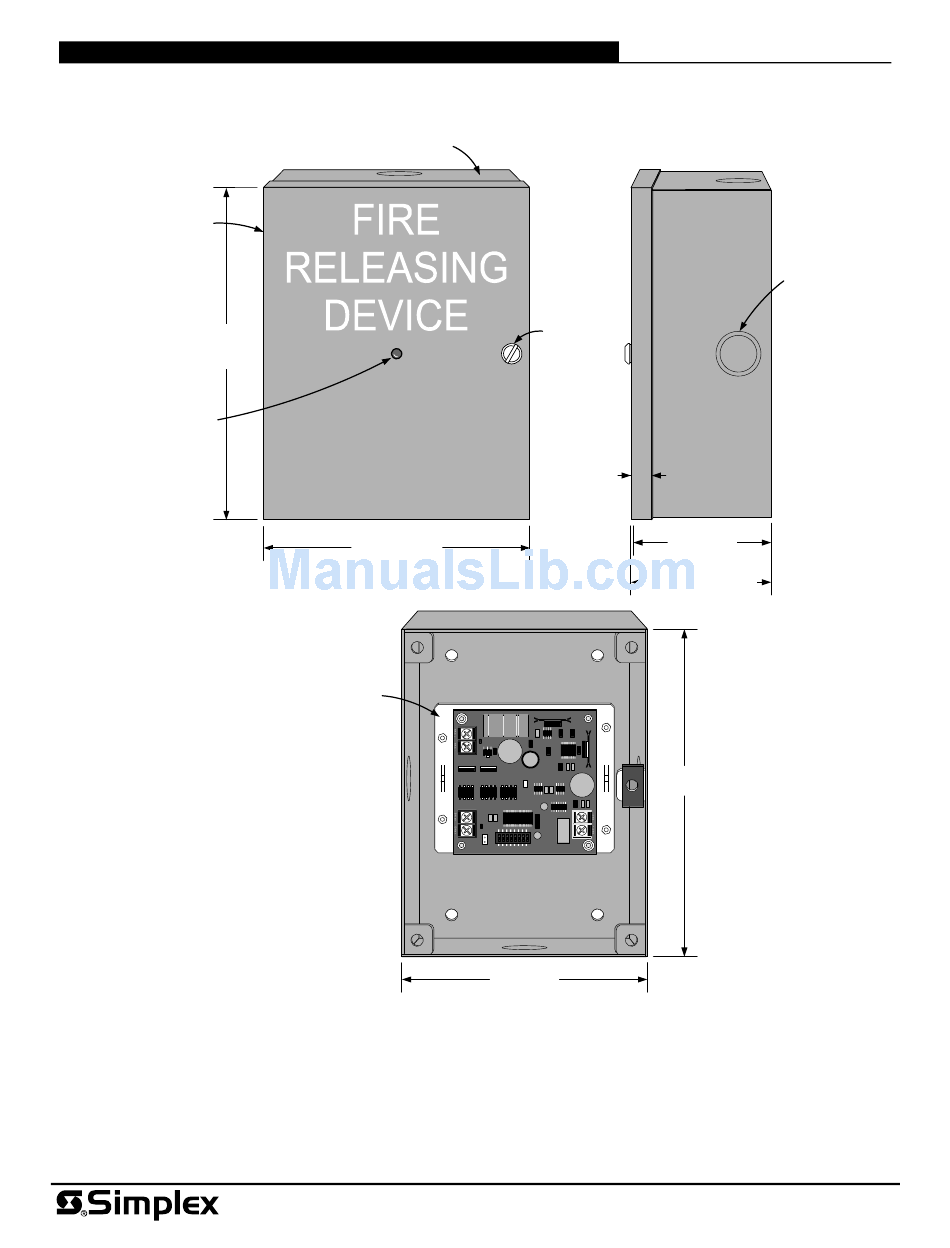

Suppression Release Peripheral Installation Reference Diagram

Door hinges on left and
lifts off for access
Door height
8-1/8"
(206 mm)
4090-9812 LED indicator
option (supplied with
4090-9006)
Release Peripheral assembly
TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm and
Signaling Code are registered trademarks of the National Fire Protection Association (NFPA).
© 2013 Tyco Fire Protection Products. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
2975-9227 Box, red with white
lettering (supplied with 4090-9006)
Door width
6-1/8" (156 mm)
4090-9005 Suppression
(supplied with 4090-9006)
Tyco Fire Protection Products • Westminster, MA • 01441-0001 • USA
www.simplexgrinnell.com
Door screw
fastener
Door depth
1/2" (13 mm)
Box depth with door
4-1/16" (103 mm)
ON
1 2 3 4 5 6 7 8
IDNET SUPPRESSION RELEASE PERIPHERAL ASSY 566-104
Box width
6" (152 mm)
4 Knockouts,
one each side
Box depth
4" (102 mm)
Box height
8" (203 mm)
S4010-0003-5 6/2013
