Teleco Magic Sat 2002A Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

V007
INSTALLATION GUIDE
and user manual
GB

Advertisement

Table of Contents
loading

Related Manuals for Teleco Magic Sat 2002A

Summary of Contents for Teleco Magic Sat 2002A

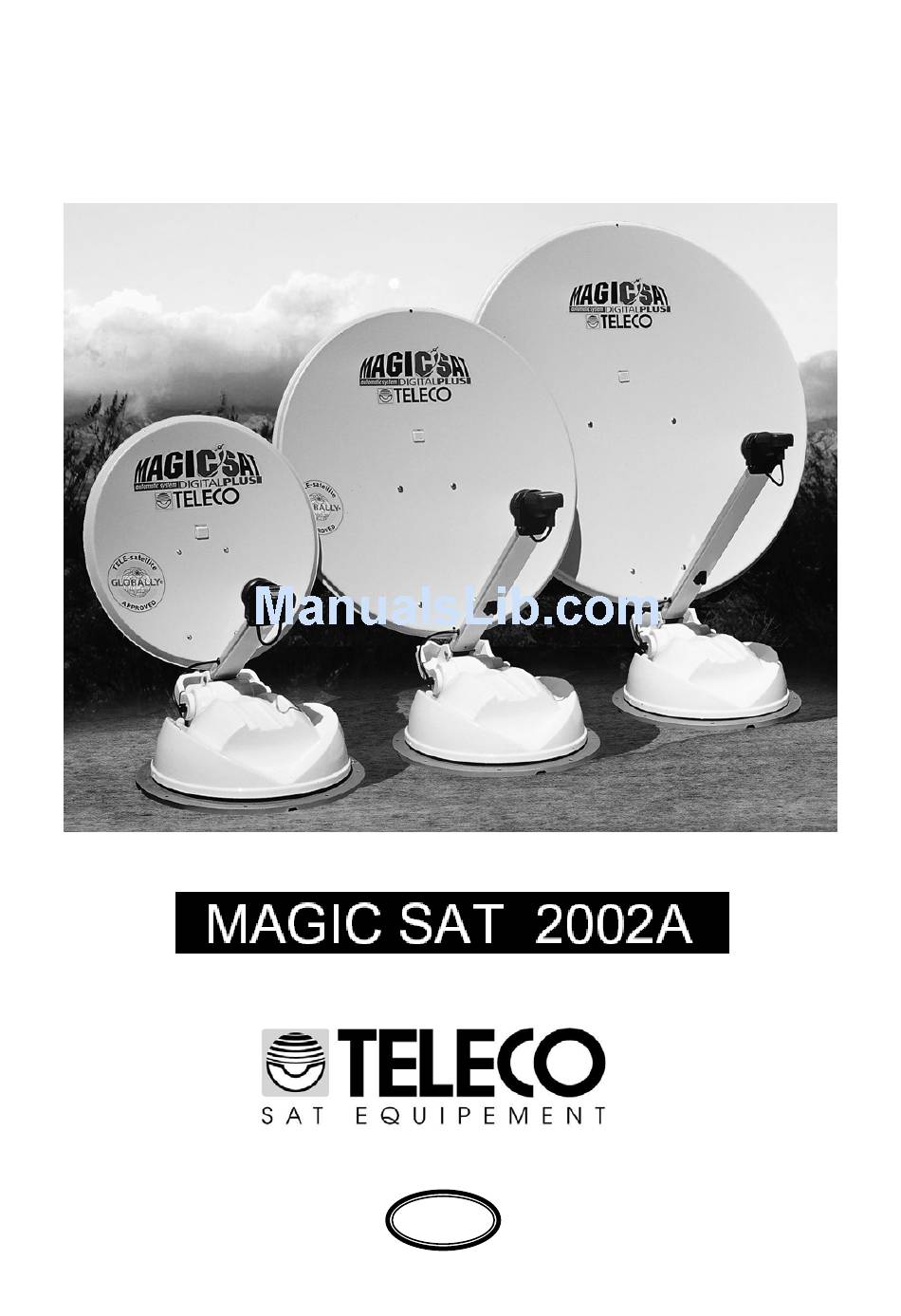

  • Page 1 V007 INSTALLATION GUIDE and user manual...

  • Page 2: Table Of Contents

    TECHNICAL FEATURES ................... 3 INSTALLATION TIPS ..................3 IMPORTANT NOTICE ..................4 ASSEMBLY INSTRUCTIONS................5 USER MANUAL: Magic Sat 2002A Operation System ........13 Satellite seeking .................... 13 Antenna lowering ..................13 Programme seeking ..................13 IMPORTANT INFORMATION for proper antenna pointing ......14 AUTOMATIC SATELLITE SEARCHING ............

  • Page 3: Technical Features

    V006 TECHNICAL FEATURES 1) Working voltage: 12 VDC ± 15% 2) Consumption SEARCH operation: less than 5 A RECEPTION with Dish not moving: 240 mA approx. 3) Automatic Searching Time: min 20 sec - max 5 min, depending on the place you are at and the battery status (if the battery is not fully charged, searching takes longer) INSTALLATION TIPS 1) The MIR remote control Extension must be installed in such a way as to make sure that...

  • Page 4: Important Notice

    5) Secure the dish to the mast and screw down the four supplied screws 6) Press the " DOWN " button in the remote control and lower the antenna 7) Disconnect the Control unit, the battery and install Magic Sat 2002A on the vehicle Pag. 4...

  • Page 5: Assembly Instructions

    V006 ASSEMBLY INSTRUCTIONS 1) Position the Control unit in a compartment near the TV set 2) Fix the MIR remote control Extension to a wall or your TV-set and connect it to the Control Unit. 3) On the roof of the vehicle, choose a free area large enough to allow the antenna to revolve (Fig.
  • Page 6 V006 Driving direction of the vehicle Driving direction of the vehicle 7) Clean the lower part of the BASE PLATE carefully, applying a layer of glue on the whole surface (e.g. SIKAFLEX) 8) Fasten the Base Plate to the roof (short side towards the driving direction of the vehicle) and fasten the 4 fastening nuts, applying silicone in the screw holes.
  • Page 7 V006 11) Install the OUTSIDE UNIT on the plate, bearing in mind that: a) The proper position must be as in ( Figure 9 ) b) Coat both the base plate and the driving unit bottom ( Fig. 10 ) with a thick layer of silicone to prevent any water infiltration.
  • Page 8 V006 Installation with lateral cable output 12) Fasten the OUTSIDE UNIT to the base plate. Lead both cables out of the 4 grooves and respect the positions shown on Figure 12. CAUTION: during this operation, do not pull either cable forcibly, as they could come out. 13) Connect both cables coming from the centre of the OUTSIDE UNIT to the extensions.
  • Page 9 V006 14) Fit the cables into a fairlead skintop to the point where the cables enter the vehicle. 15) Carefully seal the fairlead skintop where the cables pass into the vehicle to prevent water from coming in. Pag. 9...
  • Page 10 V006 CONNECTIONS 16) Connect the (motor) grey cable to the MOTOR UNIT Connector and the white (antenna) coaxial cable to the ANTENNA Connector in the Control 17) Connect the Digital Receiver (if any) to the DIGITAL RECEIVER connector. 18) Connect the MIR remote control Extension to the IR REMOTE connector in the Control Unit 19) Connect the BLACK power supply cable of the CONTROL UNIT to the NEGATIVE POLE of the vehicle 12 Volt battery, and the RED cable to the POSITIVE POLE + (...
  • Page 11 V006 21) Inside the Control Unit are: a) Control ELECTRONICS of the outdoor unit motors b) 500 Channel Analogue Receiver c) Automatic Switch with Input for Digital Receiver Pag. 11...
  • Page 12 The power supply cable must come directly from the battery and be of a minimum cross- section of 5 sq.mm. Only the Magic Sat 2002A must be connected to this cable; all the other devices must be connected to another The cable connecting the motor unit to the Magic Sat 2002A Control Unit must NEVER be cut for any reason whatsoever;...

  • Page 13: User Manual: Magic Sat 2002A Operation System

    Antenna lowering When Magic Sat 2002A is on, and the antenna is up, press the (yellow) DOWN button to bring the antenna down and switch the system off. Programme seeking Once the antenna has been pointed to the required satellite, radio and television stations can be received by simply shifting programs with the remote control.

  • Page 14: Important Information For Proper Antenna Pointing

    2) It is also important to know that satellites do not transmit with the same intensity throughout Europe, so if you are outside the reception area, your Magic Sat 2002A search might be unsuccessful. The reception areas for each Satellite can be found on the main magazines dealing in this line of business.

  • Page 15: Lowering The Antenna

    To bring the antenna to its horizontal position, just press your remote control DOWN button to switch both the Receiver and Magic Sat 2002A off. During the short time it takes for the antenna to come down, the following message will be displayed on the screen:...

  • Page 16: Additional Operations

    Control unit being switched off which would make satellite searching ineffective. 3) In the event that Magic Sat 2002A does not find the selected satellite, it will stop the antenna at the end of its stroke (either all the way out or all the way in) and show the message "...

  • Page 17: Changing Satellites During Search

    8 Choose the programme you want (e.g.: 1) At this point, the Magic Sat 2002A will start to search for the signal of the programme you have chosen. When the antenna points at a satellite which transmits this signal, it will stop...

  • Page 18: Safety Function

    3) In case of snow or ice actuating the Magic Sat 2002A free it in order to avoid wasting battery power in order to lift it.

  • Page 19: User's Manual: For The Analogue Receiver Integral With The Control Unit

    V006 If the antenna has stopped after performing pointing, but neither messages nor images appear on the screen: a) Is the SCART cable connected? b) If the TV set is not connected by a SCART cable, but is connected by a COAX cable to the TV socket, have you chosen the right programme on If the antenna does not move when you press the Red push-button, check the a) Are the RED and BLACK cables properly connected to the battery? The RED cable...

  • Page 20: Remote Control Magic Sat 2002A

    11) Connector to connect the MIR remote control extension (supplied). REMOTE CONTROL MAGIC SAT 2002A This remote control can be used to control all the functions of Magic Sat 2002A and the Analogue Receiver built in the Control Main functions Control Unit instrument is off, a horizontal line remains lit on the display.
  • Page 21 These two keys are used to select any possible MENU value for each Press key to store of the selected parameters. This button can be pressed to enter the antenna position, if Magic Sat 2002A sequential operation had been selected.

  • Page 22: On Screen Display

    V006 ON SCREEN DISPLAY Pag. 22...

  • Page 23: Subfunctions

    V006 • The ON SCREEN DISPLAY is used to display all the satellite receiver functions on the TV screen. By pressing the key, the TV screen will show • This is the MAIN MENU including all the functions that can be controlled on the receiver. The arrow is a pointer used to select the function to be modified.
  • Page 24 V006 oscillator departure from the rate value (9.75 Ghz for the low band, 10.6 Ghz for the high band). • This subfunction is used to set the modulator output channel (if installed). The available values range from channel 21 to channel 69. During testing, channel 21 is present. •...
  • Page 25 V006 • Select either LNB1 or LNB2 with the corresponding values on display. LNB1 Low band UNIVERSAL LNB (10.7 - 11.7 GHz) LNB2 High band UNIVERSAL LNB (11.7 - 12.75 Ghz) with 22 Khz tone • This shows the selected program frequency transmitted from the satellite. Which can be modified by directly entering a figure through the digital keypad or by pressing the keys •...
  • Page 26 V006 • Enables to return to Program Menu or ADR (for ADR model only). • Position the arrow to indicate Audio and press the key to obtain the following screen display • Either Stereo or Mono can be selected • This displays the audio frequency of the selected program, which can be changed from 5.00 to 9.50 MHz by 10 KHz steps.
  • Page 27 V006 • This function enables to associate the name of the program being viewed with the name of the transmitting satellite. Use the arrow keys to select the required satellite. After returning to the Program Menu select: 3) Clock • Position the arrow to indicate Clock and press the key to obtain the following screen display:...
  • Page 28 V006 • An event number from 1 to 8 is selected using the keys • This is used to select the following event types with the keys Not active: storage not Daily: This is used to program receiver power on/off Every Day at the selected time. Weekly: This is used to program receiver power on/off Every Week on the selected day and time.
  • Page 29 4) Deletes Sat position a) Press this button to delete all the satellite positions that Magic Sat 2002A had stored during previous searching. 5) PROTECTED MENUS YES This function is factory-preset to (YES) to protect a few MENU functions against un- recommended modifications by inexperienced users.

  • Page 30: Connecting With Digitali Receiver

    COAX COAX Switch on your TV set and Magic Sat 2002A control unit, making sure that the Falcon 12 receiver is off (on stand-by). Start your satellite search with your automatic antenna, after search completion press the VCR button in your TELECO remote control, the display will read VCR.

  • Page 31: Connecting With Mikro Ci

    COAX COAX Switch on your TV set and Magic Sat 2002A control unit, making sure that the Mikro Digital FTA receiver is off (on stand-by). Start your satellite search with your automatic antenna, after search completion press the VCR button in your TELECO remote control, the display will read VCR.

  • Page 32: Connecting With Mikro Fta

    COAX Switch on your TV set and Magic Sat 2002A control unit, making sure that the Mikro Digital FTA receiver is off (on stand-by). Start your satellite search with your automatic antenna, after search completion press the VCR button in your TELECO remote control, the display will read VCR.

  • Page 33: Specifications

    V006 SPECIFICATIONS VIDEO Input frequency 920 to 2150 MHz Impedance 75 Ohm C/N static threshold < 6 dB Input level -65 dBm / -30 dBm IF bandwidth 27 MHz Selectable Offset - 7 to + 7 Mhz by 1 Mhz steps AUDIO Audio frequencies 5 to 9.0 MHz...
  • Page 34 V006 61 CNBC EUROPE 120 TRT - INT CHANNELS LIST 62 BLOOMBERG 121 CANAL+HORIZ. 63 NATIONAL GEO 122 ANN ARAB NEWS ASTRA 19 E 64 EUROSPORT 123 MBC 1 ADR 65 ---- 124 EDTV 2 ZDF 66 ---- 125 ERT SAT 3 SAT1 67 ---- 126 JAAM-E-JAM TV...
  • Page 35 V006 176 FEED 236 ..297 MDR INFO ADR 177 FEED 237 ..298 MDR KULTUR ADR 178 FEED 238 ..299 MDR LIFE ADR 179 FEED 239 ..300 MDR SPUTNIK ADR 180 FEED 240 ABU DHABI TV 301 MUSIGWALLE ADR 181 FEED 241 ..
  • Page 36 MagicSat 2002A (Tav. 1 - Vers. 10 del 07/10/2004)
  • Page 37 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 03676 N.1 Disco parabola D=650mm Antenne parabole D=650 mm Schotel antenne D=650 mm Parabolic antenna D=650 mm Parabolspiegel D=650 mm Disco parabola D=650 mm 07364 N.1 Disco parabola D=850mm Antenne parabole D=850 mm Schotel antenne D=850 mm Parabolic antenna D=850 mm PARABOLSPIEGEL D=850 mm Disco parabola D=850mm...
  • Page 38 MagicSat 2002A (Tav. 2 - Vers. 10 del 07/10/2004)
  • Page 39 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 06037 N.2 Guarnizione laterale Joint lateral Zijafdichting Side gasket SEITLICHE DICHTUNG Junta lateral 04761 N.2 Microinterruttore a tenuta stagna Microcontact etanche Microschakelaar in stor- en waterdichte uit Waterproof microswitch MIKROSCHALTER, DICHT Microinterruptor estanco 04947 N.2 Motoriduttore Motoreducteur Motorreductor...
  • Page 40 MagicSat 2002A (Tav. 3 - Vers. 10 del 07/10/2004)
  • Page 41 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 04437 N.1 Cornice frontale piccola Cadre partie av. petite Kleine frontlijst Small front frame Frontrahmen, klein Marco frontal pequeño 04274 N.1 Serie tasti Jeu de touches Aantal toetsen Set of keys Serie Tasten Serie teclas 04269 N.1 Frontale piccolo blu Partie Av.
  • Page 42 MagicSat 2002A (Tav. 4 - Vers. 10 del 07/10/2004)
  • Page 43 Pos Code Q.tà Descrizione/Description Dèsignation/Bezeichnung Denomination/Descripcion 08998 N.1 Cavo coassiale 2mt con connet. F/F Cable coaxial 2 m avec connecteur F/F Coaxkabel 2 m inclusief F/F-connector 2 m coax cable F/F.connector KOAXIALKABEL 2 m MIT F-FVERBINDER Cable coaxial 2mt con conect F/F 03598 N.1 Guaina termorestringente Gaine thermoretractible...
  • Page 44 Händler und Info in Ihrer Nähe: 01805 006857 Service für Teleco Anlagen in Deutschland: 09001000690 Foto e disegni non contrattuali - Les photos et les dessins ne sont donnés qu’à titre indicatif. We reserve the right to make technical changes without prior notice - Fotos und Zeichnungen nicht vertraglich.
