Summary of Contents for Teleco Motostat digimatic 65

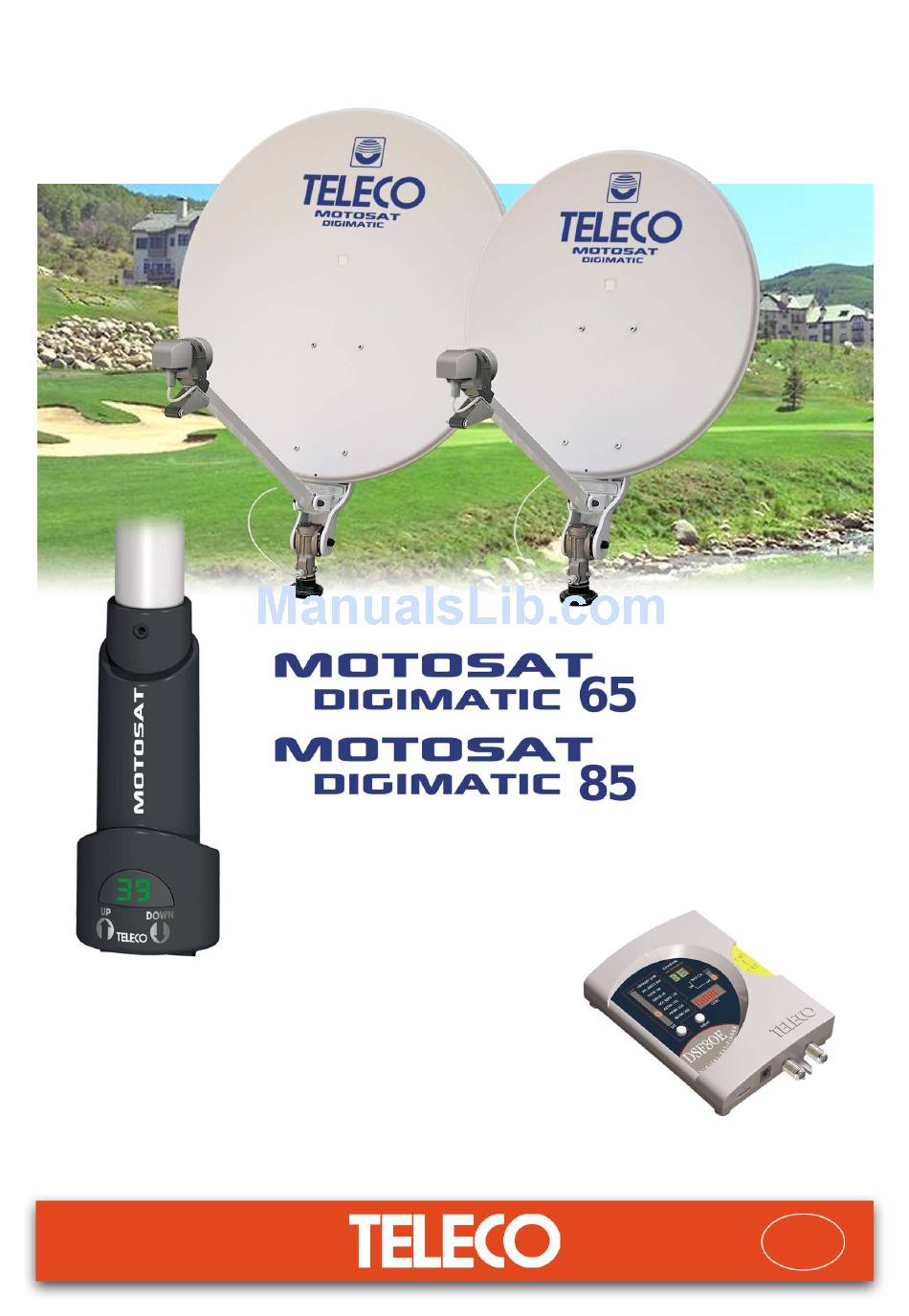

- Page 1 INSTALLATION GUIDE AND USER MANUAL...
- Page 2 Web site: www.telecogroup.com Technical attendance: 899.899.856 TELECO .p.a. declines all responsibility for any errors contained in this manual. All the contained information are up to the dates of printing and of the above-mentioned software revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by...
-
Page 3: Installation Instructions
Installation instructions Caution: Mount the antenna away from the vehicle roof edge to avoid overhanding the roof line when travelling. The MotoSat antenna must be installed near a vertical wall where the wall outlet can be fitted Set the drilling jig in place. Drill in the middle of the jig (page 22) Using a dia. - Page 4 Insert the mast roof mounting bracket in Fasten the ring nut using self-tapping the dia. 42 hole bored in the roof, making screws. Place the rubber gasket over the sure you apply a layer of silicone under ring nut. ( Screws not supplied ) the ring nut.
- Page 5 Spread a thin film of Vaseline inside the Tight the locking ring nut seal and introduce the mast This mast locking device must be screwed tight every time you wish to secure the antenna in the desired position. To turn or lift the mast, loosen this ring nut.
- Page 6 Engage Motosat in the antenna support Introduce the coaxial cable in the special tube until the tube holes are aligned with slot (A) and lead it out of rear bottom side the Motosat holes. of Motosat (B) Fix Motosat to the antenna support tube with the special screws.
- Page 7 Press the UP button until a sequence of Press the DOWN button until the beep sounds is obtained. display reads OF. Fasten the antenna to the arm as shown in the figure. The antenna becomes automatically positioned to facilitate installation (the display reading is 37°).
- Page 8 Check that the antenna has been lowered to the required travelling position (fig.24) and glue the steel plate below the LNB shim to the roof with jointing compound or double-sided adhesive tape. Make sure that the antenna is exactly in its stowed position.
- Page 9 CONNECTIONS DSF80E DSF80E is a device designed to quickly find required DIGITAL satellites according to a manual dish pointing system. The 8 most popular satellites used in Europe are stored in the system memory: Astra 28E, Astra23E, Astra19E, Hotbird 13E, Eurobird 9E, Thor 1W, Atlantic Bird 5W and Hispsat 30W.
- Page 10 1) Connect the coaxial cable coming from the mast handle to the ANT connector of the DSF80E device 2) Plug the REC connector of the DSF80 in the LNB connector of your satellite receiver via the supplied coaxial cable. 3) Connect the 12Vdc input cable to the 12Vdc connector of the DSF80E device. Plug the other end of the cable into the vehicle battery or a 12Vdc power outlet.
- Page 11 Instructions for DSF80E initial set-up with Voyager systems Set-up operations should only be carried out once upon system installation. After completing all the required connections, perform inclinometer "ADJUSTMENT" to the vehicle on which it is installed. 1) Check the Adjustment Table to identify the correct dish angle for the selected satellite pointing (e.g.
- Page 12 Country Town HOT BIRD ASTRA ATLANTIC 13° EST 19° EST BIRD 3 5° WEST GIBRALTAR GREECE Athens Iraklion Patras Thessalonica HUNGARY Budapest Pecs ICELAND Reykjavik ITALY Brindisi Cagliari Firenze Milano Napoli Palermo Roma Venezia LYBIA Tripoli MAROCCO Casablanca Marrakech Tangiers NETHERLANDS Amsterdam Eindhoven Rotterdam...
- Page 13 INSTRUCTIONS FOR USE 1) Switch on and prepare the SAT receiver and the TV set for reception following the instructions of their respective manufacturers. 2) It is critical to make sure that there are no obstacles (e.g. houses, trees etc.) between the antenna and the satellite southwards.
- Page 14 Turn the dish SOUTHWARDS until DSF80E emits a continuous "BEEP" sound. Wait for the SAT OK LED to light up, confirming that the pointed satellite is the required one. Optimise pointing by slowly adjusting both dish elevation and dish rotation until the maximum number of burning LEDs is obtained on the...
- Page 15 Switch DSF80E off by setting its switch to the position "OFF" If the power switch is not set to OFF, no signal will reach the satellite receiver and not TV picture can be viewed. Important information for proper antenna tracking Before performing antenna tracking operation, make sure you have positioned your vehicle so that the view towards the South (where Satellite signals come from) is free from any nearby obstacle (trees, houses, etc.).
-
Page 16: Display Messages
DISPLAY MESSAGES DISPLAY “OF” With the antenna up, the display will show The antenna is folded. This message is the corresponding antenna elevation. The elevation reading may be not accurate accompanied by a prolonged beep sound. because of poor levelling of the parked vehicle. - Page 17 ANTENNA FOLDING To lower the antenna, hold down the If the green safety cable is connected to “DOWN” button until the display reads the vehicle starter key (fig. XX) and the “OF” followed by a prolonged beep sound. vehicle is started with the antenna still up, MotoSat will warn the user of the impending danger with a long sequence of beep sounds.
- Page 18 LNB rotation for ideal reception in Europe’s extreme (South-West or South-East) areas Remember that the outside converter (a.k.a. LNB) has its own assembly position which must be complied with. Otherwise you will not receive any signal. The pre-set mounting position for the LNB is along the centre line of the disk (fig.
- Page 19 Dish elevation maps To correctly point the dish towards your required satellite, it is very important to tilt the dish to the exact angle. Check your position on the map, then set the dish elevation figure in degrees according to the figure on the required satellite map. The grey sections in the various maps identify the geographical areas in which LNB adjustment may be necessary.
- Page 21 Pos. Code Description Q.ty 10487 Parabolic antenna D=650 mm Pos. Code Description Q.ty 10488 Parabolic antenna D=850 mm 10425 Screw M5X10 UNI 7687 650 06132 Arm rest 10910 Screw M6X12 UNI 7687 850 06076 Nylon bush 03685 Self-locking nut M5 UNI 7474 650 08628 LNB Plastic Kombi-type support 03684...
- Page 22 Pos. Code Description Q.ty 05799 Arm locking dowel 07446 Arm locking screw 11200 Reduction gear 11805 Trilobed screws 5X15 03244 OR Gasket 07956 Fairlead skintop PG9 11524 gasket 11523 flange for pass tube 11526 conic inclination adapter 1,0 11525 Pipe lead 11528 conic ring nut 11527...
-
Page 23: Conformity Certificate
1:1 mounting position scale CONFORMITY CERTIFICATE The manifacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: MOTOSAT DIGIMATIC 65 - MOTOSAT DIGIMATIC 85 which are the subject of this certificate, conform to the following norms: EN 60065: 2002 - EN 55013: 2001 + A1: 2003 - EN 61000 –... - Page 24 06/10/2014...
