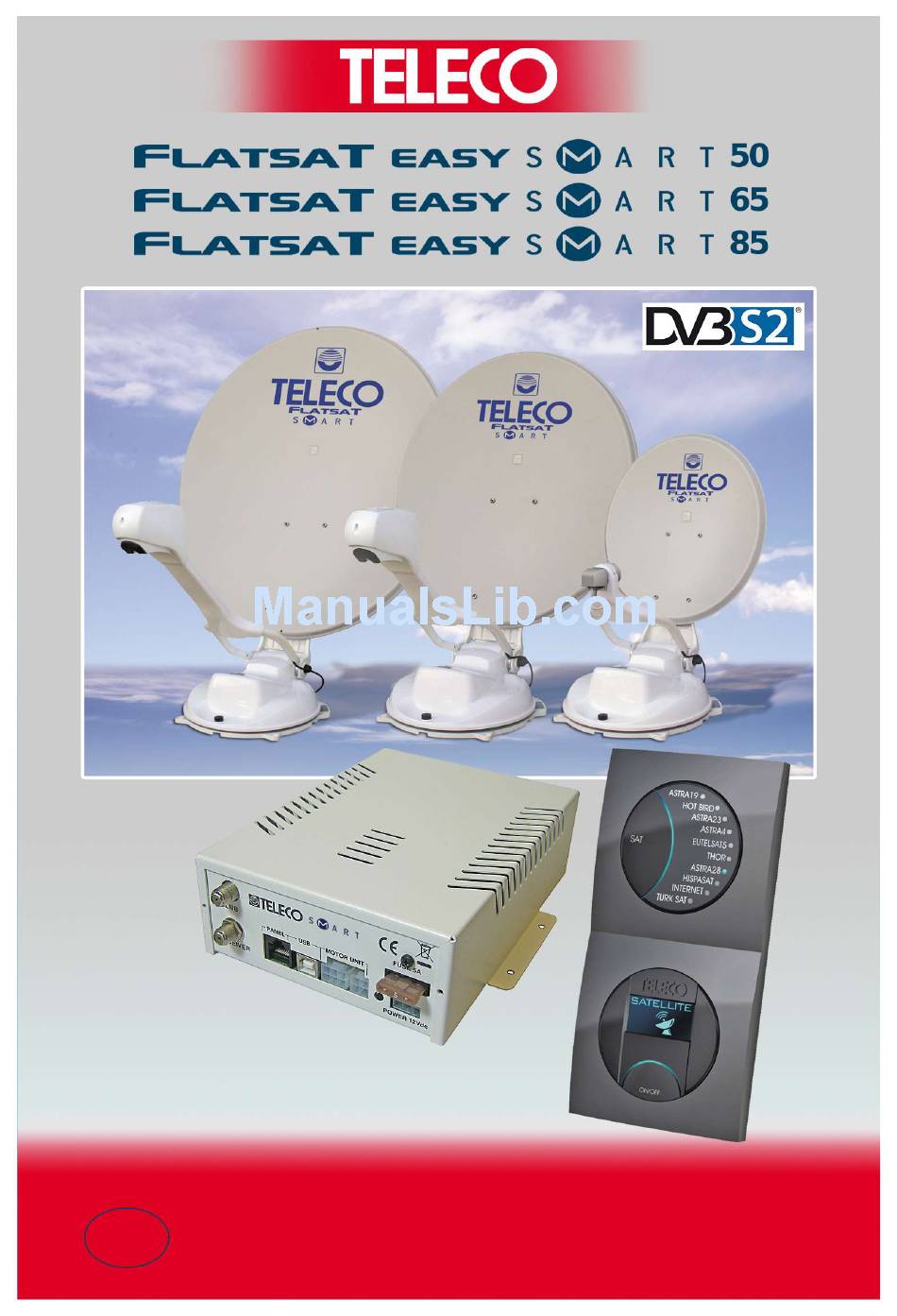

- Page 1 installation guide and user manual...
-
Page 2: Information
Web site: www.telecogroup.com Technical attendance: 899.899.856 TELECO .p.a. declines all responsibility for any errors contained in this manual. All the contained information are up to the dates of printing and of the above-mentioned software revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by... -
Page 3: Table Of Contents
TABLE OF CONTENTS Page Information..........................1 List of accessories .........................3 Installation of dish on motor unit....................4 Assembly instructions ......................5 Control Unit Installation......................8 Connections...........................9 LNB rotation.........................10 The Smart function ......................13 Troubleshooting ........................17 Technical specifications .......................17 Spare Parts Table ........................18 Recycling: with a view to reducing disposal of waste electrical and electronic equipment as much as possible, do not throw out this end of life appliance together with other unsorted municipal waste, but make use of a recycling centre. -
Page 4: List Of Accessories
List of accessories Flat Sat Easy Smart is delivered inside a cardboard case that has been specially made to protect it from knocks and pressure. The following accessories are supplied: 1 External motor-driven unit 2 50 - 65 - 85 cm dish 3 Universal LNB 3 SKEW (OPTIONAL) 4 Control unit... -
Page 5: Installation Of Dish On Motor Unit
Important notice Flat Sat Easy Smart is packaged in two separate cartons for transport reasons: a) the first package contains the driving unit with all the cables, and the Control Unit. b) the second package only contains the dish. • It is important to check that the dish has not been damaged during transport when the package is opened. -
Page 6: Assembly Instructions
Assembly instructions 1) On the roof of the vehicle, choose a free area large enough to allow the antenna to revolve (Fig. 2). Driving direction of the vehicle Flat Sat Easy Smart 50 - 90 cm Flat Sat Easy Smart 65 - 140 cm Flat Sat Easy Smart 85 - 160 cm 2) Clean the roof carefully in the area the OUTSIDE UNIT is to be installed in. - Page 7 When they are present, remove the transparent films from the BASE PLATE (Fig. 5). 4) Clean the lower part of the BASE PLATE carefully, applying a layer of glue on the whole surface (e.g. SIKAFLEX). 5) Fasten the BASE PLATE to the roof (short side towards the vehicle driving direction). 6) Apply a layer of silicone all around the BASE PLATE in order to make it completely waterproof (Fig.
- Page 8 2) Fasten the external powered unit to the four stud bolts of the plate, using the four nuts supplied with the equipment. Caution: to ensure ideal nut tightening and prevent possible pin breaks, tighten the nut with a torque wrench set to 8 Newtons/metre Connection with extension WARNING The Grey and Black cables coming out of the Outside Unit are generally long enough to allow for connection to the Control Unit.
-
Page 9: Control Unit Installation
Control Unit Installation 1) Position the Control Unit in an easy accessible, ventilated compartment. WARNING: Do not install the Control Unit in areas where liquids can be spilled, since this could cause irreparable damage. Do not install the Control Unit in very small, unventilated compartments, since overheating could compromise its functionality and render the warranty null and void. -
Page 10: Connections
Connections 1) Connect the grey cable (motors) to the MOTOR UNIT connector and the Black coaxial cable (antenna) to the LNB connector of the Control Unit. 2) Connect the Receiver or the TV with Receiver to the SAT RECEIVER connector. You can connect any satellite receiver. -
Page 11: Lnb Rotation
WARNING This technical note is to call the attention of the installation personnel to certain details of Flat Sat Easy Smart installation. During installation, you must take the following precautions: The power supply cable must directly come from the battery and must have no junctions. Minimum cross section of the cable is 2,5 mm . - Page 12 LNB tilt adjustment 1) Remove the LNB protective cover by screwing out the 3 screws 2) Loosen the screws on the LNB locking U-bolt 3) Turn in the Clockwise (West) or Anti-clockwise (South-East) direction 4) Lock the LNB again by screwing down the screws 5) Close back the LNB protective cover and screw...
- Page 13 Tips on the best use of Flat Sat Easy Smart When you park your vehicle, make sure that: 1) No obstacle (for example trees) is too near your antenna, preventing it from moving freely. No metal or glass wall is very near (about 5 m) the antenna, since this would act as a mirror for satellite signals and could induce the antenna to stop towards it.
-
Page 14: The Smart Function
To use the “Smart” function the Flat Sat Easy Smart must be used in conjunction with one of the Teleco TY2/19D, TY2/22D, TY2/24 or TY2/32 televisions with incorporated satellite receiver; this allows the entire system to be piloted simply using just the TV remote control. - Page 15 Switching on the Flat Sat Easy Smart First switch on the TY2 TV and then the Flat Sat Easy Smart system. If the Control Panel is in standby press the ON/OFF key (1) to activate it. The backlighting comes on and the Display shows the camper icon with the antenna closed.
- Page 16 Selecting satellite TV programmes The Flat Sat Easy Smart associates each programme, saved on the TV, with the satellite that transmits it and therefore every time the user changes channel with the remote control the system immediately checks which satellite is transmitting the programme and automatically positions the antenna accordingly;...
- Page 17 Flat Sat Easy Smart operation with Teleco and other receivers The Flat Sat Easy Smart is also compatible with the TELECO Satellite Receiver model FORCE HD CI+D and with the official receivers of the M7 Group broadcasters: CanalDigitaal, TV Vlaanderen, HD Austria, Skylink, TéléSAT Belgium and Luxemburg.
-
Page 18: Troubleshooting
Troubleshooting • If the Flat Sat Easy Smart has not found the satellite after a complete search, check the following: a) Is the view towards the South free from any obstacle? b) Is the place you are at within the reception area of the satellite you have chosen? c) Is the cable connecting the LNB to the antenna firmly fastened? It could have been ripped off or come loose because of contact with an unexpected obstacle. -
Page 19: Spare Parts Table
Flat Sat Easy Smart 50... - Page 20 Flat Sat Easy Smart 50 Code Q.tà Description 11491 N.1 Dish support mast - 50 06681 N.1 Parabolic antenna D=500 mm 15531 N.1 Flat Sat Easy Smart 50 Dish sticker 03685 N.4 Self-locking nut M5 UNI7474 10425 N.4 Screw M5x10 UNI 7687 INOX 10533 N.1 Engine cover 10442 N.2 Self-locking rivet SR-5105-W 11008 N.1 Hole grommet...
- Page 21 Flat Sat Easy Smart 65 - 85...
- Page 22 Flat Sat Easy Smart 65 - 85 Code Q.tà Description 11440 N.1 Dish support mast - 65/85 03676 N.1 Parabolic antenna D=650 mm 07364 N.1 Parabolic antenna D=850 mm 15531 N.1 Flat Sat Easy Smart 65 - 85 Dish sticker 03684 N.4 Self-locking nut M6 UNI 7474 10910 N.4 Stainless stell screw M6X12 10533 N.1 Engine cover...
- Page 24 Tav. 2 Code Q.tà Description 11161 Wiper motor 04761 Waterproof microswitch 05086 Screw M3x20 galvanized 06817 Flat washer D=3 UNI6592 galvanized 11088 Screw M4x8 galvanized 12945 Connector strip 05807 mt. 3,6 Coax cable RG 58 12294 10-core 2,5mt Motor cable w/connector 12699 FF13 double female jack 15077...
- Page 25 Code Q.tà Description Code Q.tà Description 14897 Control unit lid 09705 5A Fuse 14896 Control unit bottom 01458 Support 09835 Black rubber foot 11742 PATCH UTP Cable 15860 Control panel 09318 Power supply cable 15534 T0215 board...
- Page 26 Code Q.tà Description 05950 3 m coax cable F/F.connector 03598 Shrink-wrap sheath 03597 Shrink-wrap sheath 09300 10-core 3mt engine unit cont. cable w/connector 10969 Cable cover abs 13190 PG completo di gommino 2 cavi 07883 9 m coax cable F/F.connector 08998 2 m coax cable F/F.connector 07294...
- Page 27 CONFORMITY CERTIFICATE The manifacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: Flat Sat Easy Smart 50 Flat Sat Easy Smart 65 Flat Sat Easy Smart 85 which are the subject of this certificate, conform to the following norms:...
