Summary of Contents for Teleco Motosat65

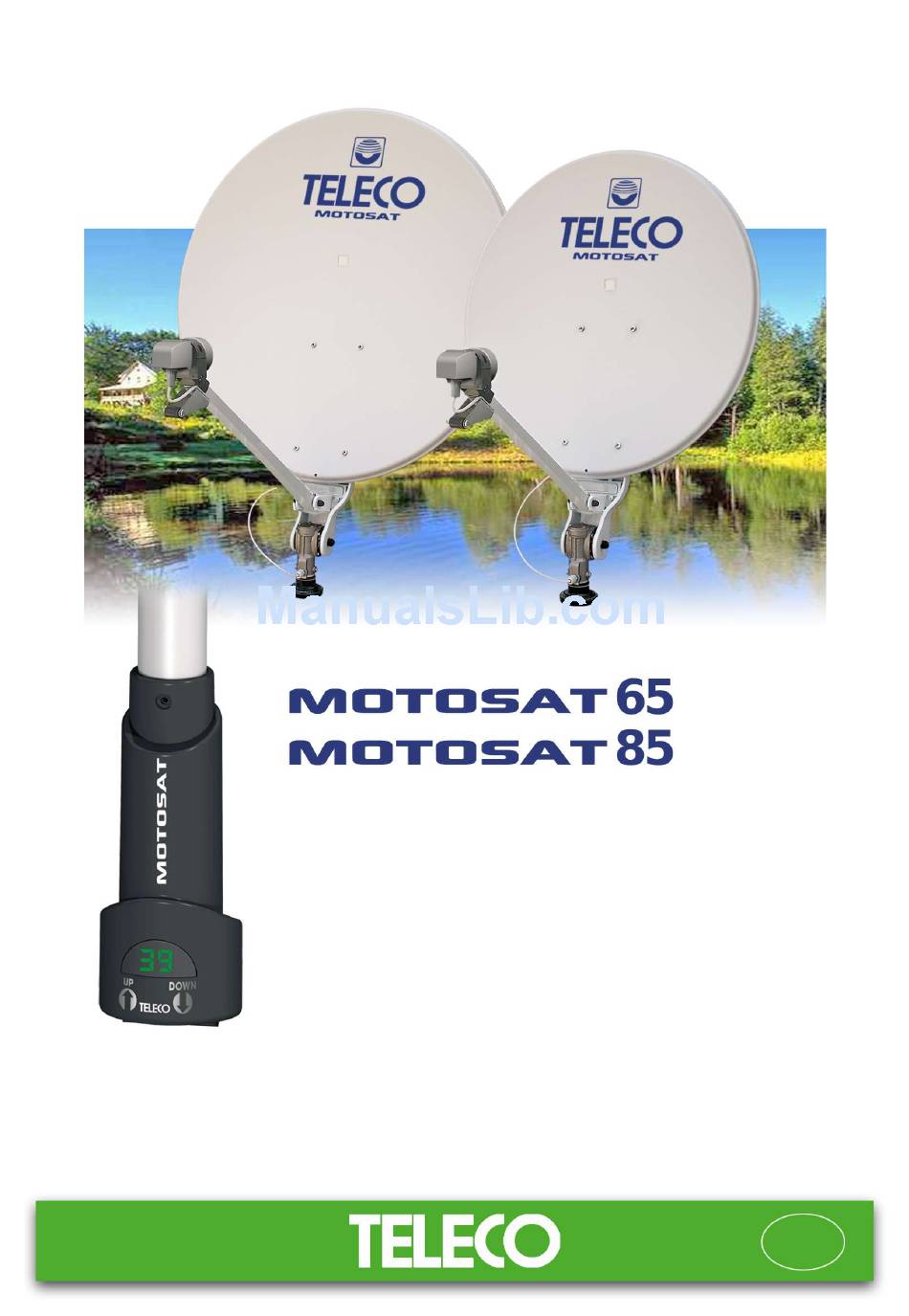

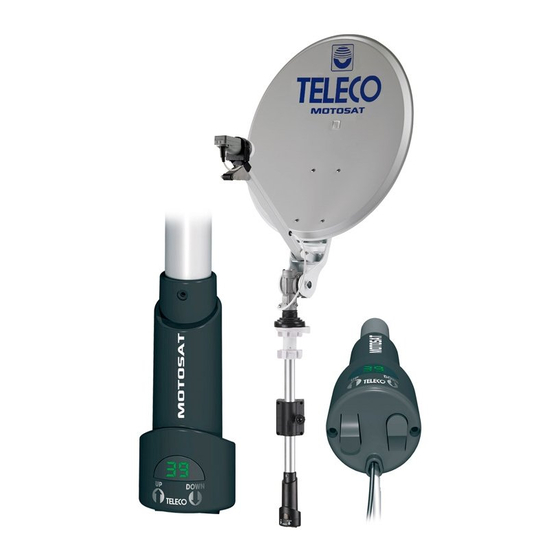

- Page 1 INSTALLATION GUIDE AND USER MANUAL...
- Page 2 Web site: www.telecogroup.com Technical attendance: 899.899.856 TELECO .p.a. declines all responsibility for any errors contained in this manual. All the contained information are up to the dates of printing and of the above-mentioned software revisions. TELECO .p.a. reserves the right to introduce any modification made necessary by...
-
Page 3: Installation Instructions
Installation instructions Caution: Mount the antenna away from the vehicle roof edge to avoid overhanding the roof line when travelling. The Motosat antenna must be installed near a vertical wall where the wall outlet can be fitted Set the drilling jig in place. Drill in the middle of the jig (page 22) Using a dia. - Page 4 Insert the mast roof mounting bracket in Fasten the ring nut using self-tapping the dia. 42 hole bored in the roof, making screws. Place the rubber gasket over the sure you apply a layer of silicone under ring nut. ( Screws not supplied ) the ring nut.
- Page 5 Spread a thin film of Vaseline inside the Tight the locking ring nut seal and introduce the mast This mast locking device must be screwed tight every time you wish to secure the antenna in the desired position. To turn or lift the mast, loosen this ring nut.
- Page 6 Engage Motosat in the antenna support Introduce the coaxial cable in the special tube until the tube holes are aligned with slot (A) and lead it out of rear bottom side the Motosat holes. of Motosat (B) Fix Motosat to the antenna support tube with the special screws.
- Page 7 Press the UP button until a sequence of Press the DOWN button until the beep sounds is obtained. display reads OF. Fasten the antenna to the arm as shown in the figure. The antenna becomes automatically positioned to facilitate installation (the display reading is 37°).
- Page 8 Check that the antenna has been lowered to the required travelling position (fig.24) and glue the steel plate below the LNB shim to the roof with jointing compound or double-sided adhesive tape. Make sure that the antenna is exactly in its stowed position.
- Page 9 Important information for proper antenna tracking Before performing antenna tracking operation, make sure you have positioned your vehicle so that the view towards the South (where Satellite signals come from) is free from any nearby obstacle (trees, houses, etc.). This way, the antenna will be free to receive signals coming from the satellite.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 1) Turn on the SAT receiver and TV set following the instructions provided by their respective manufacturers. 2) Hold down the “UP” button until 3 beep sounds are emitted by MotoSat. The antenna will go up to the latest stored position setting MotoSat will automatically store the latest antenna elevation value to facilitate pointing operations. - Page 11 ANTENNA FOLDING To lower the antenna, hold down the If the green safety cable is connected to “DOWN” button until the display reads the vehicle starter key (fig. 17) and the “OF” followed by a prolonged beep sound. vehicle is started with the antenna still up, MotoSat will warn the user of the impending danger with a long sequence of beep sounds.
-
Page 12: Display Messages
DISPLAY MESSAGES With the antenna up, the display will show DISPLAY “OF” the corresponding antenna elevation. The The antenna is folded. This message is accompanied by a prolonged beep sound. elevation reading may be not accurate because of poor levelling of the parked vehicle. - Page 13 Before starting the vehicle, make sure you have brought down the antenna to its standby position and tightened the knob hard Failure to comply with these conditions may result in product degradation which the manufacturer cannot be held responsible for. 1) It is recommended not to use the antenna under strong wind conditions (80 km/h).
- Page 14 LNB rotation for ideal reception in Europe’s extreme (South-West or South-East) areas Remember that the outside converter (a.k.a. LNB) has its own assembly position which must be complied with. Otherwise you will not receive any signal. The pre-set mounting position for the LNB is along the centre line of the disk (fig.
- Page 15 Dish elevation maps To correctly point the dish towards your required satellite, it is very important to tilt the dish to the exact angle. Check your position on the map, then set the dish elevation figure in degrees according to the figure on the required satellite map. The grey sections in the various maps identify the geographical areas in which LNB adjustment may be necessary.
- Page 18 MotoSat elevation to locate satellites in Europe Country Town HOT BIRD ASTRA ATLANTIC TURKSAT ARABSAT 13° EST 19° EST BIRD 3 42° EST 26° EST 5° WEST ALBANIA Tirana ALGERIA Algiers Costantine Oran AUSTRIA Innsbruck Salzburg Vienna BALEARICS Palma BELGIUM Antwerp Brussels Gand...
- Page 19 MotoSat elevation to locate satellites in Europe Country Town HOT BIRD ASTRA ATLANTIC TURKSAT ARABSAT 13° EST 19° EST BIRD 3 42° EST 26° EST 5° WEST Porto ROMANIA Bucarest Timisoara RUSSIA St. Petersburg 20 Moscow SLOVAKIA Bratislava Kosice SPAIN Barcelona Bilbao Carthagene...
- Page 20 Pos. Code Description Q.ty 10487 Parabolic antenna D=650 mm 10488 Parabolic antenna D=850 mm 10425 Screw M5X10 UNI 7687 (650) 10910 Screw M6X12 UNI 7687 (850) 03685 Self-locking nut M5 UNI 7474 (650) 03684 Self-locking nut M6 UNI 7474 (850) 10998 Support dish arm 850 10757...
- Page 21 Pos. Code Description Q.ty 05799 Arm locking dowel 07446 Arm locking screw 11200 Reduction gear 11805 Trilobed screws 5X15 03244 OR Gasket 07956 Fairlead skintop PG9 11524 gasket 11523 flange for pass tube 11526 conic inclination adapter 1,0 11525 Pipe lead 11528 conic ring nut 11527...
-
Page 22: Conformity Certificate
CONFORMITY CERTIFICATE The manifacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: MOTOSAT 65 - MOTOSAT 55 which are the subject of this certificate, conform to the following norms:... - Page 23 Mounting wall Dampen and locate on the mounting position Cut-out drawing in 1:1 scale Recycling: with a view to reducing disposal of waste electrical and electronic equipment as much as possible, do not throw out this end of life appliance together with other unsorted municipal waste, but make use of a recycling centre.
- Page 24 06/10/2014...
