Select RGBS

The menu allows you to assign one of the iScan Duo's two component inputs to RGBS format,
which is available with the SCART connector. The SCART connector is used widely in countries
with PAL/SECAM video standards.
Select Component 1 or Component 2 to select the input
Select Enable to assign the selected input to RGBS format.
Note: When the RGBS mode is selected, the Y Pb Pr connectors are mapped to G B R. The Video
input connector next to the Y Pb Pr connector becomes the 'S' input. In other words, when RGBS
mode is selected, one of the Composite Video inputs becomes unavailable.

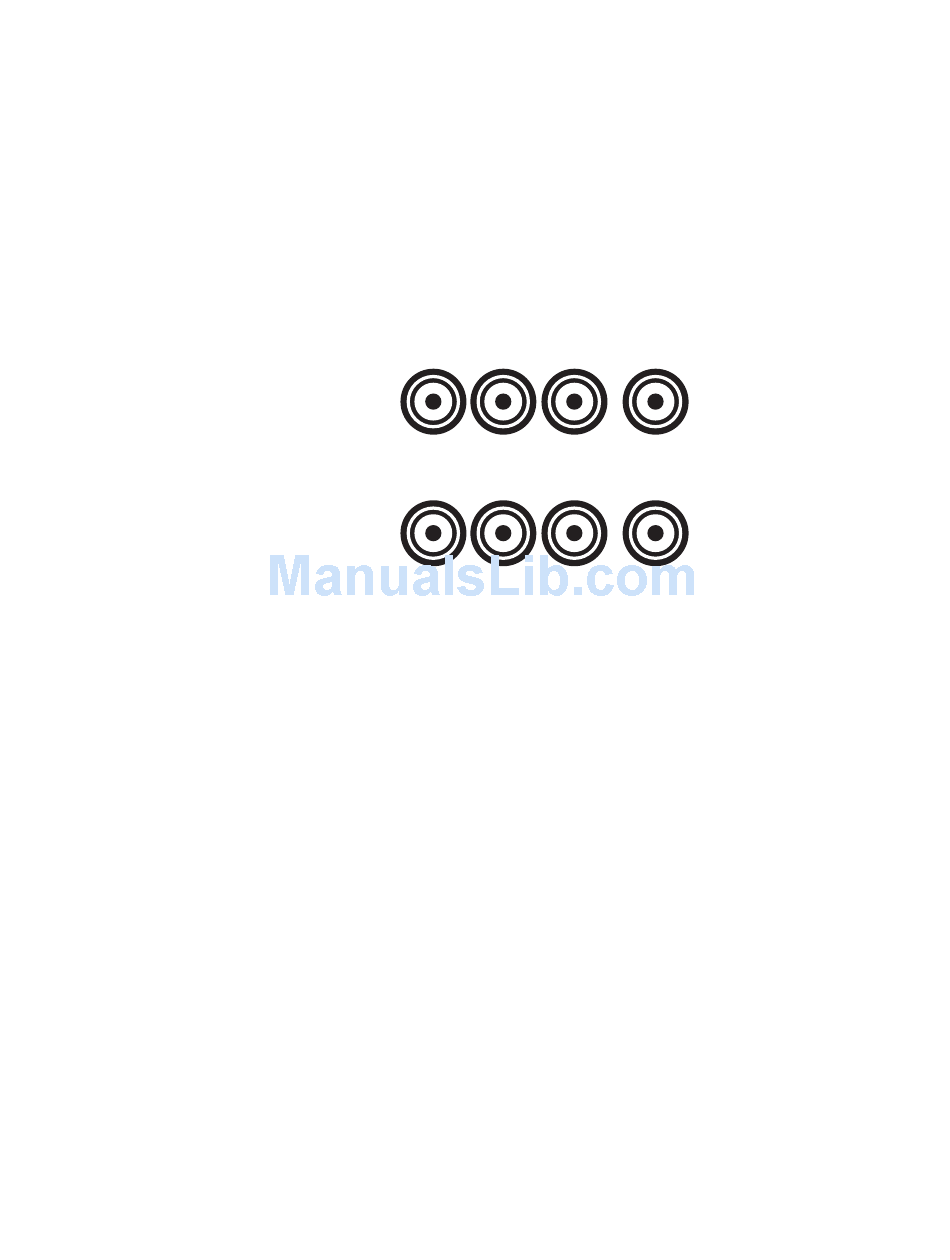

For example,
Component 1 input – RGBS mode disabled
Component 1 input – RGBS mode enabled
•

LED Brightness

This menu controls the brightness of the power LED and Front Panel Display (FPD). There are
4 levels of control. '0' turns off both LED and FPD. '3' gives the maximum brightness off
both LED and FPD.
•

Factory Defaults

Factory Defaults is a quick way to "undo" any settings that have been made, and restore the
iScan Duo's original default settings.
Video Output
Picture Controls Restores default settings to Picture Controls menu items
Input Names
All Defaults
•

Update Firmware

Update Firmware is used when you want to update the iScan Duo's firmware.
Steps to update firmware:
— Download the new firmware ('.zip' file) from DVDO website.
— Unzip to file to extract the new firmware with a '.abt' extension.
— Note its location on your PC hard-drive.
— Use mini-USB to USB cable supplied with the iScan Duo.
— Plug the smaller connector on the cable to the mini-USB port at the back of the
iScan Duo.
— Plug the larger connector to your PC.
— Select YES to confirm that you want to update firmware.
Y Pb Pr
G B R
Restores video format setting to Auto. In Auto mode, the iScan Duo
will automatically communicate with your display and output your
display's preferred format.
Restores default names for video inputs.
Restores all defaults.
