DVDO EDGE

High Definition Video Processor & Hub

Setup Guide

Version 1.0

Need help?

Do you have a question about the High Definition Video Processor & Hub Edge and is the answer not in the manual?

Questions and answers

Summary of Contents for DVDO High Definition Video Processor & Hub Edge

Page 1: Setup Guide

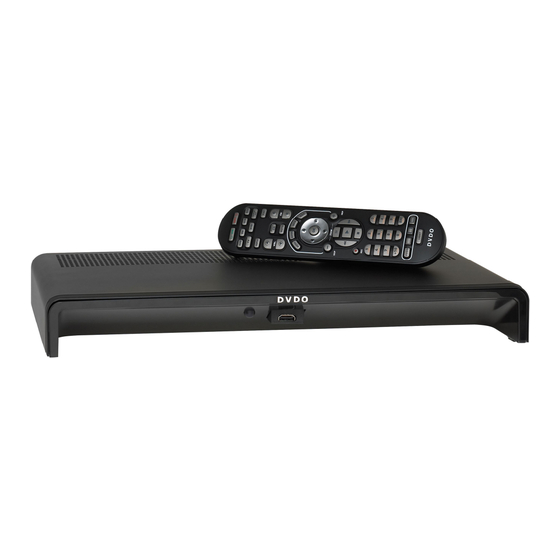

DVDO EDGE High Definition Video Processor & Hub Setup Guide Version 1.0...
Page 2 Customer Support Information email: edgesupport@dvdo.com phone: 1-877-382-EDGE (1-877-382-3343) web site: www.dvdo.com/edge Check the web site for news and updates for your DVDO EDGE To learn about VRS Video Processing Technology, visit http://www.anchorbaytech.com/vrs_technology/ DVDO by Anchor Bay Technologies 983 University Avenue, Building A...
Page 3 For this configuration to work, your display should have HDMI input and built-in audio. Connect your source components (DVD Player, Set Top Box, Game console, etc.) to EDGE’s inputs. Connect EDGE’s Video/Audio HDMI output to your display. The DVDO universal remote can control EDGE and up to 7 other components in your system.
Page 4 Digital Display with a Separate AV Receiver This configuration features a separate AV Receiver for audio processing. Your Display must have either an HDMI or DVI input. If the Display has DVI input, you will need an HDMI to DVI adapter cable. Your AV Receiver can be connected using HDMI or Optical cables. Details of the Display and AV Recveiver connections are shown on the next page.
Page 5 EDGE Output Connections DVDO Edge -- Rear View of output Connectors the Video/Audio output. Connect your AV Receiver to the Audio Only HDMI output if the Receiver has HDMI. Connect your AV Receiver to the Optical Audio Out connector if your Receiver does not have HDMI.
Page 6 Display Wizard: Step 1, Configure Your Outputs EDGE automatically chooses a Display Name, Video Output Format, and Audio Output Connector. Use the Display Wizard to make any changes you would like, OR accept the automatic settings, and EXIT the Wizard (Left Arrow). You should see the Display Wizard on your TV as shown left.
Page 7 Use the Down Arrow to highlight the output format you want, then press OK. EDGE will switch to the new output format. You will have to confirm that you can see a picture within 10 seconds. If you don’t confirm, EDGE assumes that you can’t see the picture and will return...
Page 8 Display Wizard: Step 3, Audio Output Connector EDGE automatically chooses an Audio Output Connector. Or, you may choose an Audio Output Connector manually using the Display Wizard, as shown on this page. 3a. Select an audio output connector. You have 4 choices for audio output: A.
Page 9 Input Wizard -- Configure Your Inputs: Step 1, Naming an Input Input Wizard guides you through Naming an Input, Setting Input Priority (for automatic input switching), and Associating an Audio Input with a Video Input. Input Wizard guides you through the setup of your input components.
Page 10 Input Wizard: Step 2, Set Input Priority Input Priority is used to select inputs if EDGE is set for Auto Input Select, which is the default. If one or more inputs has active signal, EDGE will choose the active signal with the highest priority. You may use the Input Wizard to change priority as shown on this page. 2a.
Page 11 Input Wizard: Step 3, Associate an Audio Input Associate Audio is used to create an audio/video pair of inputs (for non-HDMI inputs). The pair will switch together when you switch input components. 3a. Associate Audio “Associate Audio” is used to create an audio/video pair of inputs that are switched as a unit.
Page 12 DVDO Universal Remote Using the Remote to Control Edge The remote control that comes with your DVDO Edge is a universal type. It can control your edge plus 7 other components in your system. The remote must be in DVDO mode to control Edge.
Page 13 Step 5] Please repeat the above steps to program the remote control for each of other devices. Code Tables appear on the following pages. A more complete list of tables in available in the DVDO EDGE Product Manual on the CD.
Page 14 Code Tables: TV. Manufacturer/Brand Set-Up Code Number ABEX ADMIRAL 072 251 161 160 ADVENT ADVENTURA AKAI 197 146 248 473 474 475 A MARK 112 143 AMPRO 167 073 157 183 AMSTRAD ANAM 043 054 056 080 112 197 004 112 058 APEX DIGITAL ASTAR AUDIOVOX...
Page 15 Code Tables: TV. Manufacturer/Brand Set-Up Code Number DELL 319 320 321 DIMENSIA DREAMVISION DUKANE 011 025 DUMONT 116 073 157 183 DURABRAND DWIN 177 257 DYNASTY DYNATECH DYNEX EIKI ELECTROBAND ELECTROGRAPH ELECTROHOME 143 024 076 196 ELEKTRA ELEMENT 363 494 526 EMERSON 028 048 043 155 005 197 004 047 050 051 076 096 143 151 153 154 ENVISION...
Page 16 Code Tables: TV. Manufacturer/Brand Set-Up Code Number 038 034 070 083 199 210 240 241 406 KAWASHO 116 070 197 KENWOOD 197 070 KLEGG KLOSS 002 059 KNOLL SYSTEMS KONKA KREISEN 043 197 143 154 KURAZAI 113 116 102 004 106 112 119 127 143 243 284 363 LODGENET LOEWE LOGIK...
Page 17 Code Tables: TV. Manufacturer/Brand Set-Up Code Number OPTIMUS OPTONICA 019 251 OPTOMA 265 270 249 ORION PANASONIC 034 056 080 092 164 208 PHILCO 197 003 059 060 064 164 004 024 056 063 PHILIPS 164 005 093 038 197 003 004 059 127 206 239 259 161 PILOT PIONEER 135 025 197 018 023 116 234 272...
Page 18 Code Tables: TV. Manufacturer/Brand Set-Up Code Number 004 043 SUPRA SUPRE MACY SUPREME SYLVANIA 197 003 052 059 060 063 064 164 044 160 127 SYNTAX OLEVIA 161 144 160 376 432 TANDY TATUNG 056 062 TECHNICS 034 080 TECHWOOD TEKNIKA 002 003 004 024 028 043 072 101 143 TELEFUNKEN...
Page 19 Code Tables: AV Receivers and audio processors. Manufacturer/Brand Set-Up Code Number ADCOM 082 092 225 161 269 355 356 AIWA 170 018 104 202 203 213 211 188 AKAI 125 126 127 281 282 ANGSTROM ANTHEM 335 337 ARCAM 141 418 ATLANTIC TECHNOLOGY AUDIO FILE AUDIO MATRIX...
Page 20 Code Tables: AV Receivers and audio processors. Manufacturer/Brand Set-Up Code Number LINN 124 377 LUXMAN 137 139 052 165 115 004 009 MAGNAVOX 086 164 152 208 MARANTZ 006 028 031 040 063 185 186 251 265 119 289 296 MCINTOSH 238 286 MERIDIAN...
Page 21 Code Tables: AV Receivers and audio processors. Manufacturer/Brand Set-Up Code Number YAMAHA 026 253 169 067 173 205 264 232 089 264 274 285 373 ZENITH 143 210 Code Tables: Cable Boxes. Manufacturer/Brand Set-Up Code Number PHILIPS 006 012 013 020 085 PIONEER 043 103 034 051 063 076 105 PULSAR...
Page 22 Code Tables: Satellite Boxes. Manufacturer/Brand Set-Up Code Number CABLEVISION DIRECTV DISH NETWORK ECHOSTAR EXPRESSVU GENERAL ELECTRIC 151 116 150 GENERAL INSTRUMENT HITACHI 139 140 HUGHES MITSUBISHI MOTOROLA NEXT LEVEL PANASONIC 142 160 PHILIPS 152 153 156 114 PROSCAN 151 116 150 RADIOSHACK 151 116 150 SAMSUNG...
Page 23 Code Tables: DVD. Manufacturer/Brand Set-Up Code Number AIWA AKAI ALPINE APEX DIGITAL 087 111 115 BROKSONIC CINEVISION COBY CYBERHOME DENON 138 080 173 DURABRAND DVD 2000 EMERSON 091 143 FISHER FUNAI 026 027 GO VIDEO 137 091 220 221 222 GOLDSTAR HARMAN KARDON 084 140...
Page 24 Code Tables: DVD. Manufacturer/Brand Set-Up Code Number OPPO OPTIMUS ORION PANASONIC 021 042 138 144 150 PHILIPS 001 083 095 105 166 PHILIPS-MAGNOVOX 035 001 PIONEER 023 092 099 107 108 131 POLAROID POLK AUDIO 035 001 PROCEED PROSCAN 026 027 026 027 RJTECH SAMSUNG...
Page 25 Code Tables: Video Cassette Recorders (VCR). Manufacturer/Brand Set-Up Code Number AIWA 034 161 AKAI 016 146 043 046 124 125 AMPRO ANAM AUDIO DYNAMICS 012 023 039 043 BROKSONIC 035 037 129 CANON 028 145 CAPEHART CRAIG 003 040 135 CURTIS MATHES 145 041 DAEWOO...
Page 26 Code Tables: Video Cassette Recorders (VCR). Manufacturer/Brand Set-Up Code Number 012 023 039 043 048 NORDMENDE OPTONICA 053 054 ORION PANASONIC 066 070 145 083 133 140 157 163 074 167 PENTAX 013 020 145 063 PHILCO 145 034 067 PHILIPS 145 067 034 101 054 071 156 PILOT...
Page 27 Code Tables: Video Cassette Recorders (VCR). Manufacturer/Brand Set-Up Code Number VICTOR VIDEO CONCEPTS 012 034 046 VIDEOSONIC WARDS 003 013 017 024 145 034 040 053 054 131 YAMAHA 012 034 039 043 ZENITH 072 056 048 101 034 058 Code Tables: VCR-TV/VCR Combos.
