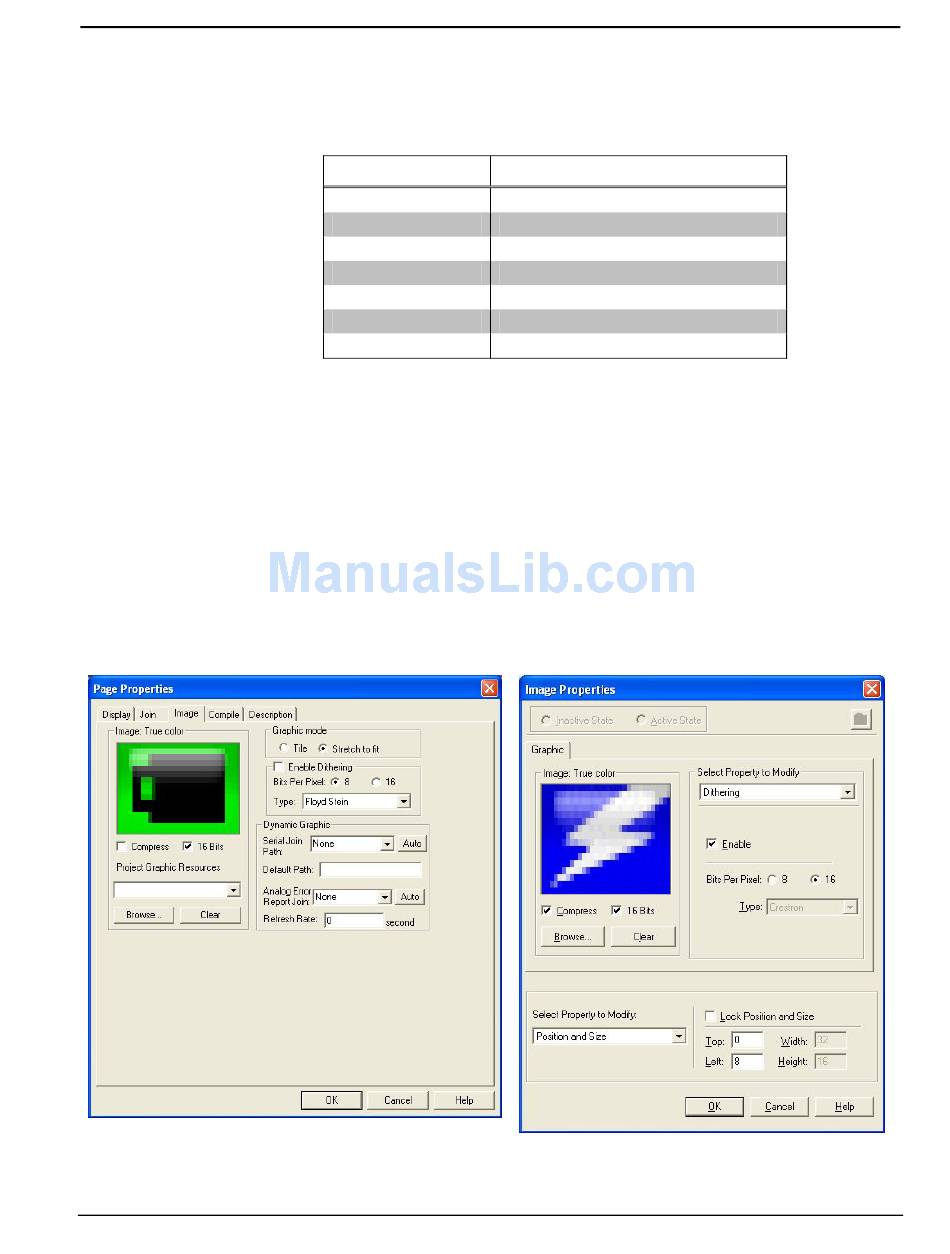

VT Pro-e "Page Properties" Window – Bit Depth Selection
Operations & Installation Guide – DOC. 6594B
Isys i/O™ 8.4" Touchpanel Media Center
project that will fit in the memory space provided and have the touchpanel remain
very responsive.
Relationship of Bits to Colors
NUMBER OF BITS
1 bit
2 bits
4 bits
8 bits
16 bits
24 bits
32 bits
When creating a VT Pro-e project you can elect to compress and reduce the image
size in the "Page Properties" window for the entire page and/or perform the same
function of reducing the image size using the "Image Properties" window. A
reduction in image size will save a considerable amount of memory space for your
project.
In VT Pro-e, the Compress checkbox permits the image to be compressed when
compiling. The 16 Bits checkbox converts a 24-bit or 32-bit image to 16 bits. This
conversion to a 16-bit image may cause the loss of some subtle shading. To
compensate for this, use the dithering to simulate the original shading. Check your
image with each of the available dithering types to determine which will deliver the
best quality image.
Dithering type selection can be accessed from the "Page Properties" or "Image
Properties" windows in VT-Pro-e. Refer to the following illustrations.
Isys i/O™ 8.4" Touchpanel Media Center: TPMC-8L • 47
NUMBER OF COLORS
Black and White
4 Colors
16 Colors
256 Colors
65,536 Colors (Highcolor)
16.7 million Colors (Truecolor)
16.7 million Colors plus Transparency
VT Pro-e "Image Properties" Window – Bit Depth Selection
