Ethernet Details
The Ethernet portion of the setup menu allows configuration of the touchpanel
settings for Ethernet communications.
The Crestron Swirl logo
illuminates to indicate the status of your connection to the control system(s):
•
Green Connected
•
Yellow Network trouble
•
Orange Connected to some but not all of the control systems (listed in IP
table)
•
Red Not connected to any control system (listed in the IP table)
Adapters
Touch Adapters to access the "Ethernet Setup" window. To save any changes, use
the Save & Reboot button on the setup menu. The Ethernet address and mask are
displayed on this screen.

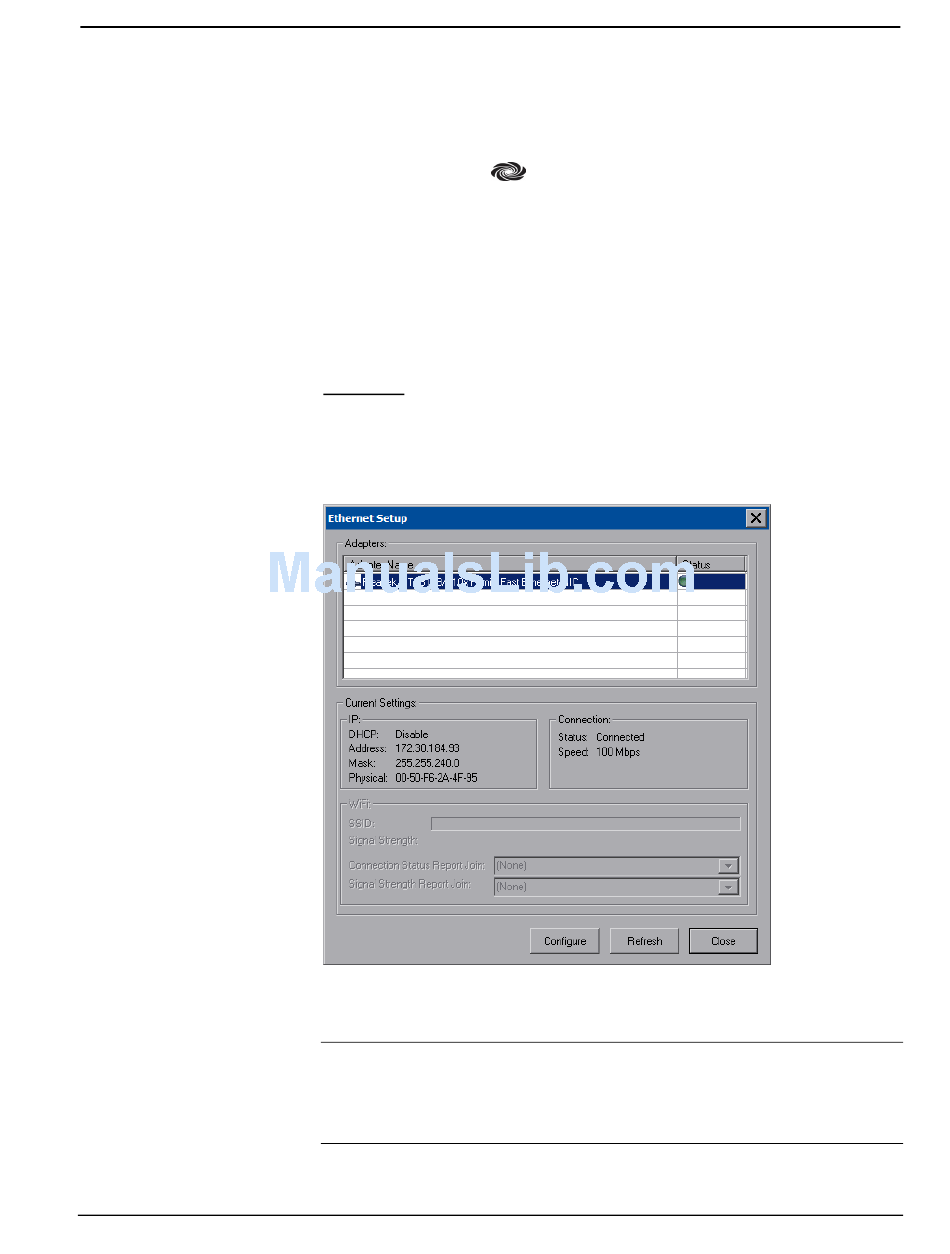

"Ethernet Setup" Window
Touch Configure to open the "Local Area Connection Properties" window. This
window displays the connection and related required items.
NOTE: When configuring an adapter, only one item can be modified at a time. For
example, to modify an IP address and also change authentication, touch Configure
and modify the IP address, then touch OK (you must return to the "Ethernet Setup"
window). Touch Configure again, change authentication, then touch OK. The order
in which modifications are performed does not matter.
