Crestron TPMC-8L
Operations & Installation Guide – DOC. 6594B
Isys i/O™ 8.4" Touchpanel Media Center

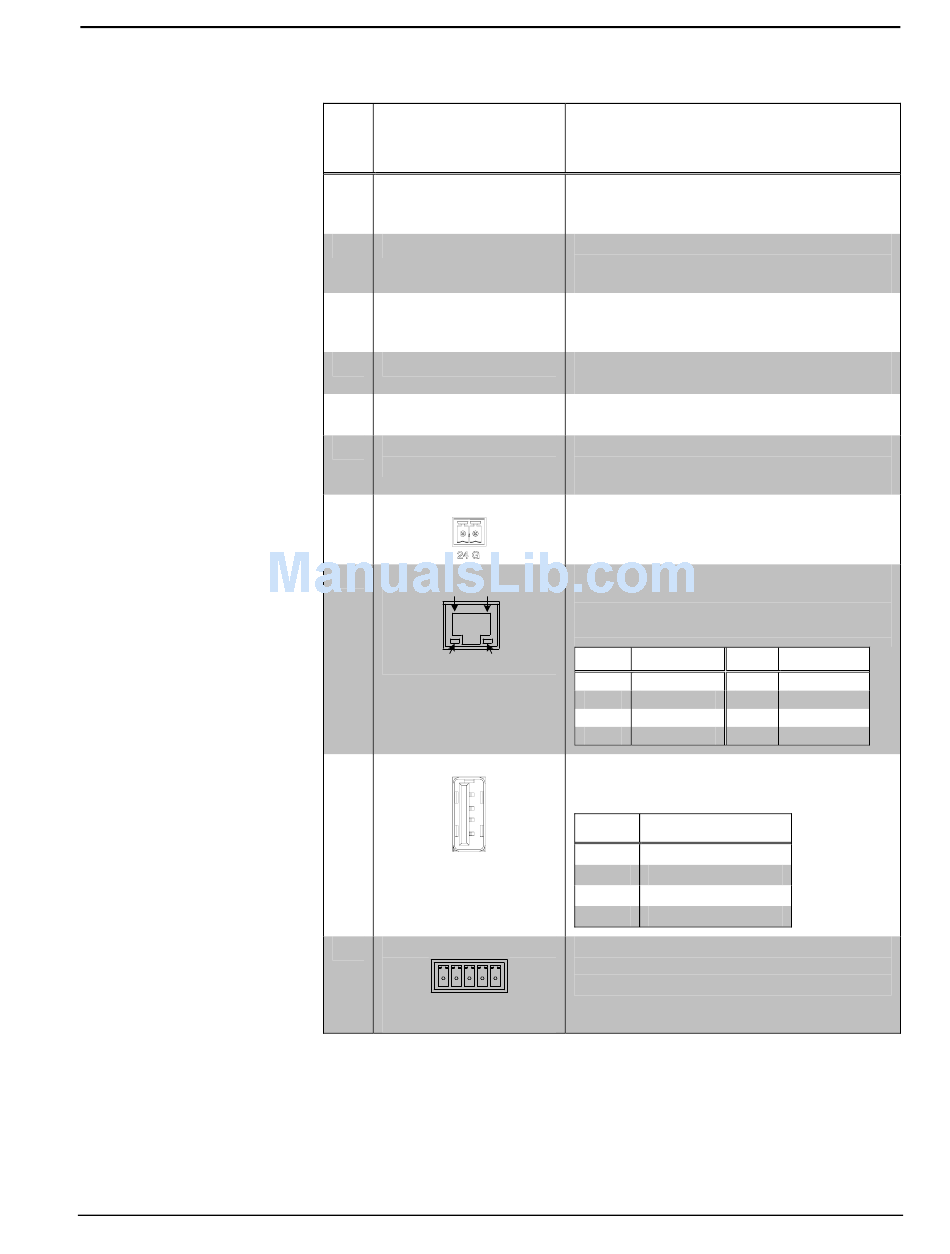

Connectors, Controls & Indicators
# CONNECTORS
CONTROLS &
INDICATORS
1 SMALL HARD KEYS
2 LARGE HARD KEYS
3 MICROPHONES
2
4 RESET
5 LIGHT SENSOR
6 BIOMETRIC
SCANNER
7 PWR
3
8 LAN
PIN 8
PIN 1
YELLOW GREEN
LED LED
9 USB
4
3
2
1
10 AUDIO OUT
+ - G + -
L R
1. Interface connectors for AUDIO OUT and 24 VDC ports are provided with the unit.
2. To access the reset button, remove the bezel and then use a narrow blunt instrument such as the end of
a ballpoint pen to press the button.
3. To determine which is pin 1 on the cable, hold the cable so that the end of the eight pin modular jack
is facing away from you, with the clip down and copper side up. Pin 1 is on the far left.
4. Only generic USB devices (i.e. simple keyboard, mouse and external storage) should be used with the
TPMC-8L. Any complex USB devices (e.g. a storage device with a built-in fingerprint scanner) will
not have the proper support on the panel.
Isys i/O™ 8.4" Touchpanel Media Center: TPMC-8L • 9
1
, DESCRIPTION
(4) Optional small backlit pushbuttons,
engravable on faceplate
(Button models only)
(12) Optional large engravable pushbuttons
with available backlighting
(Button models only)
(2) Built in microphones behind the bezel
support IP based intercom, telephone and
conferencing functionality
(1) Miniature pushbutton behind faceplate,
used to reset the touchpanel
Programmable photo sensor for automatic
backlight dimming
AuthenTec EntrePad
scanner;
Identifies up to 30 users by fingerprint
(1) 2-pin 3.5 mm detachable terminal block;
24 Volt DC power input;
Wire size: 18 AWG maximum
(1) 8-wire RJ-45 with 2 LED indicators;
10BASE-T/100BASE-TX Ethernet port;
Green LED indicates link status
Yellow LED indicates Ethernet activity
PIN SIGNAL
1 TX +
2 TX -
3 RC+
4 N/C
(2) USB Type A female
USB 2.0 ports for keyboard, mouse and
4
storage devices
PIN DESCRIPTION
1 +5 VDC
2 Data -
3 Data +
4 Ground
(1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line level audio
output
®
1610 fingerprint
PIN SIGNAL
5 N/C
6 RC -
7 N/C
8 N/C
