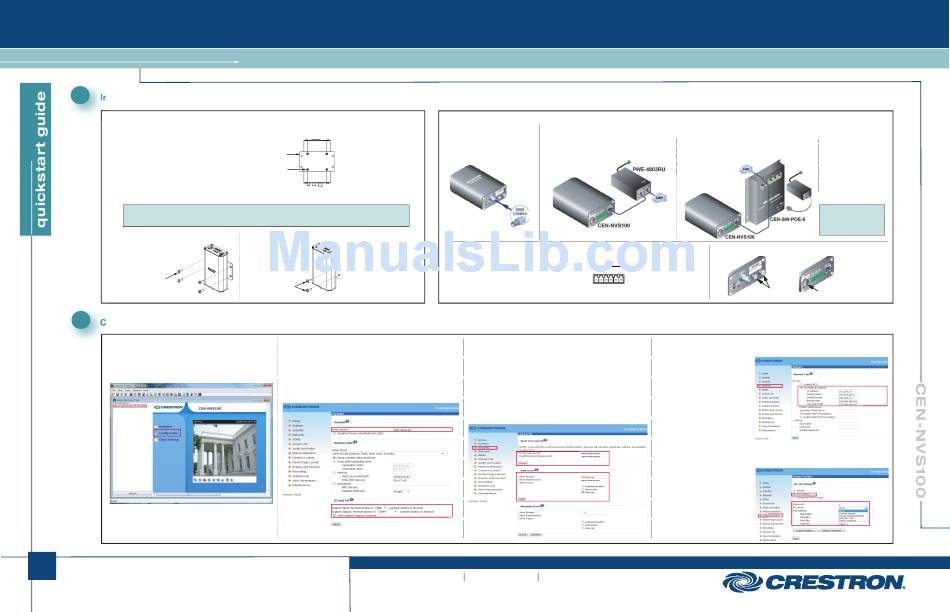

Crestron CEN-NVS100 Quick Start Manual

CEN-NVS100
1
Installing the CEN-NVS100
MOUNTING
A. Attach the Supplied Mounting Bracket.
B. Mount the CEN-NVS100 to a Wall or to a Rack.
NOTE: The CEN-NVS100 must be installed in a temperature-controlled environment ranging from
32° to 104° F (0° to 40° C).
Wall Mounting:
(4) Drywall Screws,
(Not Supplied)
2
Configuring the CEN-NVS100
A. Access the Configuration Web Pages.
1. In the Device Discovery Tool of Crestron Toolbox™,
select Crestron CEN-NVS100. The home page of the
CEN-NVS100 opens.
CEN-NVS100 Home Page (Default)
2. Select Configuration. The "System" configuration page
opens (refer to Step B).
1
QUICKSTART DOC. 6746A (2022586)
Network Video Streamer
Mounting Bracket
(4) Screws, M3 x 5mm
Phillips Flat Head
(Supplied)
Rack Mounting:
Mount the left or right side
of the bracket to the front or
rear rail of a rack (mounting of
right side of bracket is shown).
Rack Mount Screws
(Not Supplied)
B. (Optional) Configure System Settings.
1. On the "System" configuration page, modify the default host
name, CEN-NVS100, using a name that is meaningful for
your environment.
2. Configure DI (Digital Input) and DO (Digital Output) settings.
3. Click Save.
"System" Configuration Page
www.crestron.com
03.09
©2009 Specifications subject to
change without notice.
CONNECTIONS
(Front) Video Connection (Rear) Power over Ethernet (PoE) Connection
®
Connection to Crestron PoE Injector
If necessary, use the supplied
BNC-to-RCA adapter to connect (Part No. PWE-4803RU)
to the camera.
(Rear, Optional) 6-pin Terminal Block Connection
Using the supplied terminal block mating connector,
12V DIO 485
connect the 6-pin terminal block to external devices
–
P C I O +
such as an alarm, sensor, and PTZ camera.
C. Configure Security Settings.
1. Click Security. The "Security" configuration page opens.
2. In the Root Password pane, assign an administrator password
and then click Save at the bottom of the pane. A log-in
window appears.
3. Enter root as the user name, and then enter the password you
entered in step 2.
4. In the Add User pane, create a user account whose user type
is set to Viewer, and then click Add.
"Security" Configuration Page
888.273.7876 201.767.3400
All brand names, product names and trademarks
are the property of their respective owners.
Connection to Crestron PoE Switch
(Part No. CEN-SW-POE-5 Shown)
For Future or Factory Use Only
P = (For factory use only)
C = Common
I = Digital Input
O = Digital Output
+ = RS-485, T+/R+
– = RS-485, T-/R- (For Future Use)
D. Configure Network Settings.
"Network" Configuration Page
1. Click Network. The "Network"
configuration page opens.
2. Configure a static IP
address and related
network information.
3. Click Save.
E. (Optional) Configure Camera Control Settings.
"Camera Control" Configuration Page
1. Click Camera Control.
The "Camera Control"
configuration page opens.
2. Click PTZ Camera,
and then configure
the camera settings
as required.
3. Click Save.
Connection to
Third-Party PoE
Power Source.
For installation
information, refer to
the third-party device
documentation.
NOTE: By default,
the CEN-NVS100
uses DHCP.
(For Factory Use Only)
