Hardware Hookup

The TPMC-8L should be used in a well-ventilated area.
To prevent overheating, do not operate this product in an area that exceeds the
environmental temperature range listed in the table of specifications. Consideration
must be given if installed in a closed or multi-unit rack assembly since the operating
ambient temperature of the rack environment may be greater than the room ambient
temperature. Contact with thermal insulating materials should be avoided on all sides
of the unit.
Make the necessary connections as called out in the illustration that follows this
paragraph. Apply power after all connections have been made.
When making connections to the TPMC-8L, use Crestron power supplies for Creston
equipment.

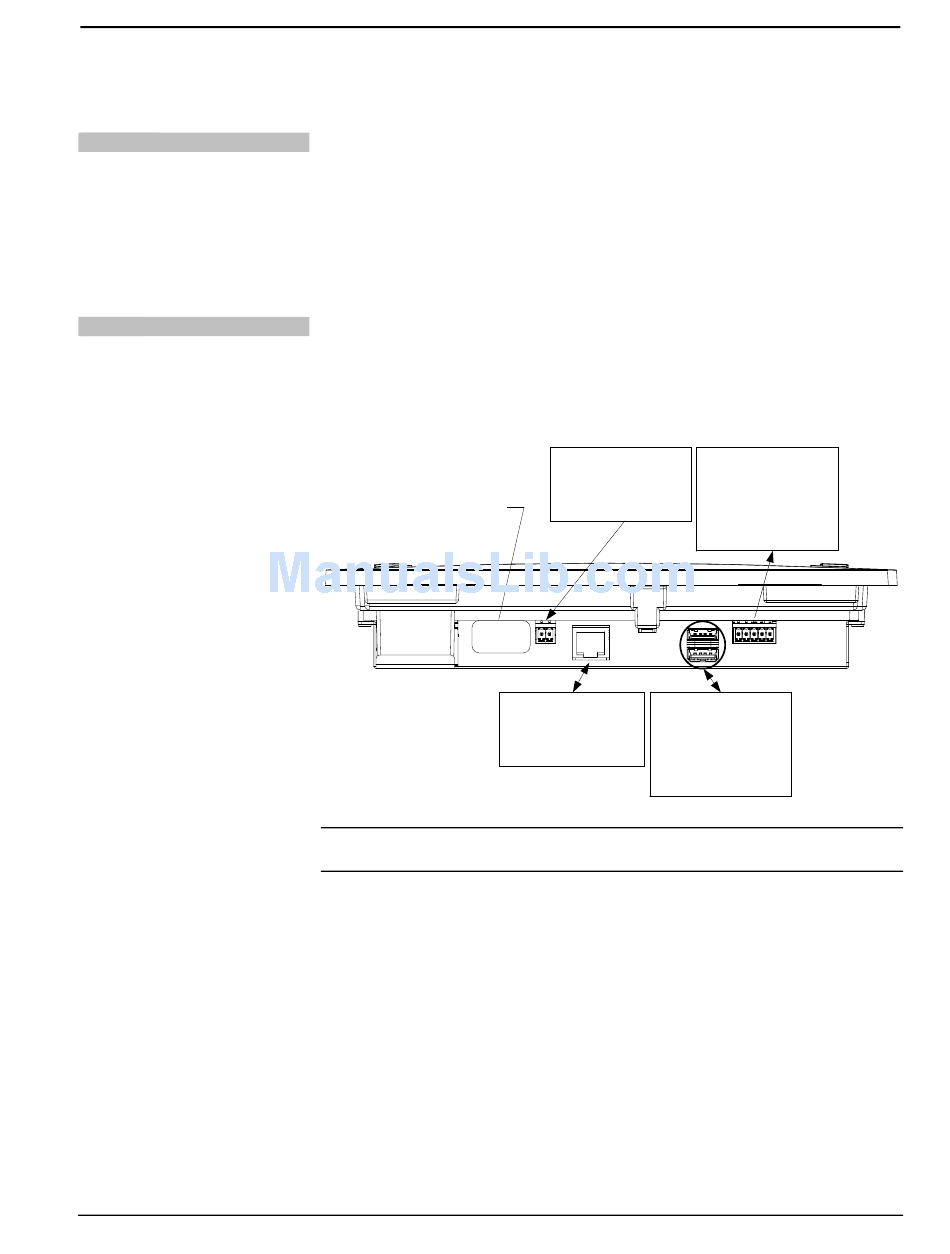

Hardware Connections for the TPMC-8L
DO NOT REMOVE LABEL
THIS PORT IS FOR
FACTORY USE ONLY
CAUTION: Do not apply excessive pressure to the touchscreen display during
handling. Doing so can crack the screen and damage the touchpanel.
Isys i/O™ 8.4" Touchpanel Media Center: TPMC-8L • 41
24 VDC:
24 VOLT DC
POWER INPUT
LAN:
KEYBOARD,
10BaseT/100BaseTX
MOUSE, MASS
HIGH SPEED
STORAGE OR
ETHERNET
OTHER WIRED
AUDIO OUT:
BALANCED/
UNBALANCED
STEREO LINE
LEVEL OUTPUT
USB (2):
DEVICES
