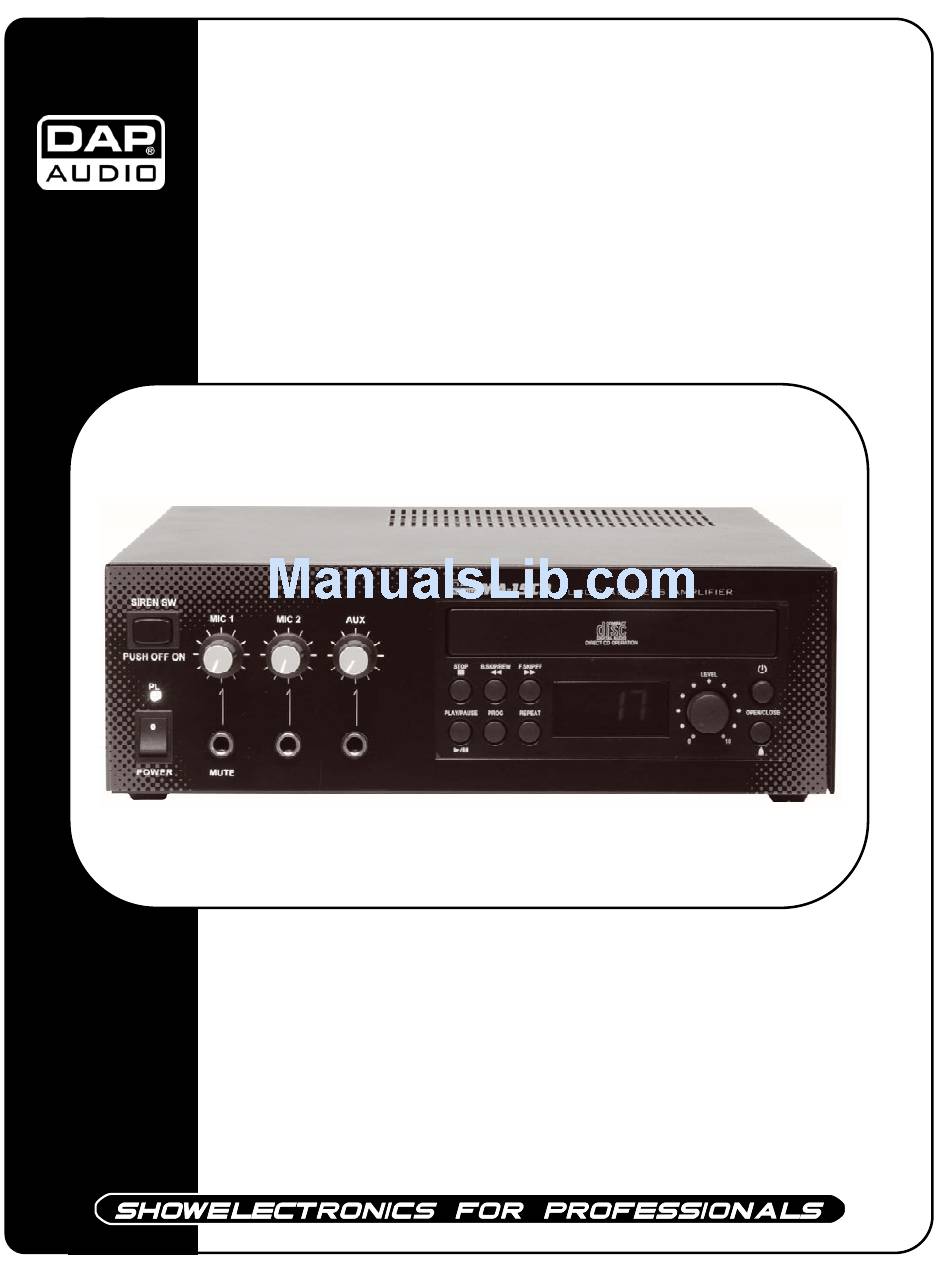

- Page 1 MA15CD ORDERCODE D6102...
- Page 2 Congratulations! You have bought a great, innovative product from Audio. Dap Audio MA15CD brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio MA15CD Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features Frontside………………………………………………………………………………….……...…. Backside…….……………………………………………………………………………………….……...…. Installation............……..……………………………….………………………. Set Up and Operation..............……..…………………………….…… Operations CD Player ……..........……………………………....…..… Set Up Example……..........…………………………………....……...… Connection Cables......…........………..………….…….………….….. Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• better value on the market, if you save the carton and all packing materials. Prevent distortion! Make sure that all components connected to the MA15CD have sufficient power • ratings. Otherwise distortion will be generated because the components are operated at their limits. -
Page 6: Description

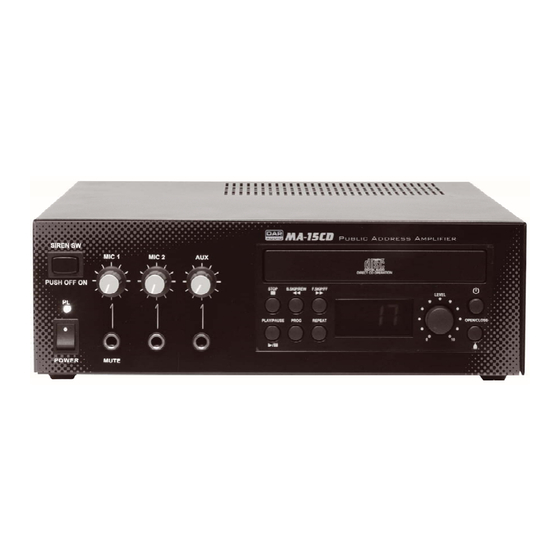

Description of the device Features MA15CD is an amplifier from DAP Audio. • 2 mic, 1 aux input • Two unbalanced 6.3 mm jack inputs mic sensivity • One auxiliary RCA mono input • Final stages completely protected thermal shut down and short protection. -
Page 7: Installation
20%. Input Connection Microphones The MA15CD is equipped with 3 inputs. They can be used with unbalanced low impedance devices MIC-1, MIC-2 These two microphone inputs are unbalanced type and are provided with a double pole phone jack. -
Page 8: Operations Cd Player
Operations 1. Opening and closing of the disc holder • Turn the unit’s power on. Press the OPEN/CLOSE-button to open the disc holder. • The disc holder cannot be opened during playback, to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally. - Page 9 Before switching off the power When you have finished using the CD player, before switching off the power, be sure that the disc holder has been closed with the OPEN/CLOSE button. CAUTION: Do not forcibly close the disc holder when the power is off. CD’s 1.
- Page 10 CD function buttons CD power switch with two-position for ON-OFF mode, before p r ess it, please turn off the volume knob. OPEN/CLOSE: press to open/close the disc holder PLAY/PAUSE: when press the button, the CD player will start playing; press the same button again and the CD player will pause.
-
Page 11: Set Up Example
Set Up Example Fig. 4... -
Page 12: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 13: Maintenance
Maintenance Dap Audio MA15CD requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Product Specifications Model: DAP Audio MA15CD Power consumption: 110W DC Power consumption: 30W Power Supply: AC or DC 12~18V Power Output: 30W RMS Power Output at 12V is 13W and at 18V is 17W RMS Frequency Response: 30Hz-25KHz Harmonic distortion: <1% Signal-to-Noise ratio: Microphone >55dB rated power... - Page 15 2005 Dap Audio.
