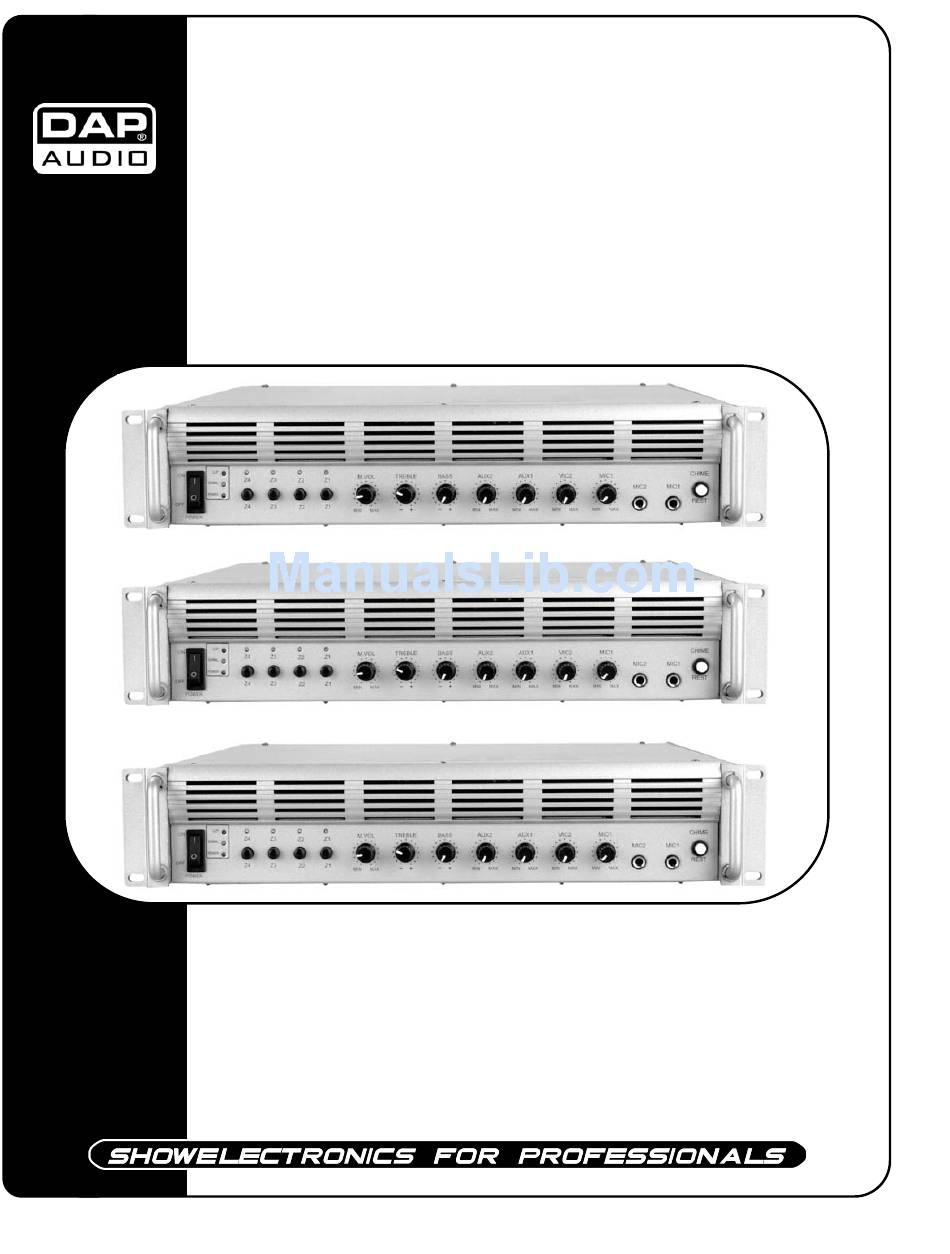

- Page 1 Palladium 100V VPA-060 ORDERCODE D4141 VPA-150 ORDERCODE D4142 VPA-250 ORDERCODE D4143...
- Page 2 Congratulations! You have bought a great, innovative product from Audio. Dap Audio Palladium 100V Series brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated show, this product provides the effect you need. You can rely on Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio Palladium 100V Series Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features Frontside………………………………………………………………………………….……...…. Backside…….……………………………………………………………………………………….……...…. Installation............……..……………………………….……………………….. Set Up and Operation..............……..…………………………….…… Connection Cables......…........………..………….…….………….….. Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely •... -
Page 6: Backside
Description of the device Features Palladium 100V is a 100V amplifier from DAP Audio. There are 3 different versions: VPA-060, VPA-150, VPA-250. VPA-060 VPA-150 VPA-250 2x 60 Watt 2x 150 Watt 2x 250 Watt Overview Frontside 1) ON/OFF 8) Aux 1 Control... -
Page 7: Installation
Installation Palladium 100V Installation Remove all packing materials. Check that all foam and plastic padding has been removed. Screw the equipment into a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. - Page 8 Low Impedance Speaker Output: 8 The low impedance 8 terminal is for connecting of a few large-output speakers, when constant-voltage speaker systems are unnecessary or the distance between the amplifier and the speakers is below 50m. The total speaker load impedance must be matched to the output impedance (8 ) of the amplifier for the most efficient power-transfer.
- Page 9 Every amplifier incorporates several circuits to protect themselves and the speakers under virtually any situation. Dap Audio has attempted to make the amplifier as “foolproof” as possible by making it impervious to short and open circuits, DC Voltage and overheating.
-
Page 10: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Maintenance
2. Check power from the wall, all cables, the fuse, etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If nothing happens after 30 seconds, turn off the amplifier and unplug the device. 5. Return the machine to your DAP Audio dealer. -
Page 12: Product Specifications
Product Specifications Specification VPA-060 VPA-150 VPA-250 Power (RMS) 150W 250W Frequency Response 100 Hz -16KHz Output Regulation Less than 3dB, no load to full load Speaker Output 8 , 70V, 100V Aux Ouput 600 , 1V (0dB) Inputs Mic 1, 2 / 600 , 2,0 mV (-54dBV) Unbalanced... - Page 13 2005 Dap Audio.
