Summary of Contents for DAPAudio PA100CD
- Page 1 PA100CD ORDERCODE D6111...
- Page 2 Congratulations! You have bought a great, innovative product from Audio. Dap Audio PA100CD brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio PA100CD Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features Frontside………………………………………………………………………………….……...…. Backside…….……………………………………………………………………………………….……...…. Installation............……..……………………………….………………………. Set Up and Operation..............……..…………………………….…… Operations CD Player ……..........……………………………....…..… Set Up Example 1……..........……………………….………....……...… Connection Cables......…........………..………….…….………….….. Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely •... -
Page 6: Description

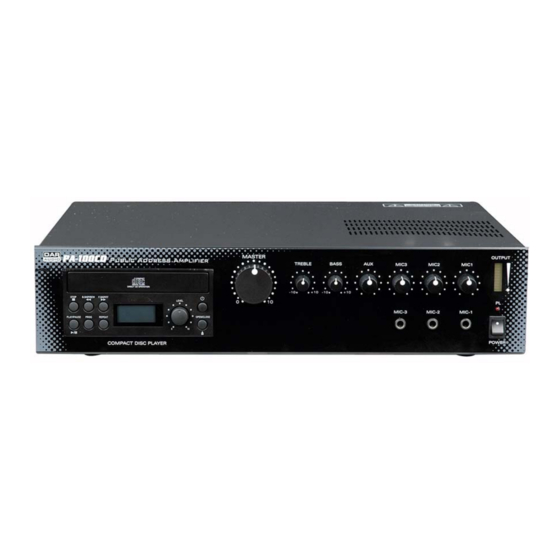

Description of the device Features PA100CD is an amplifier from DAP Audio. • Full frequency response: 50Hz to 15,000 Hz at 3dB. • Low distortion and noise level. • 3 unbalanced microphone inputs • 1 AUX and 1 LINE Out input •... -
Page 7: Backside
Input Connection Microphones The PA100CD is equipped with 3 inputs. They can be used with unbalanced low impedance devices MIC-1, MIC-2, MIC-3 These three microphone inputs are unbalanced type and are provided with a double pole phone jack. - Page 8 Priority paging: The amplifier features a transistorized circuit, which automatically mutes the other inputs and allows microphone #1 to talk over for special or emergency announcements. This electronic switch is operated from the microphone, which must contain a single-pole switch, normally open for actuating this circuit. 4 , 8 , 16 Connection 1) The total impedance of the speakers connected must correspond to that selected on the amplifier's output terminals.
-
Page 9: Operations Cd Player
Operations CD Player 1. Opening and closing of the disc holder • Turn the unit’s power on. Press the OPEN/CLOSE-button to open the disc holder. • The disc holder cannot be opened during playback, to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally. -
Page 10: Before Switching Off The Power
Before switching off the power When you have finished using the CD player, before switching off the power, be sure that the disc holder has been closed with the OPEN/CLOSE button. CAUTION: Do not forcibly close the disc holder when the power is off. CD’s 1. - Page 11 CD function buttons CD power switch with two-position for ON-OFF mode, before p r ess it, please turn off the volume knob. OPEN/CLOSE: press to open/close the disc holder PLAY/PAUSE: when press the button, the CD player will start playing; press the same button again and the CD player will pause.
-
Page 12: Set Up Example 1
Set Up Example 1 Fig. 4... -
Page 13: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 14: Maintenance
2. Check power from the wall, all cables, the fuse, etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If nothing happens after 30 seconds, turn off the amplifier and unplug the device. 5. Return the machine to your DAP Audio dealer. - Page 15 Problem Cause Solution No lights illuminates when the 1.Is the unit plugged into a live 1.Load outlet POWER button is pressed. outlet? 2.Was the AC fuse opened? 2.Replace AC fuse 3.Was the DC fuse opened? 3.Replace DC fuse No sound is heard 1.Check if the audio source was 1.Connect to audio source output.
-
Page 16: Product Specifications
Product Specifications Model: DAP Audio PA100CD Power Supply: AC 230V Power consumption: 220W Power Output: 100W; max. 140W Output terminal block: Low impedance: 4~16 High voltage: 25V, 70V, 100V Input sensitivity: Mic 1-3: - 54dB ± 1 dB AUX: - 18dB ± 2 dB... - Page 17 2005 Dap Audio.
