Palladium
P-400
P-500
P-700
P-900
P-1200
P-1600
P-2000
ORDERCODE D4131
ORDERCODE D4132
ORDERCODE D4133
ORDERCODE D4134
ORDERCODE D4135
ORDERCODE D4136
ORDERCODE D4137

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Palladium vintage P-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for DAPAudio Palladium vintage P-400

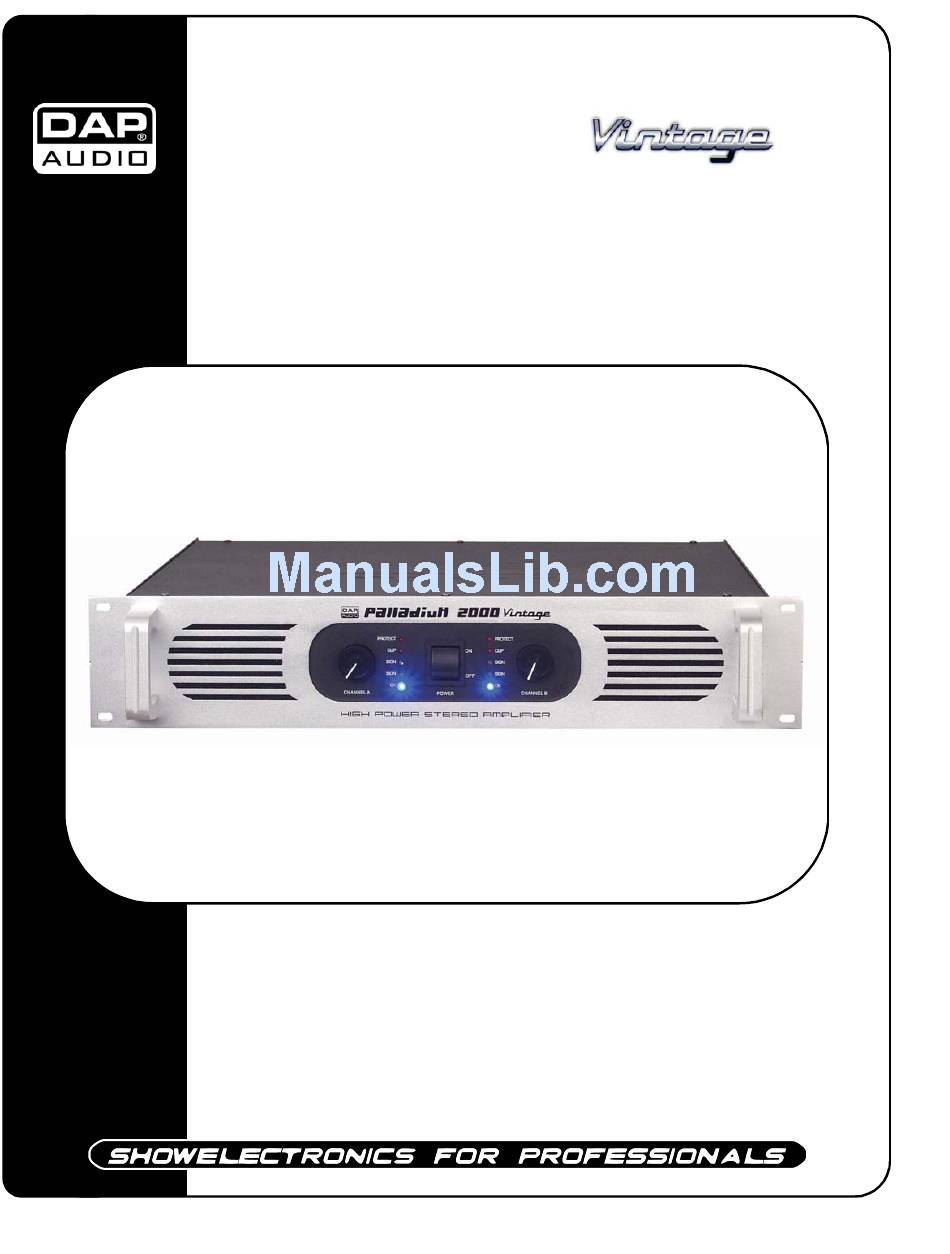

  • Page 1 Palladium P-400 ORDERCODE D4131 P-500 ORDERCODE D4132 P-700 ORDERCODE D4133 P-900 ORDERCODE D4134 P-1200 ORDERCODE D4135 P-1600 ORDERCODE D4136 P-2000 ORDERCODE D4137...
  • Page 2 Congratulations! You have bought a great, innovative product from Audio. Dap Audio Palladium Vintage Series brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated show, this product provides the effect you need. You can rely on Audio, for more excellent audio products.
  • Page 3: Table Of Contents

    Dap Audio Dap Audio Palladium Vintage Series Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features Frontside………………………………………………………………………………….……...…. Backside…….……………………………………………………………………………………….……...…. Installation............……..……………………………….……………………….. Set Up and Operation..............……..…………………………….…… Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….…………………..
  • Page 4: Warning

    WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.
  • Page 5: Operating Determinations

    • Make sure that the amplifier is turned down, before turning the power on or off. So you can avoid supersonic frequencies, which could damage your speakers. • Don't put your equipment next to TV, radio, etc., because of interference or distortion. •...
  • Page 6: Description

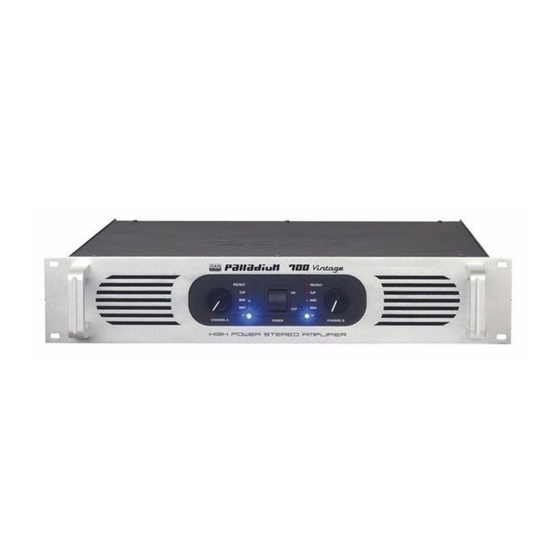

    Description of the device Features Palladium Vintage is an amplifier from DAP Audio. There are 7 different versions: P-400, P-500, P-700, P-900, P-1200, P-1600, P-2000. P400 P1200 Stereo mode: Stereo mode: • 2x 100 Watt RMS – 8 Ω • 2x 400 Watt RMS – 8 Ω...
  • Page 7: Backside

    Backside 5. Power cord 6. Fuse 7. 5-way Binding post output Connectors 8. Signal Ground Lift Barrier Strip 9. Bridged, Parallel, Stereo 10. Balanced Phone Jack Inputs Installation Palladium Vintage Installation Remove all packing materials. Check that all foam and plastic padding has been removed. Screw the equipment into a 19"...
  • Page 8 The phone connectors have a standard Tip-Ring-Sleeve (TRS) – configuration: The tip is positive (+), the ring is negative (-) and the sleeve is ground. a) Jack-Inputs Balanced Signals Tip-HOT Ring-COLD Sleeve-Ground b) Jack-Inputs Unbalanced Signals Tip-HOT Sleeve Ground c) XLR INPUTS Balanced Signals Pin 1 Ground Pin2 HOT Pin3 COLD Connecting Outputs Speakers can be connected using Banana plugs, Speakon plugs or bare wire to the binding posts on the...
  • Page 9 Stereo Operation For stereo (dual channel) operation, set the mode select switch to the “Stereo” position. In this mode both channels operate independently of each other, with their input attenuates controlling their respective levels. A signal at Channel A’s input produces an amplified signal at Channel A’s output, while a signal at Channel B’s input produces an amplified signal at Channel B’s output Bridged Mono Operation Both amplifier channels can be bridged together to make a very powerful single channel amplifier.
  • Page 10 Switches and controls AC-Power-Switch-Circuit-Breaker Never try to hold the switch in the „ON“-position, if it won’t stay there by itself. The amplifier has a combined AC-switch/Circuit-Breaker on the front panel. If the switch shuts off during normal use, push back to the ON position once. If it will not stay on, the amplifier needs servicing switches and controls.
  • Page 11 Input Attenuates The two input attenuator controls, located at the front panel, adjust gain for their respective amplifier channels in stereo mode. With attenuate fully clockwise at 0 dB, professional power amplifiers have the rated power (when the rated input is 0,775V) In bridged mode, only channel A’s attenuate controls the power level, while channel B’s does not function.
  • Page 12: Maintenance

    Maintenance Dap Audio Palladium Vintage Series requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean.
  • Page 13: Product Specifications

    Product Specifications Specification P-400 P-500 P-700 P-900 P-1200 P-1600 P-2000 8 Ω Stereo 100W 160W 250W 300W 400W 525W 750W Power (RMS) 4 Ω Stereo 200W 250W 350W 450W 600W 800W 1025W Power (RMS) 8 Ω Bridge 400W 500W 700W...
  • Page 14 2003 Dap Audio.
