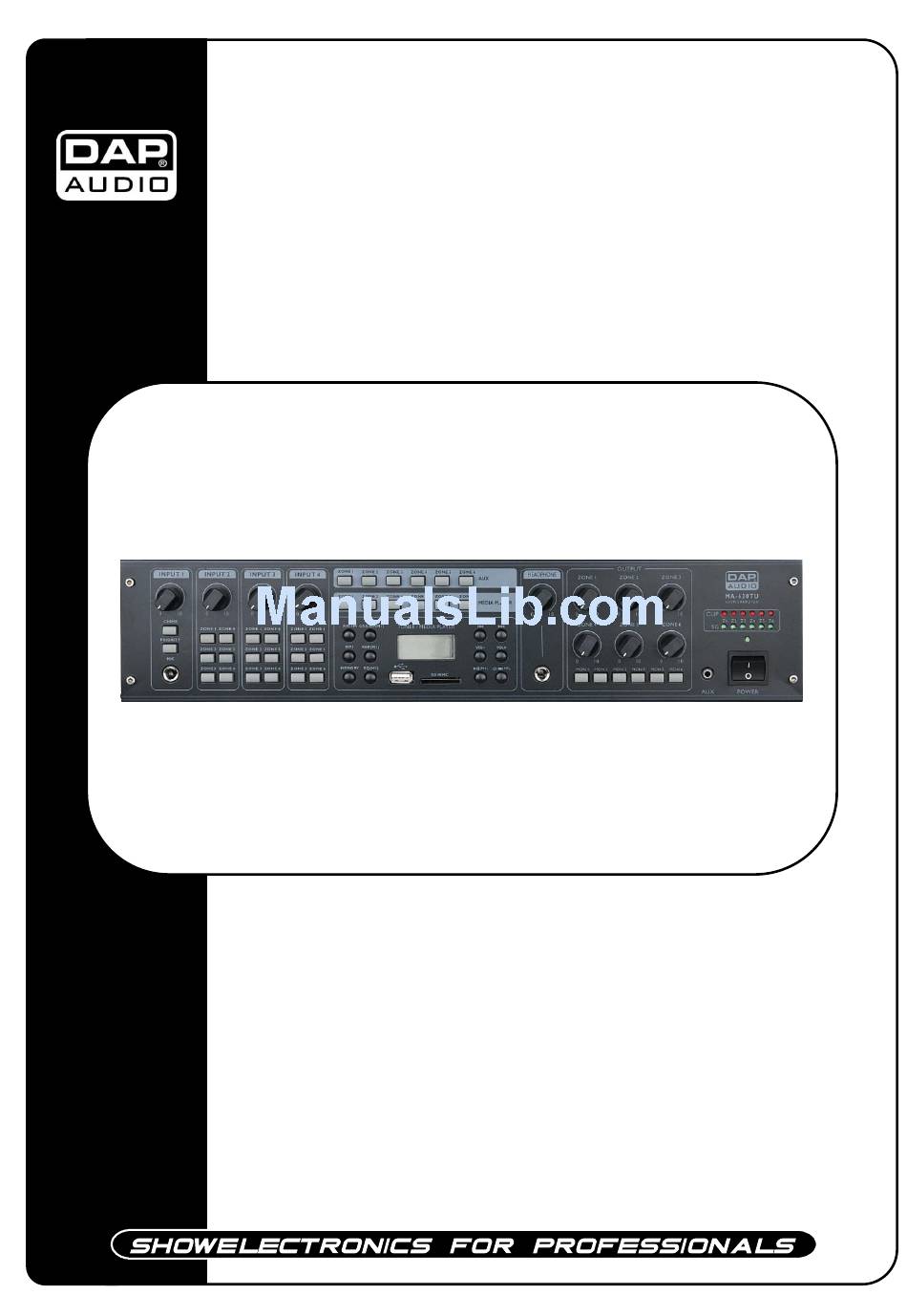

- Page 1 MA-630TU ORDERCODE D6144 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio MA-630TU brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio MA-630TU Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Description of the device ............................. 6 Frontpanel .................................. 6 Tuner/media player ..............................7 Backpanel .................................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP MA-630TU • FM Antenna • AM Antenna •... -
Page 5: Operating Determinations
Never use anything to cover the ground contact. Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device

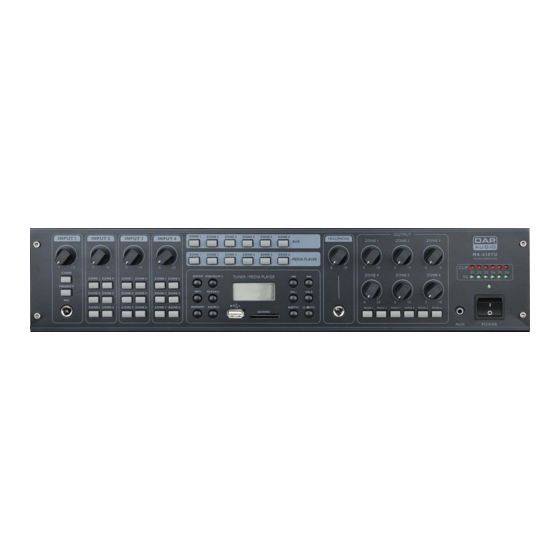

Description of the device Features The MA-630TU is a versatile 100V amplifier due to the matrix functionality. It has 4 inputs and 6 individual outputs. With the zone selection buttons you are able to route each input and the media player to your desired output and control different audio sources for 6 areas. -
Page 8: Tuner/Media Player
7. Priority button Pushing this button allows you to switch the priority function for channel 1 on or off. If the priority function is active, all channels except channel 1 will be muted when the mic 1 (11) input picks up a signal. 8. - Page 9 20. Rep (M2) button MP3 mode: Pushing this button lets you switch between Normal play, Repeat all and Random play. Tuner mode: Pushing this button will recall memory preset M1. 21. Display MP3 mode, this display shows the current track number. Tuner mode, this display indicates the receiving frequency and memory number.
-
Page 10: Backpanel
Replace the fuse only with a fuse of the same specification (230V:T2,5A). 34. AC-selector Before connecting your MA-630TU to the mains, make sure the AC-selector is set to the proper voltage used in your country. If you’re not sure, consult a skilled technician. -
Page 11: Operation
Combo input for channel 2. Accepts balanced or unbalanced inputs. Operation Installation Remove all packing materials from the MA-630TU. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack if preferred. Connect all cables. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 12: Operating The Tuner
Operating the Tuner Selecting a station Use the AM/FM (18) button to select either AM or FM band. Push the (23) or (24) button to tune stepwise. Pushing the (23) or (24) button for more than 1second will let you speed up the searching. Selecting a preset. - Page 13 or push the (30) during the pause condition to restart playback. Stop Playback There are two ways to stop playback: 1. Push the (30) button during playback to pause at that point. 2. Push the (31) button during playback. Pausing Push the (30) button to switch between play mode and pause mode.
-
Page 14: Connecting Inputs
Switching between USB and SD playback Make sure that an USB stick as well as a SD-card are inserted. If you are in USB mode, push the USB/SD (19) button. Now the display will search for a SD- card If a SD card is found, the dispay will briefly show SD. If no SD card is found, the display will show No SD. -
Page 15: High Impedance Outputs
Example 3: using the 8Ω output with two 4Ω speakers. Fig. 7 In a low impedance system, the total speakerload should always match the amplifier impedance. This to avoid overloading the amplifier. The total speaker power should be at least the power of the amplifier to avoid damage to the speakers. - Page 16 Compensation of interference with balanced connections...
-
Page 17: Maintenance
Maintenance DAP Audio MA-630TU requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 18: Product Specifications
Product Specifications Output Power: 6 x 30W Power outputs: 8-16 Ohm, 70V, 100V (terminal strip) Input 1: Microphone (6.3mm Jack) Input 2: Line/Microphone with phantom power (XLR/Jack combo) Input 3: Line/Microphone with phantom power (XLR/Jack combo) Input 4: TAPE/CD/AUX switchable (RCA) Tuner Presets: Media player: MP3 format... - Page 19 2013 Dap Audio.
