- Page 1 MANUAL ENGLISH MA-8120 Digital Zone Amplifier Ordercode: D6195 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
MA-8120 Digital Zone Amplifier Table of contents Warning ................................... 2 Unpacking Instructions ............................. 2 Safety Instructions ..............................2 Operating Determinations ............................4 Return Procedure ..............................4 Claims ..................................4 Description of the device ............................. 5 ... -
Page 3: Warning
MA-8120 Digital Zone Amplifier Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. The user is responsible for correct positioning and operating of the MA-8120 amplifier. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
MA-8120 Digital Zone Amplifier Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device

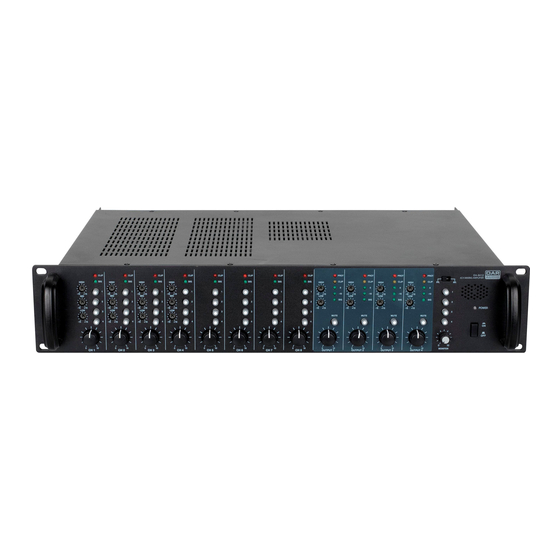

MA-8120 Digital Zone Amplifier Description of the device The DAP MA-8120 is a compact but powerful matrix amplifier with 8 selectable sources which can be connected to 4 independent outputs. All microphones are equipped with phantom power and can also be selected as line input. -
Page 7: Frontside
Signal indicator This LED indicates the current input signal. Clip indicator This LED indicates overload. If it is on, turn the Trim controls (20/22) on the rear of the MA-8120 to guarantee undistorted performance. Output channel selectors Press the buttons to route each input signal to the selected output channel. -
Page 8: Backside
IEC 230V AC power connector IN + Fuse T4AL/250V Installation Remove all packing materials from the MA-8120 Digital Zone Amplifier. Check if all foam and plastic padding is removed. Fit the equipment to a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 9: Connection Cables
MA-8120 Digital Zone Amplifier Connection Cables Take care of your cables by always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their lifespan and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 10: Block Diagram
MA-8120 Digital Zone Amplifier Block Diagram Fig. 04 Ordercode: D6195... -
Page 11: Maintenance
MA-8120 Digital Zone Amplifier Maintenance The MA-8120 Digital Zone Amplifier requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 12: Dimensions
MA-8120 Digital Zone Amplifier Dimensions Ordercode: D6195... -
Page 13: Notes
MA-8120 Digital Zone Amplifier Notes Ordercode: D6195... - Page 14 MA-8120 Digital Zone Amplifier Ordercode: D6195...
- Page 15 MA-8120 Digital Zone Amplifier Ordercode: D6195...
- Page 16 ©2017 DAP Audio...
