Summary of Contents for DAPAudio Vintage DPA-1200

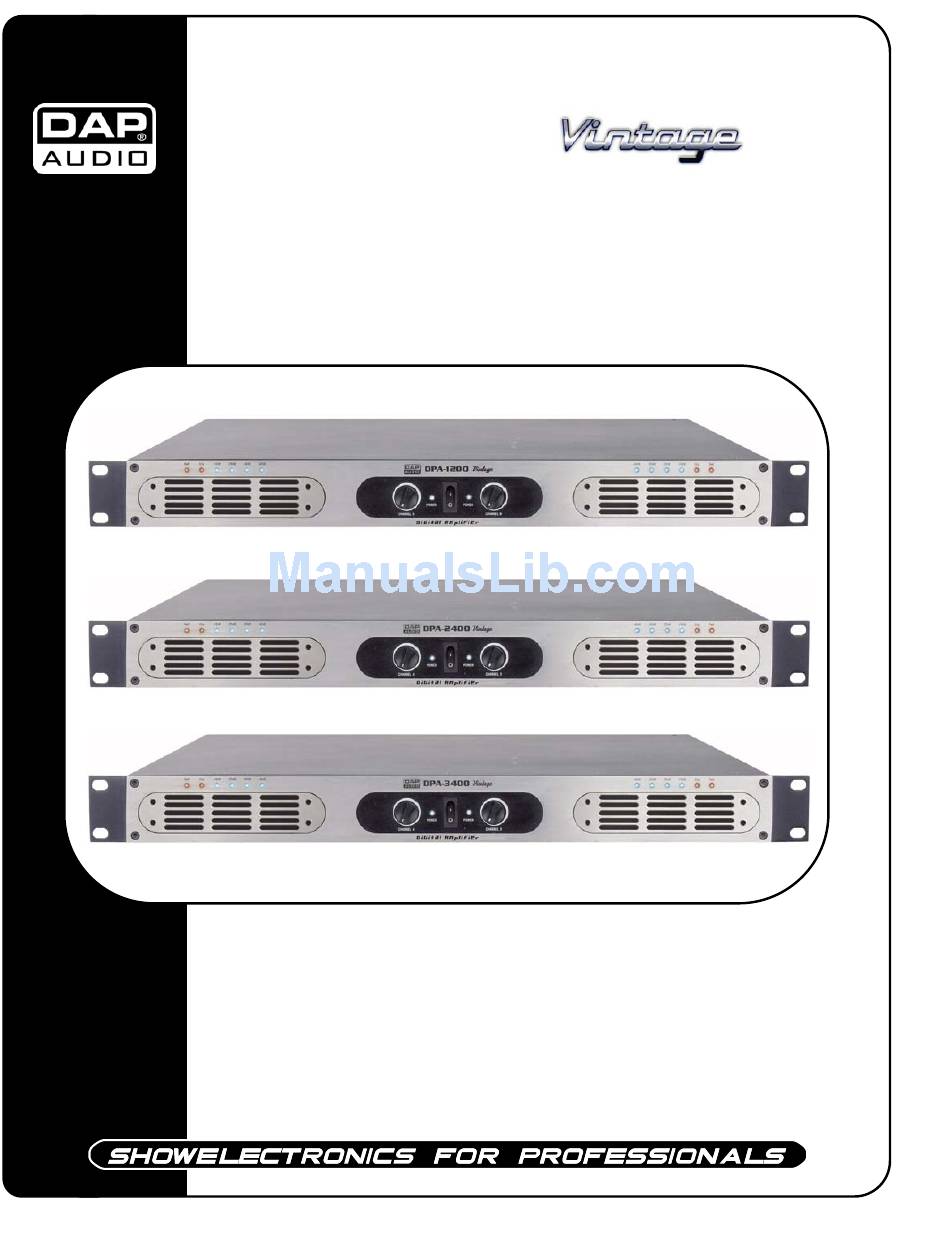

- Page 1 Digital DPA-1200 ORDERCODE D4180 DPA-2400 ORDERCODE D4181 DPA-3400 ORDERCODE D4182...
- Page 2 Congratulations! You have bought a great, innovative product from Audio. Dap Audio Vintage Digital Power Series brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio Vintage Digital Power Series Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features Frontside………………………………………………………………………………….……...…. Backside…….……………………………………………………………………………………….……...…. Installation............……..……………………………….……………………….. Set Up and Operation..............……..…………………………….…… Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely •... -
Page 6: Description
Description of the device Features Vintage Digital Power is a digital amplifier from DAP Audio. There are 3 different versions: DPA-1200, DPA-2400, DPA-3400. DPA-1200 DPA-2400 DPA-3400 • 2x 350 Watt RMS – 8 • 2x 650 Watt RMS – 8 •... -
Page 7: Installation
Installation Vintage Digital Power Installation Remove all packing materials. Check that all foam and plastic padding has been removed. Screw the equipment into a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 8 Every amplifier incorporates several circuits to protect themselves and the speakers under virtually any situation. Dap Audio has attempted to make the amplifier as “foolproof” as possible by making it impervious to short and open circuits, DC Voltage and overheating.
-
Page 9: Maintenance
2. Check power from the wall, all cables, the fuse, etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If nothing happens after 30 seconds, turn off the amplifier and unplug the device. 5. Return the machine to your DAP Audio dealer. -
Page 10: Product Specifications
Product Specifications Specification DPA-1200 DPA-2400 DPA-3400 Stereo Power (RMS) 350W 650W 1000W Stereo Power (RMS) 600W 1200W 1700W Frequency Response 5 Hz -30KHz: + 0.1 / - 3 dB (1W / 8 ) THD into 4 , 1 KHz <0.1% @200W <0.1% @250W... - Page 11 2005 Dap Audio.
