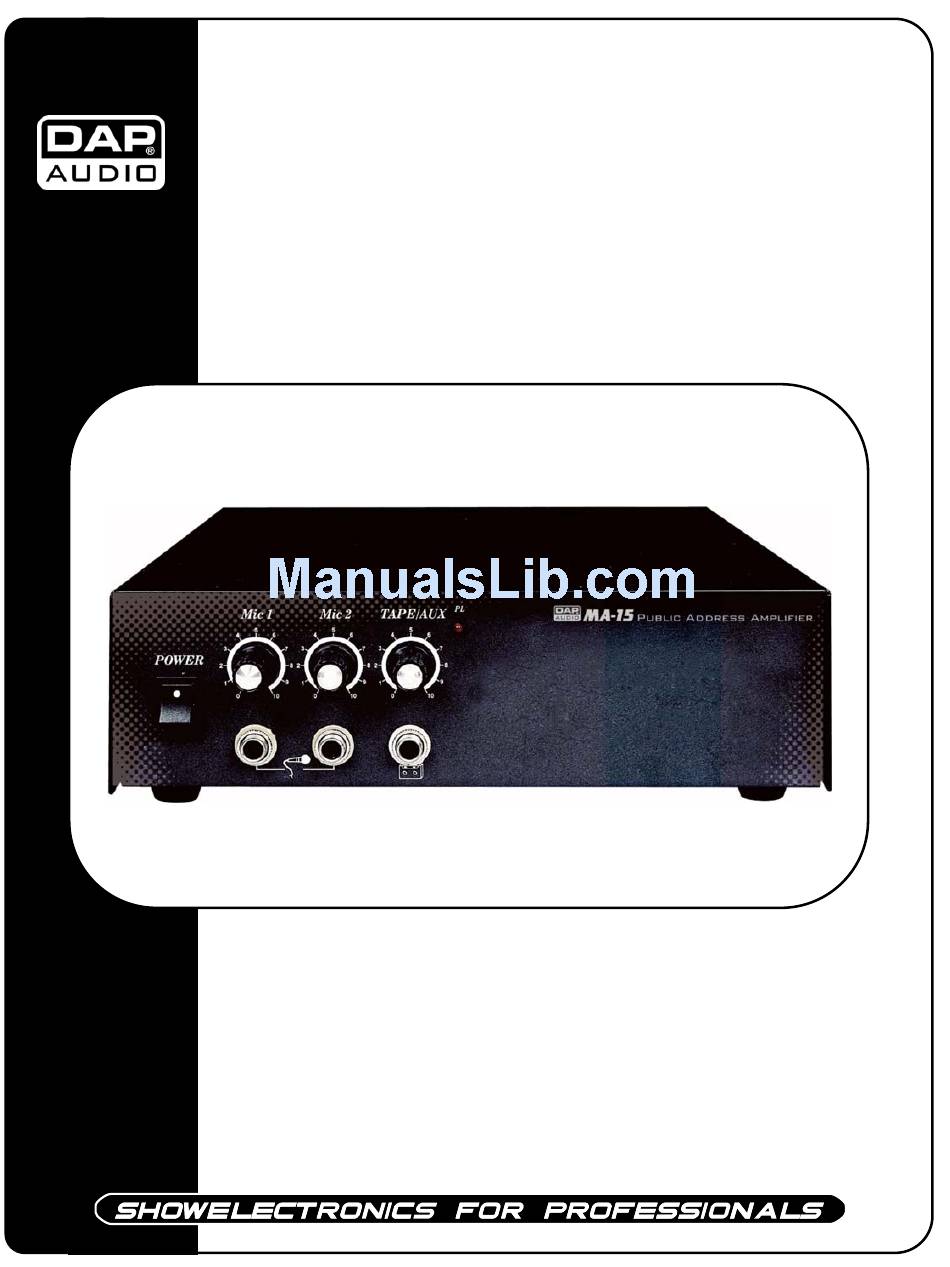

- Page 1 MA15 ORDERCODE D6101...
- Page 2 Congratulations! You have bought a great, innovative product from Audio. Dap Audio MA15 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio MA15 Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features Frontside………………………………………………………………………………….……...…. Backside…….……………………………………………………………………………………….……...…. Installation............……..……………………………….………………………. Set Up and Operation..............……..…………………………….…… Set Up Example……..........…………………………………....……...… Schematic Diagram…..........…………………………………....……..Connection Cables......…........………..………….…….………….….. Maintenance...................………..………….…….……………... Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• better value on the market, if you save the carton and all packing materials. Prevent distortion! Make sure that all components connected to the MA15 have sufficient power • ratings. Otherwise distortion will be generated because the components are operated at their limits. -
Page 6: Description

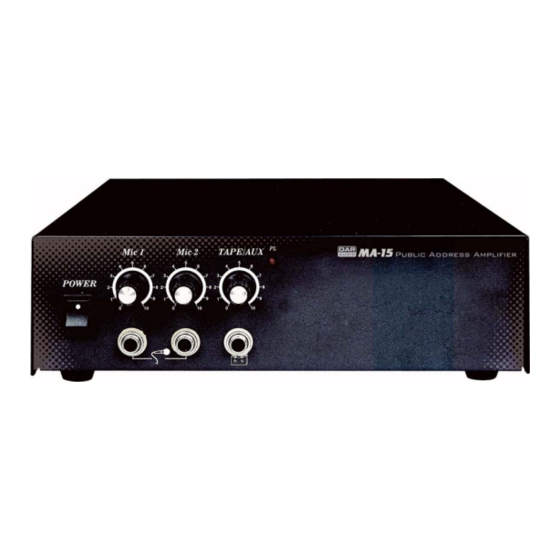

Description of the device Features MA15 is an amplifier from DAP Audio. • 2 mic, 1 aux input • Two unbalanced 6.3 mm jack inputs mic sensivity • One auxiliary RCA mono input • Final stages completely protected thermal shut down and short protection. -
Page 7: Installation
Installation MA15 Installation Remove all packing materials. Check that all foam and plastic padding has been removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Set Up Example
Set Up Example Fig. 4 Schematic Diagram Fig. 5... -
Page 9: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 10: Maintenance
Maintenance Dap Audio MA15 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 11: Product Specifications
Product Specifications Model: DAP Audio MA15 Power Supply: AC or DC 12V Power Output: 15W RMS Frequency Response: 100Hz-20KHz Harmonic distortion: <1% Inputs: MIC-1, MIC-2 (-45dB) 10 K AUX (-22dB) 10 K / 50 K Output: COM 4 Ohm Controls: 3 volume controls, 3x 6.3mm jack and 1 power switch... - Page 12 2005 Dap Audio.
