Summary of Contents for DAPAudio MPA-4150

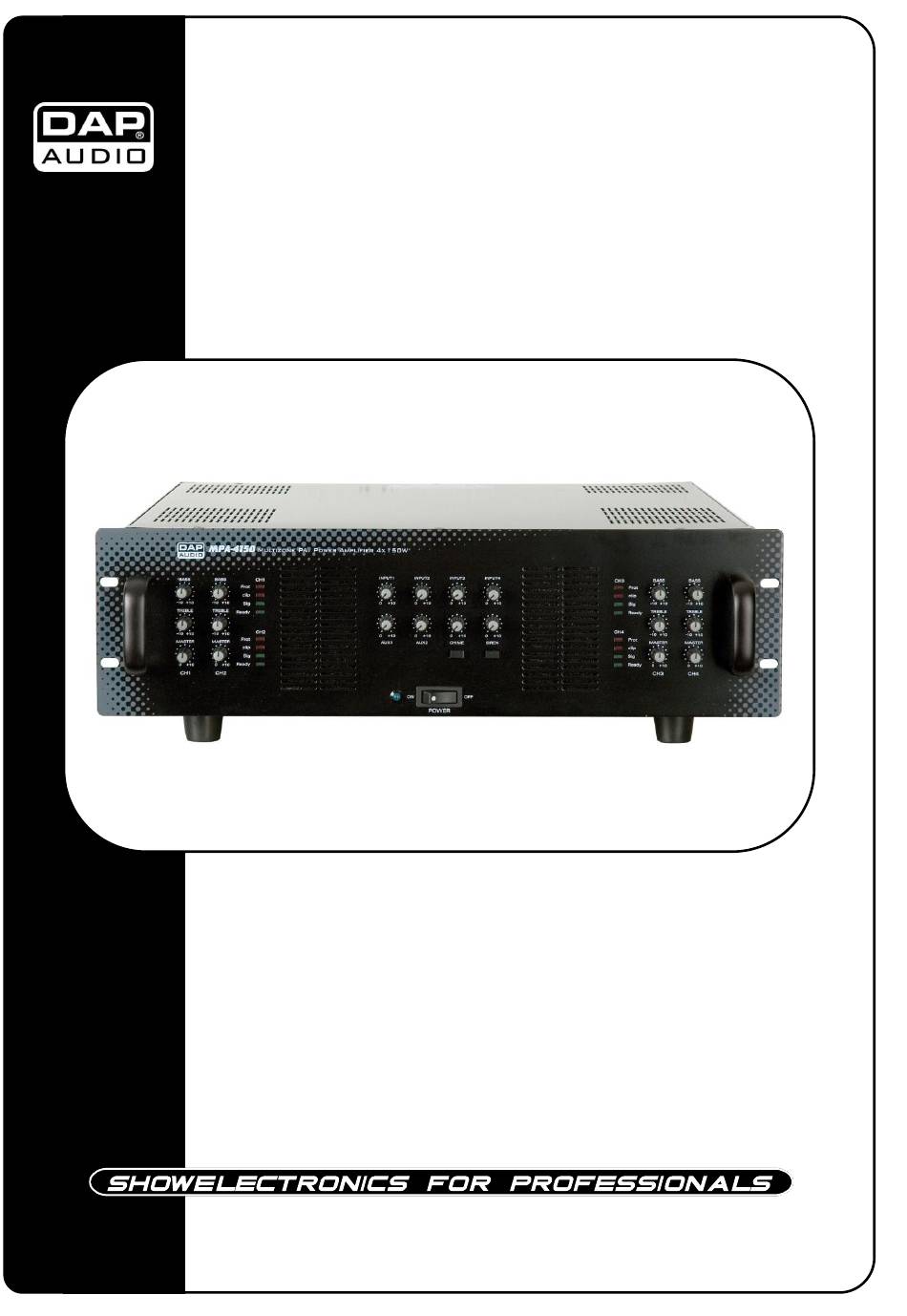

- Page 1 MPA-4150 ORDERCODE D6121...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio MPA- Series bring excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio DAP Audio MPA-4150 Product Guide Warning ................................. Safety-instructions............................Operating Determinations..........................Description................................Features................................Overview Front panel............................Overview Back panel............................Operation................................Connection Cables............................... Maintenance................................. Troubleshooting..............................Product Specifications............................Appendix 1: Block Diagram.......................... -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Make sure that the amplifier is turned down, before turning the power on or off. So you can avoid supersonic frequencies, which could damage your speakers. Don't put your equipment next to TV, radio, etc., because of interference or distortion. If you connect other parts of the system, be careful of ground loops. -
Page 6: Description
Description of the device Features The MPA-4150 is a professional high power Public Adress Amplifier: • 4 independent channels • 4 sets of bas treble and volume controls • 4 LED level meters with protection indicator • 4 balanced inputs for Mic/ line and input sensitivity control •... -
Page 7: Overview Back Panel
9. Aux 1. Use to adjust the aux 1 input level. 10. Power LED. Indicates that the amplifier is turned on. 11. AC Power Switch. This is the main Power switch. Press to turn the amplifier on. 12. Chime button. Activates the Chime circuit. - Page 8 26. 25V terminal. Connect this terminal to the + terminal of your 25V speaker(s). In case of using several speakers make sure all speakers are wired in parallel. The total power rating of the 25V-speakers for each channel should never exceed 150W. 27.
-
Page 9: Operation
Operation Installation Remove all packing materials from the MPA-4150. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Connecting Power / Circuit Size Requirements. The actual current draw, the amplifier demands from the AC mains, depends on many factors (its load, output level or the crest factor of its program material). - Page 10 Example 2: using the 4Ω output with four 4Ω speakers Fig. 4 Example 3: using the 8Ω output with two 4Ω speakers. Fig. 5 In a low impedance system, the total speakerload should always match the amplifier impedance This to avoid overloading the amplifier. The total speaker power should be at least the power of the amplifier to avoid damage to the speakers.
-
Page 11: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are in good condition: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 12: Maintenance
Fig. 8 Maintenance DAP Audio MPA-series requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 13: Product Specifications
Product Specifications Model: DAP Audio MPA-4150 Power supply: 230 VAC Fuse: 230V: 6.3AT 115V: 12A Inputs 1 – 4: Sensitivity: Mic: -55dB balanced Line: -16dB balanced High filter: 150Hz (-3dB) Phantom: 48V Telephone paging function sensitivity: 120mV Frequency response: Mic: 60Hz – 12kHz (-3dB) Line: 30Hz –... -
Page 14: Appendix 1: Block Diagram
Appendix 1: Block diagram MPA-4150 Fig. 9... - Page 15 2008 Dap Audio.
