Summary of Contents for DAPAudio MA-460
- Page 1 MA-460 ORDERCODE D6148 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio MA-460 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio MA-460 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Description of the device ............................. 6 Frontpanel .................................. 6 Backpanel .................................. 8 Operation ..................................10 Installation ................................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP MA-460 • 19” mounting ears • power cable - 2m •... -
Page 5: Operating Determinations
Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device

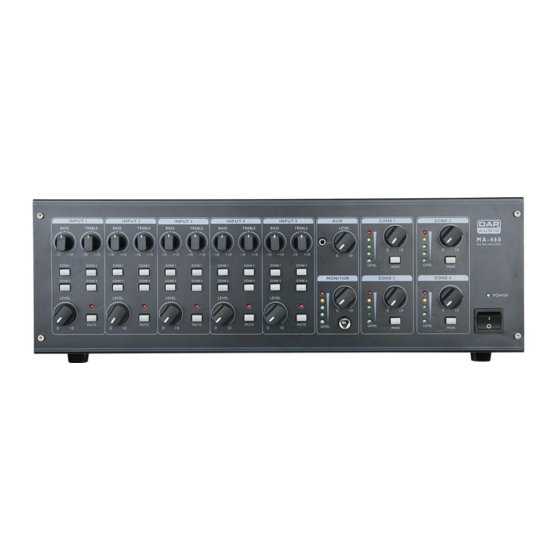

Description of the device Features The MA-460 is a matrix amplifier. This gives you the functionality to route any input to any output. With this functionality you can control 5 audio sources in 4 different areas from one unit. Each input is equipped with adjustable gain and two band tone control. - Page 8 7. Zone VU meter Indicates the signal level at the output of the corresponding zone. If the red LED blinks frequently or lights continuously, the output is likely to enter clipping. If this happens, we strongly suggest lowering the corresponding zone level (8) control. 8.
-
Page 9: Backpanel
Replace the fuse only with a fuse of the same specification (230V:T3,15A, 115V:T6,3A). 18. AC-selector Before connecting your MA-460 to the mains, make sure the AC-selector is set to the proper voltage used in your country. If you’re not sure, consult a skilled technician. - Page 10 Priority remote terminal Use this terminal for connecting a remote switch or relay contact. If these two contacts are shorted, all inputs except combo input 1 (30) will be muted when combo input 1 (30) detects a sound. 26. Telephone paging terminal Use this terminal for connecting a telephone system equipped with a paging output.
-
Page 11: Operation
Use to adjust the input gain for input 2 (44). Operation Installation Remove all packing materials from the MA-460. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 12: High Impedance Outputs
Example 2: using the 4Ω output with four 4Ω speakers Fig. 6 Example 3: using the 8Ω output with two 4Ω speakers. Fig. 7 In a low impedance system, the total speakerload should always match the amplifier impedance. This to avoid overloading the amplifier. The total speaker power should be at least the power of the amplifier to avoid damage to the speakers. -
Page 13: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 14: Maintenance
Maintenance DAP Audio MA-460 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 15: Product Specifications
Product Specifications Output Power: 4 x 60W Power outputs: 4 Ohm, 8 Ohm,70V, 100V (terminal strip) Zone pre amp outputs: Terminal strip Input 1: Line/Microphone with variable gain and phantom power (XLR/Jack combo) Input 2: Line/Microphone with variable gain and phantom power (XLR/Jack combo) Input 3: Line/Microphone with variable gain and phantom power (XLR/Jack... - Page 16 2013 Dap Audio.
