Summary of Contents for DAPAudio Falcon 700
- Page 1 Falcon Falcon 700 ORDERCODE D4200 Falcon 1000 ORDERCODE D4201 Falcon 1500 ORDERCODE D4202 Falcon 1700 ORDERCODE D4203 Falcon 2000 ORDERCODE D4204...
- Page 2 You can get some of the best quality, best priced products on the market from DAP Audio. So next time, turn to DAP Audio for more great audio equipment. Always get the best -- with DAP Audio !
-
Page 3: Table Of Contents
DAP Audio DAP Audio Falcon 700, Falcon 1000, Falcon 1500, Falcon 1700, Falcon 2000 Product Guide Warning.................…...……………..…………………………….…………..Safety-instructions………………………………………………………………………………………………………..Operating Determinations.……………………………………………………………………………………………..Return Procedure……………………………………………………………………………........... Claims…………………………………………………………………………….............. Description................…...………………………………………….…………..Features and Overview ………………………………...….……………….………….……………………….……..Overview Front panel............................. Overview Back panel............................. Operation..............……..……………………………………………......Mode selection................................Stereo Mode……………………………………………………………………………………………………………..Bridge Mono Mode…………………………………………………………………………........... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Dap Audio dealer for service. Allow time to cool down, before cleaning or servicing.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious damage to people and property ! Return Procedure... -
Page 7: Description

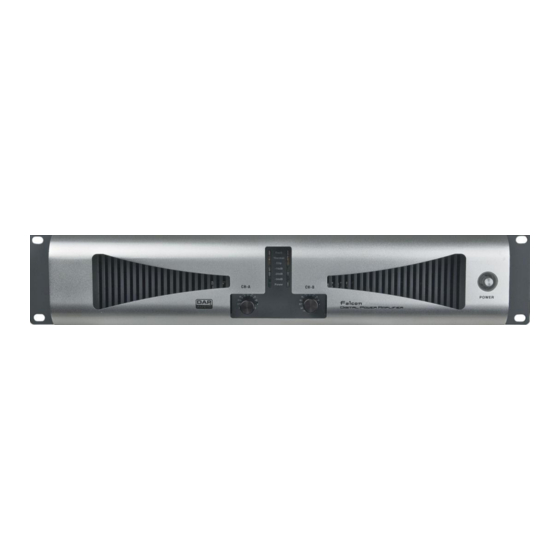

Description of the device Features The Falcon 700, Falcon 1000, Falcon 1500, Falcon 1700 and Falcon 2000 are professional high-end amplifiers : • Power rating 4Ω 8Ω RMS 2 X 420W RMS 2 X 240W Falcon 700 RMS 2 X 480W... -
Page 8: Overview Front Panel
Frontpanel Fig. 2 1. Thermal LEDs Indicates that the channel is in Thermal protect mode. 2. Fault LEDs Indicates that the unit is in protection mode due to a fault condition. The fault can be caused by over temperature of the heatsink or DC voltage on the output. While in protection mode, the speakers are disconnected from the amplifier by an internal relay. -
Page 9: Overview Back Panel
Backpanel Fig. 3 10. Fuse Replace the fuse only by a fuse of the same type (F8A, 6x32mm). 11. Output A Speakon Connector Using speakon-type speaker cables, make connections to both the channel A and channel B connectors for Stereo mode, to channel A connector for Bridged mono mode. 12. -
Page 10: Operation
Connecting Inputs. Use the XLR input connectors on the rear to supply audio signals to your DAP Audio Falcon Series amplifier. The connectors accept balanced and unbalanced audio connections. The Falcon Series amplifiers are configured standard with "Pin 2 hot" on XLR inputs. The Link connector can be used to loop the audio Input to another amplifier Input. -
Page 11: Mode Selection
Mode Selection The two-position, Mode Select switch (located on the rear panel) configures the amplifier for either Stereo or Bridged Mono Mode. Amplifiers are factory-configured for Stereo Mode. Stereo Mode In Stereo Mode, both channels operate independently, with their input attenuators controlling their respective levels. -
Page 12: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 13: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the amplifier, as this may damage the unit and the warranty will become void. 5. Return the amplifier to your Dap Audio dealer. -
Page 14: Product Specifications
Product Specifications 2 HE High Power Class-D Stereo PA Amplifier Output Power, 1000 Hz, THD+N at 1%, Both Channels Driven: Falcon 700 Falcon1000 Falcon 1500 Falcon 1700 Falcon2000 Stereo Power 8Ω: 2x 240Wrms 2x 280Wrms 2x 375Wrms 2x 420Wrms 2x 520Wrms 4Ω:... -
Page 15: Appendix 1: Wire Gauge Charts
Wire Gauge Chart (Metric) Stranded Cable Wire Gauge Power Loss % Power Loss % Power Loss % Length (m) (8 ohm load) (4 ohm load) (2 ohm load) 10,8 1,74 0,75 1,16 0,58 1,16 0,35 0,70 1,39 0,22 0,44 0,87 15,5 0,75 10,8... - Page 16 Wire Gauge Chart (AWG : American Wire Gauge Stranded Cable Wire Gauge Power Loss % Power Loss % Power Loss % Length(ft) (AWG) (8 ohm load) (4 ohm load) (2 ohm load) 0.81 1.61 0.51 1.02 0.32 0.64 1.28 0.128 0.25 0.51 1.61...
- Page 17 2010 Dap Audio.
