The switch-module information panel contains the following components:
v LEDs that display the status of the switch module and its network
connection. For further details about LEDs, see "Information LEDs."
v Six external Fibre Channel ports to connect Fibre Channel devices, such as
disk subsystems, tape drives, and other servers; and SAN devices, such as
Fibre Channel switches, extenders, and gateways. These connectors are
identified as ports 0, 15, 16, 17, 18, and 19 in the I/O-module configuration
menus and are labeled 0, 15, 16, 17, 18, and 19 (from top to bottom) on the
switch module. The internal connectors are numbered 1 through 14.
Note: For the IBM Eserver BladeCenter T Types 8720 and 8730 units, ports 9
through 14 are disabled.

Information LEDs

The front panel of the Fibre Channel switch module has multiple sets of LEDs.
The LEDs in the first row at the top of the switch module represent the switch
module status. The remaining sets of LEDs represent status for the external
Fibre Channel ports. The port LEDs include port speed, port status, and port
diagnostics.

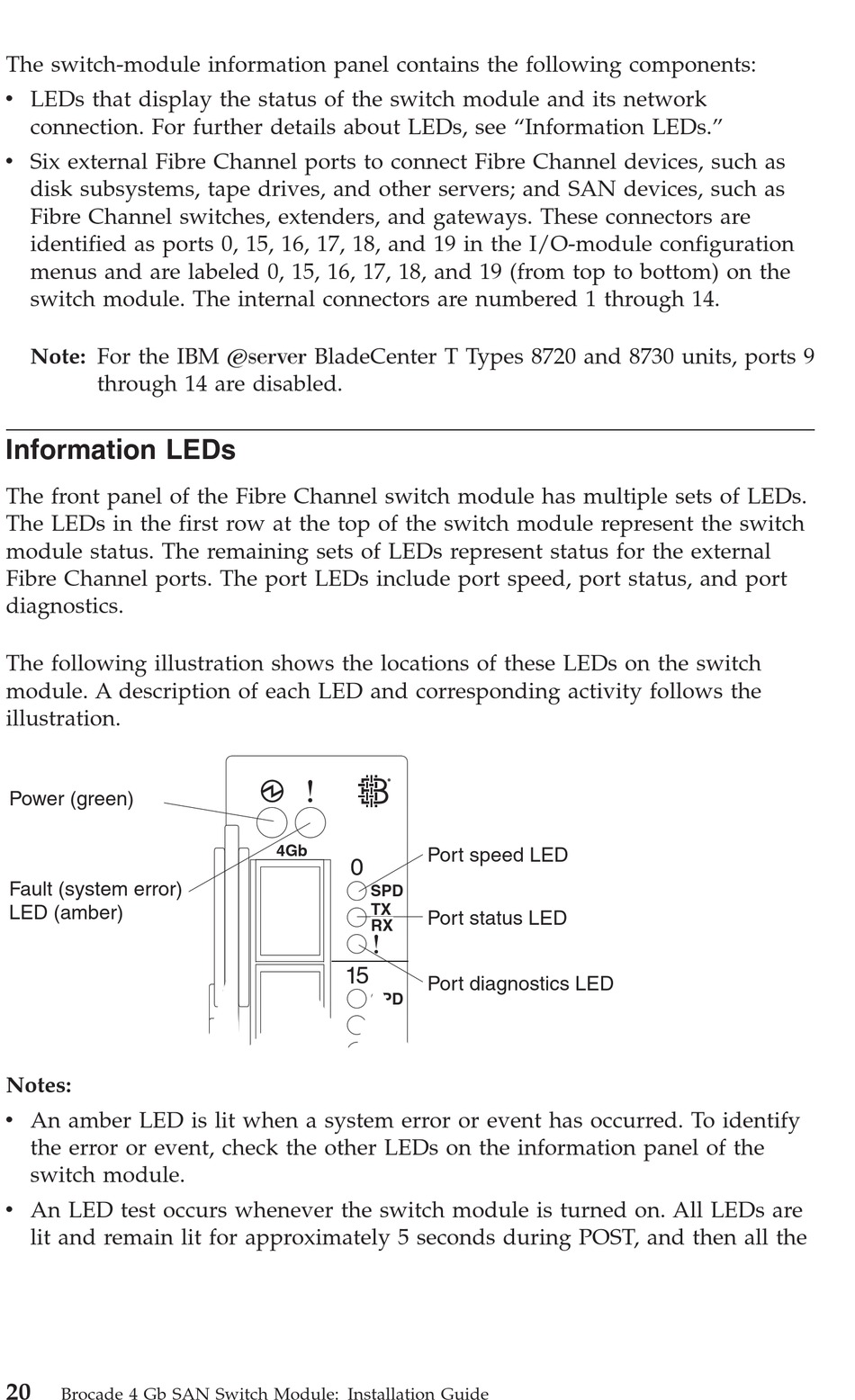

The following illustration shows the locations of these LEDs on the switch
module. A description of each LED and corresponding activity follows the
illustration.
Power (green)
Fault (system error)
LED (amber)
Notes:
v An amber LED is lit when a system error or event has occurred. To identify
the error or event, check the other LEDs on the information panel of the
switch module.
v An LED test occurs whenever the switch module is turned on. All LEDs are
lit and remain lit for approximately 5 seconds during POST, and then all the
20
Brocade 4 Gb SAN Switch Module: Installation Guide
4Gb
Port speed LED
0
SPD
TX
Port status LED
RX
15
Port diagnostics LED
SPD
TX
RX
