The following notices and statements are used in this document:
v Note: These notices provide important tips, guidance, or advice.
v Important: These notices provide information or advice that might help you
avoid inconvenient or problem situations.
v Attention: These notices indicate potential damage to programs, devices, or
data. An attention notice is placed just before the instruction or situation in
which damage could occur.
v Caution: These statements indicate situations that can be potentially
hazardous to you. A caution statement is placed just before the description
of a potentially hazardous procedure step or situation.
v Danger: These statements indicate situations that can be potentially lethal or
extremely hazardous to you. A danger statement is placed just before the
description of a potentially lethal or extremely hazardous procedure step or
situation.

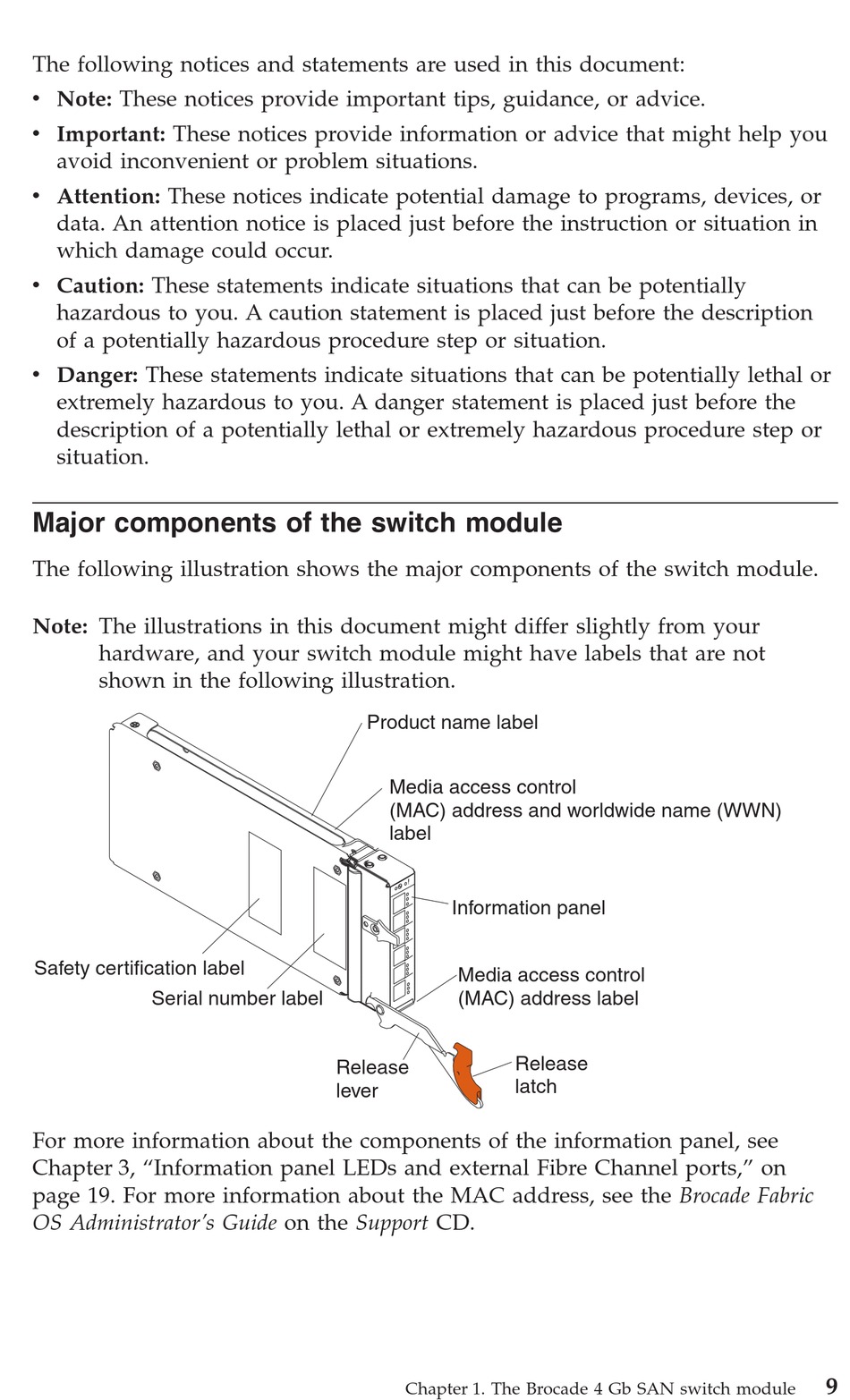

Major components of the switch module

The following illustration shows the major components of the switch module.
Note: The illustrations in this document might differ slightly from your
hardware, and your switch module might have labels that are not
shown in the following illustration.
Safety certification label
Serial number label
For more information about the components of the information panel, see
Chapter 3, "Information panel LEDs and external Fibre Channel ports," on
page 19. For more information about the MAC address, see the Brocade Fabric
OS Administrator's Guide on the Support CD.
Product name label
Media access control
(MAC) address and worldwide name (WWN)
label
Information panel
Media access control
(MAC) address label
Release
lever
Chapter 1. The Brocade 4 Gb SAN switch module
Release
latch
9
