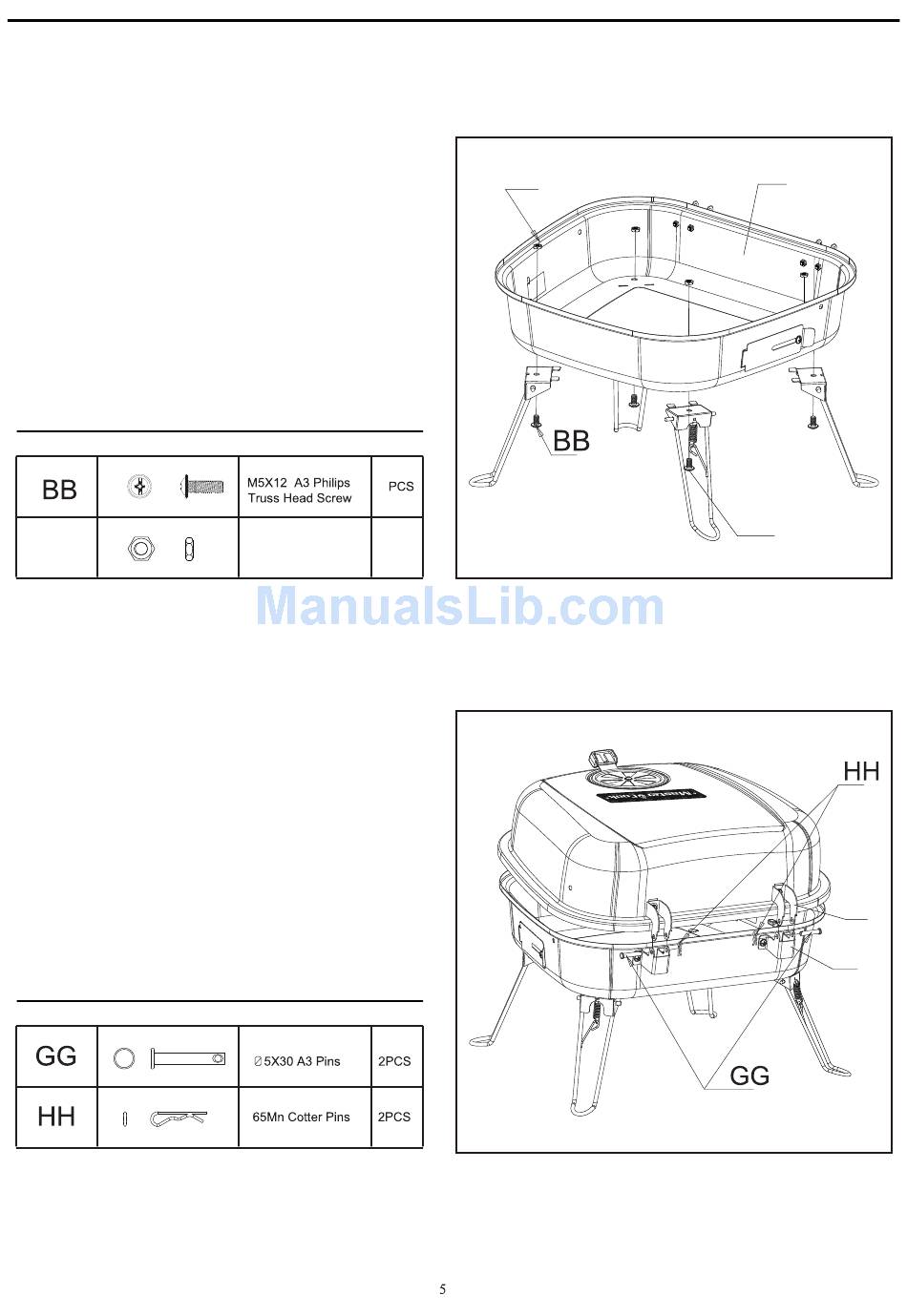

Assembly lnstructions
Step 3
Attach leg assembly(H) to bottom bowl(F) with 4pcs M5x12
A3 philips truss head screws(BB) and 4pcs M5 nuts(I I).
Hardware Used
I I
Step 4
Insert top hinge(D) into bottom hinge(E) and secure them
together with 2pcs Ø5x30 A3 pins(GG) and 2pcs 65Mn
cotter pins(HH).
Note: If top hinge(D) does not fit into bottom hinge(E), gently
squeeze top hinge tabs together.
Hardware Used
4
M5 Nuts
4
PCS
I I
F
H
D
E
