Nuvico EasyView Installation Manual

Mini ptz speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

0
Mini PTZ Speed Dome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyView and is the answer not in the manual?

Questions and answers

Related Manuals for Nuvico EasyView

Summary of Contents for Nuvico EasyView

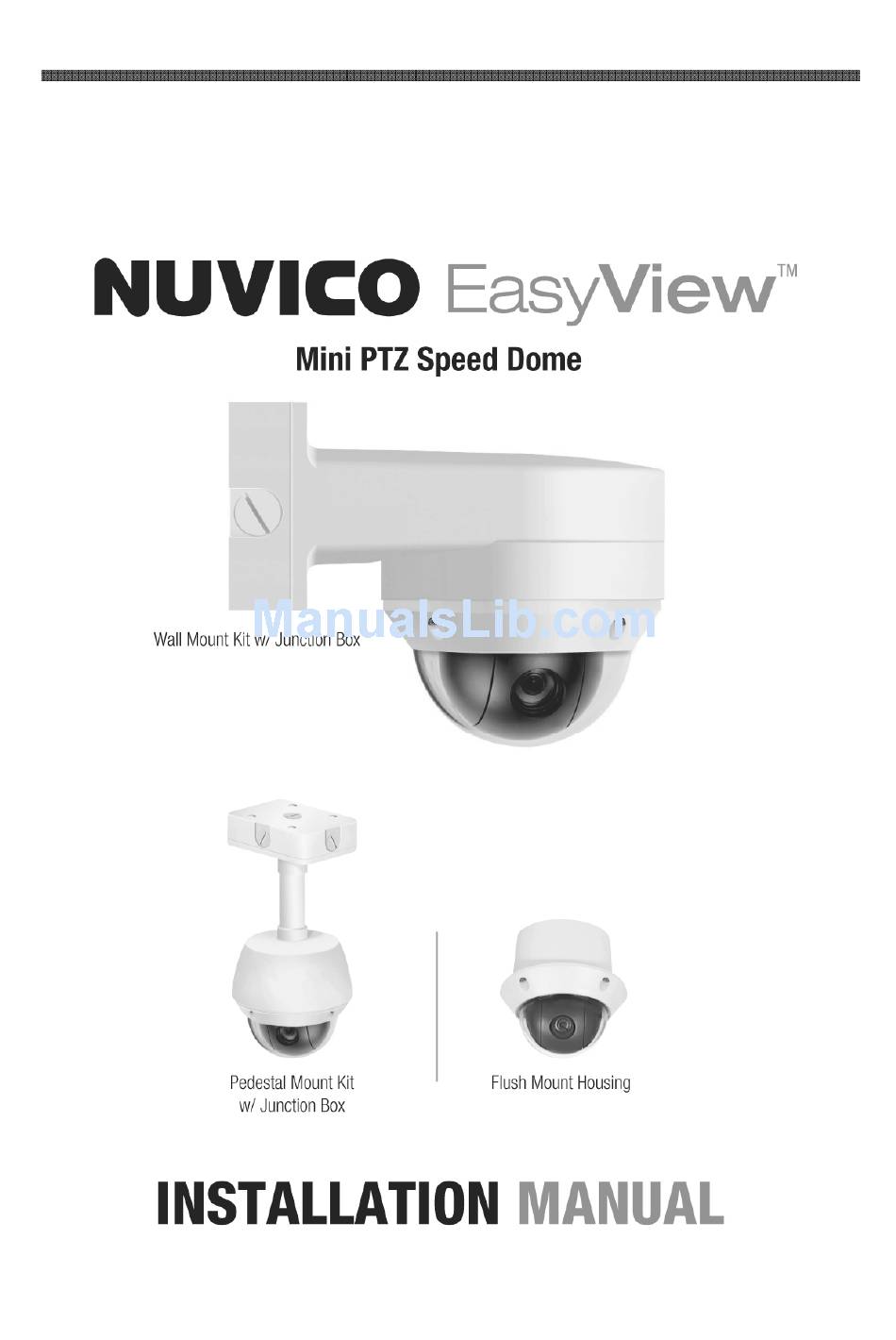

  • Page 1 Mini PTZ Speed Dome...

  • Page 2: Content Verification

    Before installing the controller, please make sure that the following items are included in the box: 1. Mini Speed Dome Camera 2. Instruction Manual 3. Mounting Hardware If any of these materials are missing, please contact the vendor or NUVICO customer help desk immediately. Mini PTZ Speed Dome...

  • Page 3: Disclaimer

    NUVICO. • NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral devices, or unapproved/unsupported devices.

  • Page 4: Warning And Caution

    WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 5: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS CONTENT VERIFICATION..................... 1 DISCLAIMER........................2 WARNING AND CAUTION..................... 3 FCC COMPLIANCE STATEMENT ................. 4 CE COMPLIANCE STATEMENT ................... 4 IMPORTANT SAFEGUARDS..................5 1. INTRODUCTION......................8 1.1 FEATURES............................8 2. INSTALLATION AND CONFIGURATION ..............9 2.1 TYPICAL SYSTEM CONFIGURATION ..................... 9 2.2 BASIC CONFIGURATION OF MINI PTZ CAMERA SYSTEM ............
  • Page 8 3.4.5 SHARPENSS CONTROL ( MENU => CAMERA =>SHAPENESS ) .................37 3.4.6 DIGITAL ZOOM ( MENU => CAMERA =>DIGITAL ZOOM ) ....................37 3.4.7 NIGHT SHOT MENU ( MENU => CAMERA =>NIGHT SHOT ) ..................38 3.4.8 CAMERA INITIALIZE ( MENU => CAMERA =>CAMERA INITIALIZE ) ................38 3.5 SETUP ( MENU =>...

  • Page 9: Introduction

    1. INTRODUCTION 1.1 FEATURES The Speed Dome Camera features a high resolution 1/4” Interline Transfer CCD imager for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short- cuts make it easy to setup and program functions. System information aides troubleshooting by displaying the hardware and software version of the camera’s firmware version, baud rate, and protocol.

  • Page 10: Installation And Configuration

    2. INSTALLATION AND CONFIGURATION 2.1 TYPICAL SYSTEM CONFIGURATION Additional Speed Dome joystick controllers and a variety of external switching devices such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. Figure 1 illustrates sample installation.

  • Page 11: Basic Configuration Of Mini Ptz Camera System

    2.2 BASIC CONFIGURATION OF MINI PTZ CAMERA SYSTEM POWER AC 24V STP AWG # 22 BNC MONITOR 4 ALARM INPUT 1 AUX OUTPUT RS-485 HALF DUPLEX MODE CONTROLLER DOME Figure 2 - Basic Installation Diagram Mini PTZ Speed Dome...

  • Page 12: Connecting The Mini Ptz Directly Into The Dvr

    2.3 CONNECTING THE MINI PTZ DIRECTLY INTO THE DVR • Locate the RS485 + & - conductor wire from the Speed Dome Camera. • Connect the + & - into the TRX+ & TRX- ports of the DVR. Tx+ & Tx- ports can be found in the rear part of the DVR.

  • Page 13: Connecting Both Mini Ptz And Dvr Via J-Box

    2.5 CONNECTING BOTH MINI PTZ AND DVR VIA J-BOX Figure 5 - Connecting Camera & DVR into Controller Mini PTZ Speed Dome...
  • Page 14 The dome camera must be installed by qualified service personnel. Before installing the dome camera system, this instruction manual must be read thoroughly and understood fully. Dome cameras must be set up properly before starting the installation. This involves properly setting configuration switches. Figure 6 shows the location of these switches.

  • Page 15: Principle Of Termination

    2.6 PRINCIPLE OF TERMINATION Every device that is connected at the end of the communication data line must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors. See Figure 6 for termination switch settings and Figure 7 for examples of devices requiring termination.
  • Page 16 S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON S4:DVR port Termination ON DVR Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON...

  • Page 17: Mini Ptz Address (Id)

    2.7 MINI PTZ ADDRESS (ID) Each dome camera must have a unique address (ID). Identical IDs on the same line may damage the control circuit caused by an electrical short. When installing multiple dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to the camera port of the DVR.

  • Page 18: Setting Protocols

    2.8 SETTING PROTOCOLS A Mini PTZ camera is capable of negotiating with multiple protocols if the communication speed is matched (same baud rate i.e., 9600 bps). See Figure 10 for the appropriate protocol switch settings. Note: Consult service personnel if a dome camera is installed with a device other than a recommended Speed Dome Controller.
  • Page 19 • Connecting Video output Figure 2 – Basic installation diagram • Connecting Alarms AL1 to 4 (Alarm In) Magnetic, PIR or other external sensor devices can be used to signal the dome camera reacting to an event. See Chapter 3.2 — Program and Operation for configuring alarm input. GND (Ground) NOTE: All the connectors marked GND are common.

  • Page 20: Mounting The Mini Ptz Camera

    3.0 MOUNTING THE MINI PTZ CAMERA Once all DIP switches are set properly and all external connections are made, the dome camera can be mounted. The Mini PTZ camera is designed to mount on a structural body supporting loads up to 3 Kg.

  • Page 21: Power On & Boot-Up Sequence

    3.1 POWER ON & BOOT-UP SEQUENCE When the power is applied to the dome camera, it will start the boot-up sequence. When boot-up is done, the following information is displayed on the monitor screen. RAM TEST CHECK NO. : OK! CHECK AAAA : OK! CHECK 5555 : OK! SD SERIES...

  • Page 22: Program & Operation

    3. PROGRAM & OPERATION Dome Camera Selection Prior to start programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. Example : Pressing 1 , 6 and CAM key sequentially will select dome camera 16.

  • Page 23: Functions

    3.1 FUNCTIONS By pressing the MENU button on the keyboard controller, the following On-screen MAIN MENU will be shown on the monitor screen. MAIN MENU FUNCTIONS ALARM SCREEN CAMERA SETUP EXIT Select the FUNCTIONS and then move the joystick to the right to access FUNCTIONS menu.

  • Page 24: Preset ( Menu => Functions => Preset Shortcut:prst )

    TIME : 10~240 Seconds OPERATION : DISABLE The HOME function applies to the predefined functions such as Preset, Tour, Pattern, or Scan function after the keyboard controller has been idle for a programmed time. Follow the steps below to program the Home function: 1.
  • Page 25 There are 8 pages of preset programming menu. Each page can hold up to 8 presets. Locate the “ PREV NEXT”, preset menu pages can be scrolled by moving the Joystick to the Left or Right on the “PREV NEXT” . PRESET 01/8 NO.

  • Page 26: Pattern ( Menu => Functions => Patterns Or Shortcut: Ptrn )

    9. Repeat the steps 2 through 8 for each additional preset position. 10. Select Save and Exit by moving the Joystick to the right. Press ESC to exit the Preset menu without saving. NOTE: Press the Home or OFF button at programmed position to delete the preset.

  • Page 27: Scan ( Menu => Functions => Scan Or Shortcut: Scan )

    4. Press and hold down the SHFT/PGM key while controlling the camera direction and zoom with the Joystick. The pattern movement will automatically be recorded until releasing the SHFT/PGM key. This procedure can be repeated to reprogram the pattern. (Or twist zoom handle or hit zoom button to start PTZ control for view selection and hit the Focus button to stop.) 5.
  • Page 28 Follow the steps below to program Scans. 1. Press the SCAN key to enter Auto Scan menu directly. ( Or MENU => FUNCTIONS => SCAN) . 2. Select an Auto Scan number by moving the Joystick left or right. 3. Twist the Joystick to enter the title by scrolling through the alphanumeric characters and move the handle to the right or left to move to the next space.

  • Page 29: Tour ( Or Menu => Functions => Tour, Shortcut: Tour )

    3.1.5 TOUR ( or MENU => FUNCTIONS => TOUR, Shortcut: TOUR ) There are 4 programmable Tours. Each Tour consists of up to 8 Preset positions, Patterns, Scans or other Tours. Using second-level Tours, it can be expanded up to 56 functions in a single Tour.
  • Page 30 Follow the steps below to program the Tours: 1. Press MENU => FUNCTIONS => TOUR, Short Cut : TOUR MENU to display the main menu on the monitor. No. + SHFT + TOUR will open directly Tour No. 2. Choose an empty location of function by moving the Joystick up or down. 3.

  • Page 31: Alarm ( Menu => Alarm)

    3.2 ALARM ( MENU => ALARM) MAIN MENU FUNCTIONS ALARM SCREEN CAMERA SETUP EXIT Highlight ALARM in the main menu and move the joystick to the right to access ALARM setup. ALARM SETUP NO FUNC PRI OUT HLD LATCH 01 P01 OFF OFF 001 02 048 OFF OFF 001...

  • Page 32: Screen

    1. Press Menu to display the main menu on the monitor. Select the Alarm option by moving the Joystick up/down and then move to the right to enter the detail menu. 2. Select the alarm input number by moving the Joystick up or down and select the column to setup.

  • Page 33: Language ( Menu => Screen => Language )

    3.3.1 LANGUAGE ( MENU => SCREEN => LANGUAGE ) Moving the joystick handle to the right to select LANGUAGE options. LANGUAGE SETUP LANGUAGE ENGLISH SAVE AND EXIT Preferred language will be scrolled by moving the joystick to the right on LANGUAGE ENGLISH.

  • Page 34: North Direction ( Menu => Screen => North Direction )

    1. Select the Privacy Zone option by moving Joystick Up or Down and move the joystick to right to enter the detail menu. 2. Select the privacy zone number by moving the Joystick up or down. 3. To enter the zone name, rotate the handle clockwise or counterclockwise. Select alphanumeric characters by rotating the handle.

  • Page 35: Zone Title ( Menu => Screen => Zone Title )

    3.3.4 ZONE TITLE ( MENU => SCREEN => ZONE TITLE ) Enter a specific name in sectioned angle between START and END. ZONE TITLE 01/04 DISPLAY : ON TITLE START 01 WINDOW 123.4 345.6 ----- ---- ----- ---- ----- ---- ----- ---- ----- ---- PREV...

  • Page 36: Camera Title ( Menu => Screen => Camera Title )

    3.3.5 CAMERA TITLE ( MENU => SCREEN => CAMERA TITLE ) Move the joystick handle to the right to select CAMERA TITLE options. This function allows the users to set the title of camera as well as the usage of on screen display of the title.

  • Page 37: Focus Control( Menu => Camera => Focus Control )

    3.4.1 FOCUS CONTROL( MENU => CAMERA => FOCUS CONTROL ) CAMERA MENU FOCUS CONTROL: AUTO MODE : AUTO / ONE-PUSH / MANUAL AUTO : Focus is automatically adjusted with moving zoom. ONE-PUSH : Focus is automatically adjusted just once, after zoom position is changed. MANUAL : Focus can be manually adjusted, independent of moving zoom.

  • Page 38: Ae Control ( Menu => Camera => Exposure Setup )

    3.4.3 AE CONTROL ( MENU => CAMERA => EXPOSURE SETUP ) EXPOSURE SETUP BRIGHT : 025 IRIS : AUTO SHUTTER : ESC(NOR) : NORMAL DNR(SSNR) : OFF : AUTO EXIT MENU BRIGHT : 0~100 IRIS : AUTO / M.100 SHUTTER : ESC(NOR) / 1/60 / A.FLK : NORMAL / HIGH / OFF DNR(SSNR)

  • Page 39: Night Shot Menu ( Menu => Camera =>Night Shot )

    3.4.7 NIGHT SHOT MENU ( MENU => CAMERA =>NIGHT SHOT ) The NIGHT SHOT option removes the IR Cut filter of the camera and makes the camera sensitive to near infrared. If NIGHT SHOT mode of the selected camera is set to Manual, 10 + ON will enable the NIGHT SHOT mode, 10 + OFF will turn off the NIGHT SHOT mode.

  • Page 40: Setup ( Menu => Setup )

    3.5 SETUP ( MENU => SETUP ) CONFIGURATION MENU FLIP FUNTION : ON P/T SPEED : FAST PRESET FREEZE : OFF PANNING RANGE CALIBRATION LINE LOCK CONTROL FACTORY DEFAULT ERASE DATA SYSTEM INFORMATION SAVE AND EXIT 3.5.1 FLIP ( MENU => SETUP => FLIP ) When the Speed Dome camera is mounted on a ceiling, it can track a moving target in a path directly below the camera: ON - When the camera reaches the moving object directly above the floor, the dome...

  • Page 41: Calibration ( Menu => Setup => Calibration )

    When the dome camera is installed near a wall or on a corner, panning range can be limited by user. 3.5.5 CALIBRATION ( MENU => SETUP => CALIBRATION ) CALIBRATION RESET ORIGIN ORIGIN OFFSET : 000.0 , 000.0 ACTIVE OFFSET : DISABLE/ENABLE AUTO CALIBRATION : OFF SAVE AND EXIT RESET ORIGIN...

  • Page 42: Factory Default ( Menu => Setup => Factory Default )

    3.5.7 FACTORY DEFAULT ( MENU => SETUP => FACTORY DEFAULT ) FACTORY DEFAULT ARE YOU SURE : (Y/N) YES : ENTER OR MENU KEY : ESC KEY Programmed data go back to initial state as ex-factory 3.5.8 ERASE DATA ( MENU => SETUP => ERASE DATA ) ERASE PROGRAMMED DATA ARE YOU SURE : (Y/N) YES : ENTER OR MENU KEY...

  • Page 43: Appendix A - Specifications

    APPENDIX A — SPECIFICATIONS Lens Camera(MS-Z10N/MS-Z10P) Image Sensor 1/4" Interline Transfer CCD(Sony) NTSC : 768x494 Approx. 380K pixels Picture elements PAL : 752x582 Approx. 440K pixels Horizontal Resolution 500 TV Lines 10x optical zoom with auto focus Lens 10x digital zoom F1.8 to F3.0, f=3.8mm to 38mm View angle Approx.
  • Page 44 Flip Rotate 180° at bottom of tilt Autoscan 4 auto scan include vector scan/1 Auto Pan Preset Position 128 positions with camera status (16-character title) Tour 4 tours Pattern 4 patterns, 120 second On-Screen Display Displays camera ID and area name on screen Environment 0°C to 50°C (32°F to 122°F) Operating temperature...

  • Page 45: Appendix B - Troubleshooting

    APPENDIX B — TROUBLESHOOTING If problems occur, verify the installation of the camera with the instructions in this manual. Isolate the problem from the equipments in the system and refer to the equipment manual for further information. Problem Solution Verify that power is connected to all components in the system.

  • Page 46: Glossary

    GLOSSARY ALARM ACTIONS The assigned responses of the dome camera when there is input status change. The dome may call Presets for each of the eight inputs. The dome reports the alarm states to the Keyboard controller for processing. AREA TITLE It is the name of the horizontal sector from a certain start point to end point of the selected dome.
  • Page 47 INPUT DEVICES External devices that provide information about the condition of system components that connect to the inputs on the dome camera. Typical input devices include door contacts, motion detectors and smoke detectors. IR MODE A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation.
  • Page 48 WHITE BALANCE Adjustments in the color hue (red and blue) gains for a camera so that true white appears white in the image. It is normally compensated for by the automatic gain control. In some lighting conditions, you may need to manually adjust the red and blue settings for optimal viewing.
  • Page 49 Notes Mini PTZ Speed Dome...
  • Page 50 Notes Mini PTZ Speed Dome...
  • Page 51 Notes Mini PTZ Speed Dome...
  • Page 52 Mini PTZ Speed Dome...

This manual is also suitable for:

Easyview ms-z10nEasyview ms-z10p
