Nuvico CB-HD39N-L Installation Manual

Hide thumbs Also See for CB-HD39N-L:
Table of Contents

Advertisement

Quick Links

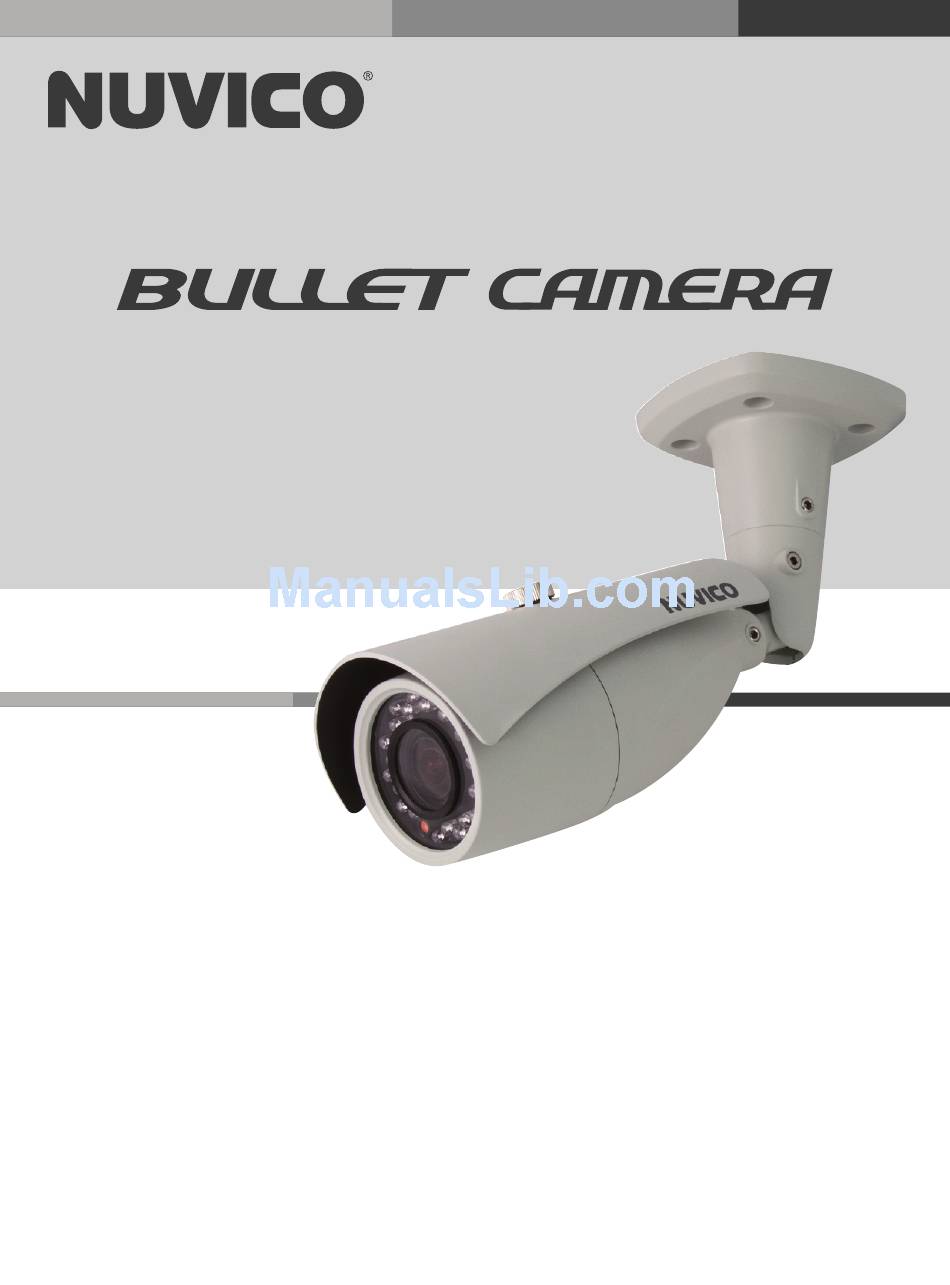

HI-RESOLUTION
Bullet Camera
CB-HD39N-L
CB-HD39P-L
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB-HD39N-L and is the answer not in the manual?

Questions and answers

Related Manuals for Nuvico CB-HD39N-L

Summary of Contents for Nuvico CB-HD39N-L

  • Page 1 HI-RESOLUTION Bullet Camera CB-HD39N-L CB-HD39P-L INSTALLATION MANUAL...

  • Page 3: Disclaimer

    NUVICO. • NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the cameras, peripheral devices, or unapproved/un supported devices.

  • Page 4: Warning And Caution

    Warning and Caution WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION! The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 5: Important Safeguards

    Important Safeguards • Read these instructions. • Heed all warnings. • Follow all instructions. • Do not use this equipment near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 6: Table Of Contents

    (6.3) Motion ..................23 (6.4) Privacy (6.5) DPC ..............24 (6.6) Version ................... 25 7. RESET / 8. EXIT ................. 25 OSD Menu Tables ................... 26 Technical Specifications ................ 29 CB-HD39N-L | NTSC ................29 CB-HD39P-L | PAL ................. 30 •...

  • Page 7: Introduction / Key Features

    Introduction ABOUT THIS MANUAL Thank you for purchasing our camera. Before installing and using this camera, please read this manual fully and carefully, and be sure to keep it handy for later use. Key Features • 1/3” CCD Sensor • 600 TV Lines (Color), 650 TV Lines (B/W) •...

  • Page 8: Content Verification

    Content Verification Before installing the camera, please make sure that all of the following items are included in the box. IR LED Bullet CAMERA 1. Bullet Camera 2. Bullet Camera Sun Shield 3. Installation Manual 4. OSD Controller and Service Cable (CA-ORC) *Does not require battery. 5.

  • Page 9: Parts & Descriptions

    Parts & Descriptions Bolt Sun Shield Front Case Back Case Service Monitor Output Cap Bracket Power Input (24VAC / 12VDC) Video Output Connector 24VAC / 12VDC For longer, more consistent performance, avoid installation locations prone to direct sunlight. •...

  • Page 10: Camera Dimensions / Adjusting The Pan, Tilt And Rotation

    Dimensions Unit: Inch (mm) See the diagrams below for the exact dimensions of the color bullet camera. 3.62” (92) 6.41” (163) 4.05” (103) 2.75” (70) 3.66” (93) 5.90” (150) Adjusting the Pan, Tilt and Rotation Loosen the corresponding screws before attempting to make Pan, Tilt and Rotation adjustments.

  • Page 11: Adjusting The Vari-Focal Dc Auto Iris Lens

    Adjusting the Vari-focal DC Auto Iris Lens Follow the instruction provided below to make any lens adjustments. 1. Unscrew the main body case from the back case. 2. Loosen the Zoom and Focus screws and make the desired adjustments as shown below.

  • Page 12: Switching The Ir Led On/Off

    Switching the IR LED On/Off IR LED Dip Switch This Dip Switch is used to switch OFF/ON the IR LEDs. Too much IR reflection from a subject causes over-exposure on the most focused area causing ‘Hot Spots’ within the picture. Adjust this setting can help avoid such problems. •...

  • Page 13: Connecting To Monitors

    Connecting to Monitors Follow the diagram below to make proper connections to the CRT Monitor or the Service Monitor. CCTV MONITOR SERVICE MONITOR OUTPUT SERVICE MONITOR (Not Included) OSD CONTROLLER AND SERVICE CABLE (CA-ORC) • Power Connection - 12VDC/24VAC Dual Voltage (Auto polarity detection and protection) •...

  • Page 14: Camera Osd Setup Controls

    Camera OSD Setup Controls OSD Controller and Service Cable Gain access the dome camera OSD setup controls using the controller provided with your new camera shown to the right. *Does not require battery for operation. Set Key - Used to access MAIN SETUP menu mode.

  • Page 15: Osd Menu Terms & Setting

    OSD Menu Terms & Settings SETUP The Setup is used to control and adjust the many features and options available on your bullet camera. Read thoroughly before making any adjustments. Note: These options have been pre-configured at the factory for optimal performance. Altering these settings are not recommended.

  • Page 16: (2.1) Shutter (2.2) Brightness (2.3) Agc (2.4) Dwdr

    OSD Menu Terms & Settings 2. EXPOSURE (Continued..) 2.1 SHUTTER (AUTO, FLK, 1/60 ^ - a 1/100,000) The SHUTTER speed can be selected manually according to user preference. Faster shutter speed would be desirable to track fast moving objects across your screen. The shutter speed of 1/60(NTSC), or 1/50(PAL) seconds are recommended.

  • Page 17: White Balance

    OSD Menu Terms & Settings 3. WHITE BALANCE This function is used to control the white balance under different lighting conditions. Adjust this setting to calibrate the camera for correct color rendering. The factory default of ‘ATW’ is recommended for optimal performance. SETUP LENS EXPOSURE...

  • Page 18: (4.1) Blc (4.2) Hlc

    OSD Menu Terms & Settings 4. BACKLIGHT This function is used to compensate for exposure problem associated with extremely bright backgrounds causing the subjects to bloom or silhouette. AREA SEL. AREA1 LEVEL AREA STATE MODE ALL DAY GAIN RETURN HEIGHT WIDTH LEFT/RIGHT TOP/BOTTOM...

  • Page 19: Image Adj

    OSD Menu Terms & Settings 5. IMAGE ADJ. IMAGE ADJ. LENS SHAD. 2DNR MIRROR FONT COLOR CONTRAST SHARPNESS DISPLAY NEG. IMAGES RETURN 5.1 LENS SHAD. (0~255) Convex shape of the lens causes the light to enter unevenly and typically makes the center of the screen brighter than the rest.

  • Page 20: (5.5) Contrast (5.6) Sharpness (5.7) Display (5.8) Neg. Image

    OSD Menu Terms & Settings 5. IMAGE ADJ. (Continued..) 5.5 CONTRAST (0~255) Use the CONTRAST function to adjust the contrast in the picture. 5.6 SHARPNESS (0~31) Use the SHARPNESS function to adjust the sharpness of the picture. 5.7 DISPLAY (CRT, LCD, USER) For best performance, select the type of display monitor that is used with the camera.

  • Page 21: Special

    OSD Menu Terms & Settings 6. SPECIAL The Special Setup is used to control the CAMERA TITLE, DAY& NIGHT, MOTION, PRIVACY, DPC, and display the VERSION number of the dome camera. SPECIAL CAM TITLE DAY&NIGHT AUTO MOTION PRIVACY VERSION 00 00 00 RETURN 6.1 CAM TITLE (On, Off) The CAMERA TITLE is used to assign a number or a custom title to easily identify...

  • Page 22: Day&Night

    OSD Menu Terms & Settings 6. SPECIAL (Continued..) 6.2 DAY&NIGHT (AUTO, COLOR, B/W, EXT) This function is used to control the color setting during daytime and night-time opera- tion. • AUTO: The Color mode is operated during daytime and automatically converts to B/W mode in the absence of light during night-time.

  • Page 23: (6.3) Motion

    OSD Menu Terms & Settings 6. SPECIAL (Continued..) 6.3 MOTION (On, Off) This function is used to detect motion in area monitored by the camera. The “Running Man” icon will be displayed on the bottom left corner once motion has been detected. There are 4 pre-defined white boxes representing the areas monitored for motion.

  • Page 24: (6.4) Privacy (6.5) Dpc

    OSD Menu Terms & Settings 6. SPECIAL (Continued..) 6.4 PRIVACY (On, Off) This function is used to mask specific areas within the frame of the camera to be concealed. There are total of 8 different colored boxes representing the masked areas. Each boxes can be individually adjusted to user preference.

  • Page 25: (6.6) Version

    OSD Menu Terms & Settings 6. SPECIAL (Continued..) 6.6 VERSION The camera firmware version is displayed here. 6.7 RETURN Select RET to save and exit, and to go back to the MAIN MENU. 7. RESET This function is used to reset all camera settings to the factory default setting. RESET FACTORY RESET...

  • Page 26: Osd Menu Tables

    OSD Menu Table OSD Menu At A Glance Use this section of the manual to get quick reference of the OSD menu. Please refer to the previous section for the detailed explanation of the features mentioned below. •...
  • Page 27 OSD Menu Table •...
  • Page 28 OSD Menu Table (*) Asterisk indicates features only available in the LED equipped vari-focal lens model. DAY&NIGHT function is not supported in the standard type cameras. •...

  • Page 29: Technical Specifications

    Technical Specifications | NTSC Technical Specifications CB-HD39N-L Video Format NTSC Image Sensor 1/3” CCD Horizontal Resolution 600 TV Lines, 650 TV Lines (B/W) Day/Night Functionality Yes w/ ICR Lens Type (DC Auto Iris) Vari-focal 2.8mm-11mm Angle of View 134°(W) ~ 36°(T)

  • Page 30: Cb-Hd39P-L | Pal

    Technical Specifications | PAL Technical Specifications CB-HD39P-L NTSC Video Format Image Sensor 1/3” CCD Horizontal Resolution 600 TV Lines, 650 TV Lines (B/W) Day/Night Functionality Yes w/ ICR Lens Type (DC Auto Iris) Vari-focal 2.8mm-11mm Angle of View 134°(W) ~ 36°(T) IR LEDs IR LEDs Distance Up to 50ft.
  • Page 32 The NUVICO logos are registered trademarks of NUVICO. Version 2.0 © Copyright 2011, NUVICO. All rights reserved.
