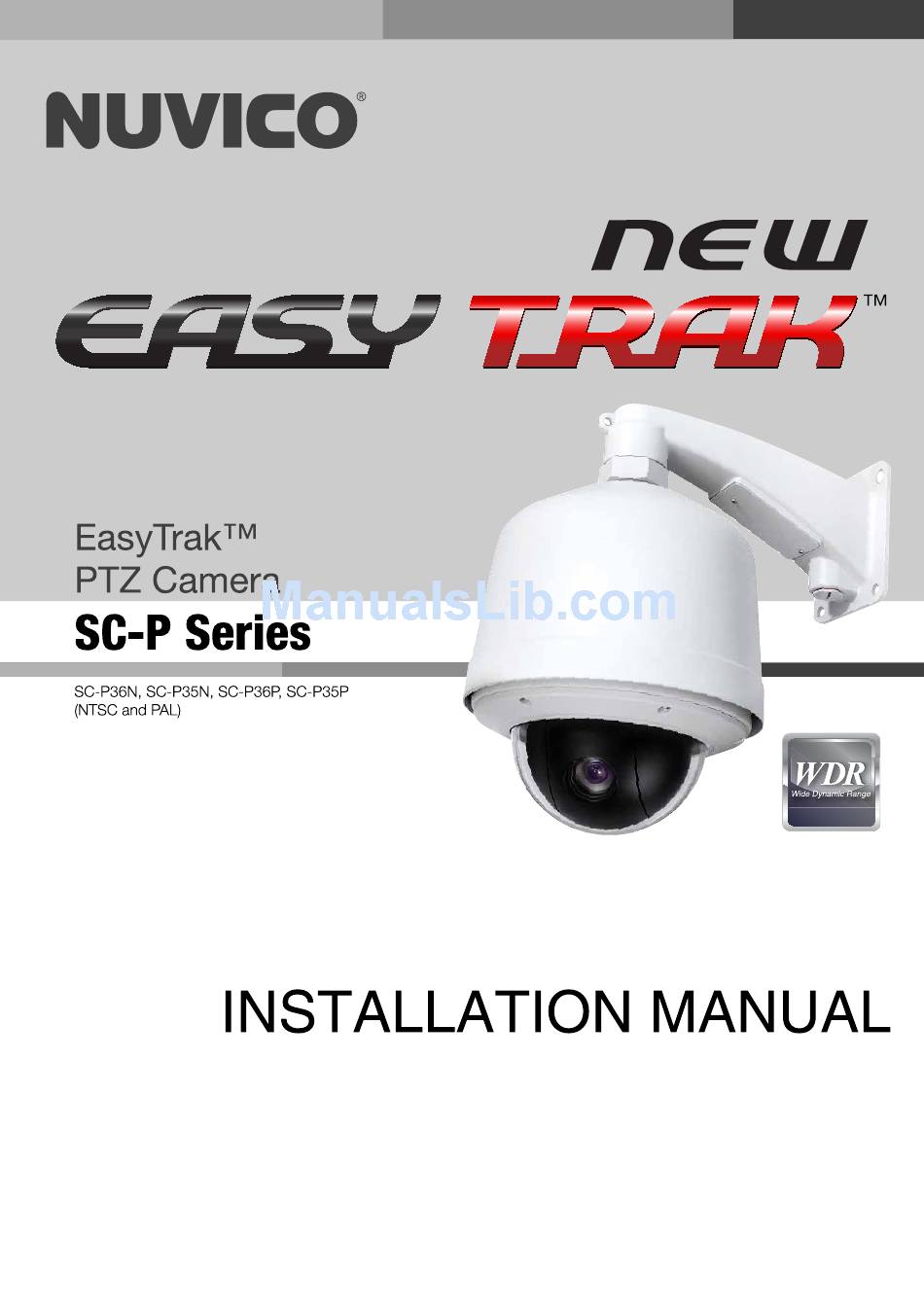

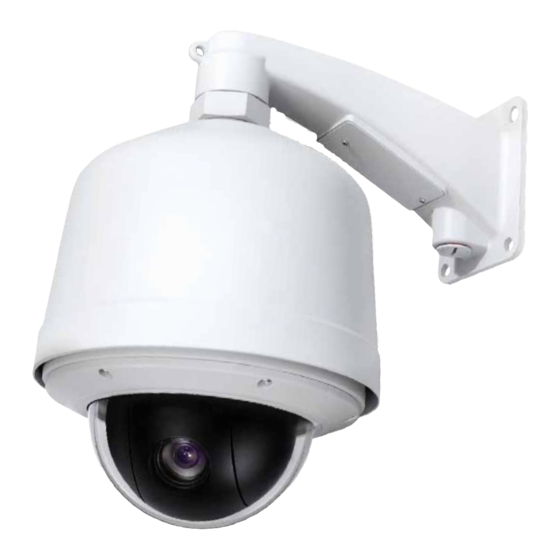

Nuvico EasyTrak SC-P36N Installation Manual

Nuvico EasyTrak SC-P36N Installation Manual

Ptz camera

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyTrak SC-P36N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nuvico EasyTrak SC-P36N

  • Page 2: Disclaimer

    NUVICO.  NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral devices, or unapproved/unsupported devices.
  • Page 3: Warning And Caution

    WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ―dangerous voltage‖...
  • Page 4: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
  • Page 5: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 6: Table Of Contents

    TABLE OF CONTENTS DISCLAIMER_________________________________________________________2 WARNING AND CAUTION___________________________________________________3 FCC COMPLIANCE STATEMENT_____________________________________________4 CE COMPLIANCE STATEMENT______________________________________________4 IMPORTANT SAFEGUARDS_________________________________________________5 CONTENT VERIFICATION __________________________________________________8 MENU TREE _____________________________________________________________9 INTRODUCTION__________________________________________________________10 INSTALLATION AND CONFIGURATION______________________________________11 Typical system configuration _____________________________________________11 Basic configuration of speed dome camera system____________________________12 Connecting the Speed Dome directly into the DVR____________________________13 Connecting the Speed Dome into the Controller via j-box_______________________13 Connection The Speed Dome into EZ-Coax™...
  • Page 7 TABLE OF CONTENTS 3.4 Zone Title_______________________________________________________43 3.5 Camera Title_____________________________________________________44 3.6 OSD Display_____________________________________________________44 4 CAMERA SETUP____________________________________________________45 4.1 Focus Control____________________________________________________45 4.2 WB (white balance) _______________________________________________46 4.3 AE Control______________________________________________________47 4.4 Night Shot Menu__________________________________________________48 4.5 Camera Default__________________________________________________48 5 TIME & DATE SETUP________________________________________________49 5.1 Edit Daylight Savings______________________________________________49 5.2 Edit Holidays_____________________________________________________50 5.3 List Holiday______________________________________________________51 6 DATA SETUP_______________________________________________________52...
  • Page 8: Content Verification

    Before installing the controller, please make sure that the following items are included in the box: 1. Speed Dome Camera 2. Pendant Housing & Wall Mount 3. Instruction Manual If any of these materials are missing, please contact the vendor or NUVICO customer help desk immediately. 8...
  • Page 9: Menu Tree

    MENU TREE   1.1 HOME FUNCTION (MENU Functions Home) 1. FUNCTIONS   1.2 PRESET (MENU Functions Preset Shortcut : PRST)   1.3 PATTERN (MENU Function Pattern or Shortcut: PTRN)   1.4 SCAN (MENU Functions Scan or Shortcut: SCAN) ...
  • Page 10: Introduction

    INTRODUCTION Features The Speed Dome Camera features a high resolution EX-View HAD CCD imager for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. System information aides trouble shooting by displaying the hardware and software version of the camera’s firmware version, baud rate, and protocol.
  • Page 11: Installation And Configuration

    INSTALLATION AND CONFIGURATION Typical system configuration Additional Speed Dome joystick controllers and a variety of external switching devices such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. Figure 1 illustrates sample installation.
  • Page 12: Basic Configuration Of Speed Dome Camera System

    INSTALLATION AND CONFIGURATION Basic configuration of speed dome camera system Figure 2 - Basic Installation Diagram 12...
  • Page 13: Connecting The Speed Dome Directly Into The Dvr

    INSTALLATION AND CONFIGURATION Connecting the Speed Dome directly into the DVR  Locate the RS485 + & - conductor wire from the Speed Dome Camera. Connect the + & - into the Tx+ & Tx- ports of the DVR. Tx+ & Tx- ports can be found in the rear part of the DVR.
  • Page 14: Connection The Speed Dome Into Ez-Coax™ Transmitter

    INSTALLATION AND CONFIGURATION Connection The Speed Dome into EZ-Coax™ Transmitter Figure 5 - Connecting Camera & EZ-Coax™ Transmitter 14...
  • Page 15: Connecting Both Speed Dome And Dvr Via J-Box

    INSTALLATION AND CONFIGURATION Connecting both Speed Dome and DVR via J-BOX Figure 6 - Connecting Camera & DVR into Controller 15...
  • Page 16: Setting The Video System

    INSTALLATION AND CONFIGURATION The dome camera must be installed by qualified service personnel. Before installing the dome camera system, this instruction manual must be read thoroughly and understood fully. Dome cameras must be set up properly before starting the installation. This involves properly setting configuration switches.
  • Page 17: Setting The Web Baudrate

    INSTALLATION AND CONFIGURATION Setting the Web Baudrate Set baudrate of communication between control board and IP board. 4800 9600 19200 38400 Figure 9 - Setting the baudrate Principle of Termination Every device that is connected at the end of the communication data line must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors.
  • Page 18 INSTALLATION AND CONFIGURATION Figure 11 - Termination Diagram 18...
  • Page 19: Dome Camera Address (Id)

    INSTALLATION AND CONFIGURATION Dome Camera Address (ID) Each dome camera must have a unique address (ID). Identical IDs on the same line may damage the control circuit caused by an electrical short. When installing multiple dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to the camera port of the DVR.
  • Page 20: Setting Protocols

    Note: Consult service personnel if a dome camera is installed with a device other than a recommended Speed Dome Controller. DIP S/W FUNCTION Protocol AUTO(No Parity) Protocol AUTO(Even Parity) NUVICO Baud rate Extend IP Factory Reset Baud rate 2400 bps 4800 bps 9600 bps...
  • Page 21: Connections

    INSTALLATION AND CONFIGURATION Connections How to Connect RS485 The dome camera has a built-in RS-485 receiver so that it can be controlled remotely by an external control device such as a joystick controller or a DVR. RS-485: Connect the TXA (Tx+) and TXB (Tx-) of the RS485/422 control devices (KBD, DVR…) to RXA(RX+), RXB(RX-) of the dome camera.
  • Page 22: Mounting The Dome Camera

    INSTALLATION AND CONFIGURATION Mounting the Dome Camera Once all DIP switches are set properly and all external connections are made, the dome camera can be mounted. The Speed Dome camera is designed to mount on a structural body supporting loads up to 5 Kg.
  • Page 23: Power On And Boot-Up Sequence

    INSTALLATION AND CONFIGURATION Power on and Boot-up Sequence When the power is applied to the dome camera, it will start the boot-up sequence. When boot-up is done, the following information is displayed on the monitor screen. On Screen Display in normal control mode 00/00/0000 00:00:00 AM Preset No.
  • Page 24: Program & Operation

    PROGRAM & OPERATION Dome Camera Selection Prior to start programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. Example: Pressing 1 , 6 and CAM key sequentially will select dome camera 16.
  • Page 25: Functions

    PROGRAM & OPERATION 1. FUNCTIONS (MENU =>Functions) By pressing the MENU button on the keyboard controller, the following On-screen MAIN MENU will be shown on the monitor screen. Select the Functions ICON and then twist the Joystick to CCW/CW to access Functions menu.
  • Page 26: Home Function

    PROGRAM & OPERATION 1.1 HOME FUNCTION (MENU =>Functions => Home) After Home item has been selected, follow the directions below to set Home function.  Function : Tour/ Preset/ Pattern/ Scan  Number : - - -  Time : 10~240 Seconds ...
  • Page 27: Preset

    PROGRAM & OPERATION 1.2 PRESET (MENU => Functions => Preset Shortcut : PRST) Preset stores pan, tilt, zoom, focus and iris settings. Once programmed, pressing combination of 0 ~9 numbers and the Preset button on the controller should automatically call up the preset position. Presets may be assigned to alarm actions or as the ―home‖ position for the dome camera.
  • Page 28 PROGRAM & OPERATION 7. Select the desired character digit on the title line using Joystick Left/Right. 8. Move the cursor to the desired character on the character table using Joystick Up/ Down/ Left /Right, then twist the Joystick to CCW/CW (or turn right/left) at the desired character to complete selection, then the cursor position on the title moves to the next position automatically.
  • Page 29 PROGRAM & OPERATION  Sensitivity : 1-16(most sensitive)  Hold Time : 03-99SEC: The hold time starts to count after the motion detects.  Output : OFF,R01,R02: relay output  Position : motion detection area ALL(full screen),AREA(area defined in the area setup) *Motion Setup is only available from Preset 1 to Preset 16 ...
  • Page 30 PROGRAM & OPERATION To enter Advanced Motion Setup, twist the Joystick to CCW/CW (or turn right/left) on the motion setup.  Mode: select tracking mode ACTION1 : Once a motion is detected, the camera starts and continues tracking. Until 5seconds after no motion is detected, the camera runs Lost Action. ACTION2 : Once a motion is detected , the camera starts and follows the object for 5 seconds.
  • Page 31 PROGRAM & OPERATION 1.3 PATTERN (MENU => Function => Pattern or Shortcut: PTRN) The Pattern function memorizes and stores movement of the selected dome camera for up to 480 seconds. Pattern can be stored in 480 seconds of total recording space. Stored pattern is played back by pressing No.+ PTRN buttons subsequently.
  • Page 32: Scan

    PROGRAM & OPERATION 1.4 SCAN (MENU => Functions => Scan or Shortcut: SCAN) The Scan function supports up to 16 programmed sections of angles at 8 program able speeds.  SPEED (MODE) : 1/ 2 / 3/ 4/ 5/ 6/ 7/ 8/ SLW / MID 1: SLOWER ↔...
  • Page 33: Tour

    PROGRAM & OPERATION 6. Move the Joystick downward to select ―END ANGLE.‖ Hold down the SHFT/PGM key while moving the Joystick to select the end position. The end position angle should be larger than start position. Release the SHFT/PGM key to complete the selection of the end position.
  • Page 34 PROGRAM & OPERATION Title : 16 digits of title for tour label  - - - : blank preset position  SP : F-Normal/ M- Medium D.Scan/ S- Slowest D.Scan  DW : 03-99 Sec  Prst : PRESET 1~248 ...
  • Page 35: Actions Setup

    PROGRAM & OPERATION 2. ACTIONS SETUP (MENU => Actions Setup) 2.1 ALARM ACTION SETUP (MENU => Actions Setup => Alarm) Highlight Alarm in the action setup and move the joystick to the right to access Alarm Setup setup.  NO : Alarm input number ...
  • Page 36: Alarm List

    PROGRAM & OPERATION There are 9 levels of priority. 0 : Highest priority supports repeated/dedicated functions like a Pattern(Pxx), Tour(Txx), Scan(Sxx). 1~8: Same level of alarm calls presets one after the other. Ex) Alarm 01 calls Pattern 01, after alarm 01 is released alarm 02, 03 will call preset 48 and preset 01 1.
  • Page 37: Clear Alarm List

    PROGRAM & OPERATION 2.3 CLEAR ALARM LIST (MENU => Actions Setup => Clear Alarm List) Select ―YES‖ to clear the alarm list. 2.4 SCHEDULE ACTION SETUP (MENU => Actions Setup => Schedule Action Setup) The schedule action setup allows you to program to act the function as below at a specific date and time.
  • Page 38 PROGRAM & OPERATION  Add Schedule : Add the current Schedule to the list  Delete Schedule : Delete the current Schedule from the list Follow the steps below to program the schedule action: Create a new action: 1. Select the desired action number by moving the Joystick left or right or twisting the ZOOM handle at the action number field.
  • Page 39 PROGRAM & OPERATION the camera always operates with the B/W mode. So don’t forget to program the second action for the day any night and an alarm out options NOTE: The function of the day and night (D/N:COLOR, D/N:B/W,D/N:AUTO) changes the camera menu setting and doesn’t affect the preset.
  • Page 40: List Action

    PROGRAM & OPERATION 2.5 LIST ACTION (MENU => Actions Setup => List Action) List action type: ALL, Preset, Scan, Pattern, Tour, Auto Pan, Day/Night, Alarm Out, Alarm In 1. Select the list action by moving the Joystick up or down. 2.
  • Page 41: Screen

    PROGRAM & OPERATION SCREEN (MENU => Screen) By pressing the MENU button on the keyboard controller, the following On-screen MAIN MENU will be shown on the monitor screen. Highlight Screen and then twist the Joystick to CCW/CW to enter Screen menu. 3.1 LANGUAGE SETUP (MENU =>...
  • Page 42: Privacy Zone Setup

    PROGRAM & OPERATION 3.2 PRIVACY ZONE SETUP (MENU => Screen => Privacy Zone) Highlight Privacy Zone and then move the joystick to the right to enter the menu. This function disables the viewing of restricted areas for privacy reasons. It offers masking up to 8 unwanted views in a camera.
  • Page 43: Zone Title

    PROGRAM & OPERATION 3.4 ZONE TITLE (MENU => Screen =>Zone Title) Enter a specific name in sectioned angle between Start and End. 1. Press MENU => Screen => Zone Title to display zone title menu on the monitor. 2. Select the zone number by moving the Joystick up or down. Select Start, End or number column to be set by moving the handle to the right or left.
  • Page 44: Camera Title

    PROGRAM & OPERATION 3.5 CAMERA TITLE (MENU => Screen => Camera Title) This function allows the users to set the title of camera as well as the usage of on screen display of the title. Twist the joystick handle on the Camera Tilie. Refer to the preset title 3.6 OSD DISPLAY (MENU =>...
  • Page 45: Camera Setup

    PROGRAM & OPERATION 4. CAMERA SETUP (MENU => Camera) NOTE: The menu features will vary depending on the camera module.  Back Light : Objects in front of bright backgrounds will be clearer with BLC ON. NOTE: The Back Light operates in AUTO mode only. ...
  • Page 46: Wb (White Balance)

    PROGRAM & OPERATION  AF Sensitivity : NORMAL / LOW NORMAL: Use this option when shooting fast motion. LOW : Offers better focus stability. In low luminance conditions, Auto Focus stops operation even when brightness changes, enabling stable images of moving objects. ...
  • Page 47: Ae Control

    PROGRAM & OPERATION 4.3 AE CONTROL (MENU => Camera => AE Control)  Mode : AUTO / MANUAL / SHUTTER / IRIS / BRIGHT AUTO : Auto Iris and Gain, Fixed Shutter speed (NTSC: 1/60 sec, PAL: 1/50 sec) MANUAL : Variable Shutter, Iris and Gain. SHUTTER : Variable Shutter speed, Auto Iris and Gain.
  • Page 48: Night Shot Menu

    PROGRAM & OPERATION 4.4 NIGHT SHOT MENU (MENU => Camera =>Night Shot) The Night Shot option removes the IR Cut filter of the camera and makes the camera sensitive to near infrared. If Night Shot mode of the selected camera is set to Manual, 10+ ON will enable the Night Shot mode, 10+ OFF will turn off the Night Shot mode.
  • Page 49: Time & Date Setup

    PROGRAM & OPERATION 5. TIME/DATE SETUP (MENU => Time & Date) Note: When installing a dome for the first time, the clock doesn’t operate. When you change the time and date, the clock starts to operate. The date and time can be displayed on the monitor when the Date/Time option is set to ON in the display menu.
  • Page 50: Edit Holidays

    PROGRAM & OPERATION 5.2 EDIT HOLIDAYS (MENU => Time & Date => Edit Holidays) You can add holidays up to 50. Use the following steps to create a holiday. 1. Select the ―NEW‖ by pushing the joystick to right at the number field. 2.
  • Page 51: List Holiday

    PROGRAM & OPERATION Use the following steps to delete the holiday. 1. Select the number to delete. 2. Select ―Delete Holiday‖ and push the Joystick to right. 3. Select ―YES‖ and push the Joystick to right then the next number display at the number field.
  • Page 52: Data Setup

    PROGRAM & OPERATION 6. DATA SETUP (MENU => Data Setup) 6.1 FACTORY DEFAULT (MENU => Data Setup => Factory Default) The factory default returns programmed data to initial state as ex-factory except the followings.  Time and date  Alarm list 52...
  • Page 53: Erase Programmed Data

    PROGRAM & OPERATION 6.2 ERASE PROGRAMMED DATA (MENU => Data Setup => Erase Programmed Data) Erase programmed data in the EEPROM of the selected dome camera. Origin offset value is not affected. 1. Set the option ―ON‖ you want to erase 2.
  • Page 54: Restore Data

    PROGRAM & OPERATION 6.4 RESTORE DATA (MENU => Data Setup => Restore Data) This function restores the setting values of the dome of the backup memory to the dome. 6.5 CLEAR DATA (MENU => Data Setup => Clear Data) This function clears all data of the backup memory. 54...
  • Page 55: Setup

    PROGRAM & OPERATION 7. SETUP (MENU => Setup) 7.1 PRESET FREEZE (MENU => Setup => Preset Freeze)  ON: the image is frozen during calling preset. 7.2 SPEED (MENU => Setup => Speed) User can select preferable speed curves of manual control. (SLOW / MEDIUM / FAST) 7.3 RESPONSE (MENU =>...
  • Page 56: Flip

    PROGRAM & OPERATION 7.4.1 FLIP (MENU => Setup =>Dome Angle=>Flip) When the Speed Dome camera is mounted on a ceiling, it can track a moving target in a path directly below the camera: ON : When the camera reaches the moving object directly above the floor, the dome camera tracks the object smoothly with a digitally corrected image.
  • Page 57: Calibration

    PROGRAM & OPERATION This option is used to set the limit of the horizontal view angle so that the trim ring or ceiling does not obstruct the horizontal image when zooming out (wide angle). ON: In some installations it is desirable for the dome camera to be able to see above the horizon.
  • Page 58: Password Setup

    PROGRAM & OPERATION 7.6 PASSWORD SETUP (MENU => Setup =>Password) You can change the password with 4-digit character in this menu. The default password is 1111. Edit Password 1. Select the edit password using the joystick. 2. Select the desired number using the joystick up and down, then twist the joystick handle. 3.
  • Page 59: System Information

    PROGRAM & OPERATION 7.7 SYSTEM INFORMATION (MENU => Setup => System Information) This screen shows information of the dome camera for service or trouble shooting 59...
  • Page 60: Technical Specifications

    TECHNICAL SPECIFICATIONS Lens Camera(1010 / 1010P / 1020 / 1020P: 36X) Image Sensor 1/4" EX-view HAD Color CCD (Sony) NTSC : 768x494 Approx. 380K pixels Picture elements PAL : 752x582 Approx. 440K pixels Horizontal Resolution 530 / 530 lines(NTSC/PAL) 36x optical zoom with auto focus Lens 12x digital zoom F1.6 to F4.5, f=3.4mm to 122.4mm...
  • Page 61: Controller

    TECHNICAL SPECIFICATIONS Controller General Certification CE EMC, FCC CLASS A Electrical Input Voltage 18 to 30 VAC; 24 VAC nominal, built-in power-line surge Power Requirement 24 VAC/VDC 850mA Power Consumption Maximum 20W Alarm Output 2 Normal relays 24 VDC/1A Max (selectable NC/NO) Alarm Input 8 Normal dry contact (selectable NC/NO) Control...
  • Page 62: Dimension

    TECHNICAL SPECIFICATIONS Dimension Figure 16-Dimension 62...
  • Page 63: Appendix

    APPENDIX Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual. Isolate the problem from the equipments in the system and refer to the equipment manual for further information. Problem Solution Verify that power is connected to all components in the system.
