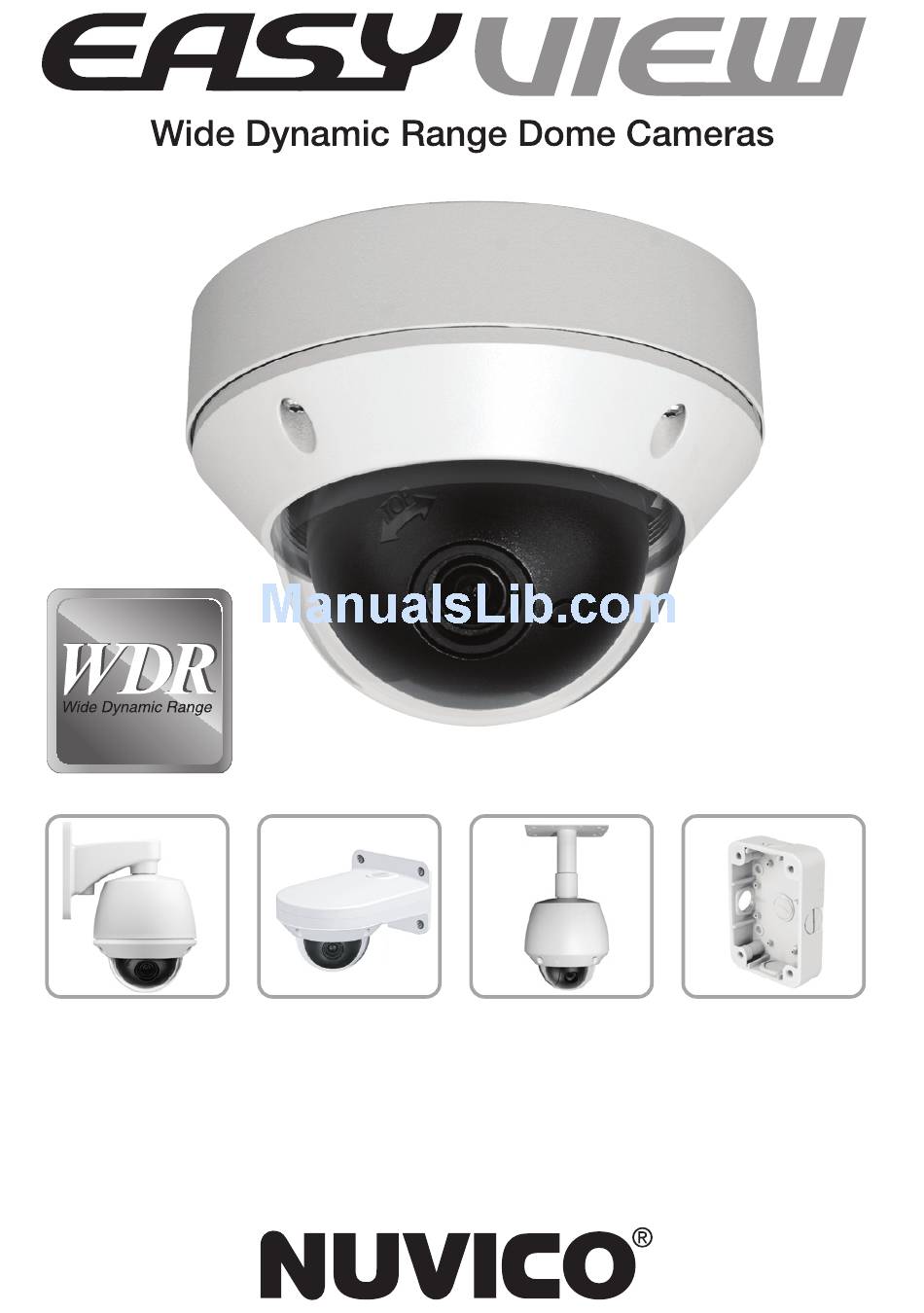

- Page 1 ™ Flush Housing w/ Surface Mount Plate Outdoor Wall Mount Indoor Wall Mount Pedestal Mount Junction Box INSTALLATION MANUAL...
- Page 2 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later use. This installation manual covers the following models listed below. Any difference in features for these models are indicated where necessary. Note: Installation of this product should be made by a qualified technician and should conform to all local codes.
- Page 3 The Gimbal mechanism yields maximum rotation and placement as shown below. EasyView Dome Cameras have vari-focal lens integrated inside the Gimbal. If you require to make focal/focus adjustments, the Gimbal cover needs to be removed temporarily. 355º Step-1 As shown below, hold the Gimbal base firmly in place with one hand. Step-2 Gently press Points A &...
- Page 4 Dimensions (UNIT: mm) • Torx Wrench - For Vandalproof Domes Flush Mount Model #: T20 Length: 2 1/2" Thickness: " • Assembly Screws - For Vandalproof Domes These screws are used to affix dome cover to flush housing. Model #: Philips M4x10 Qty: 3 Length: 10mm Thickness: 4mm...
- Page 5 1. Remove dome cover by loosening 3 screws. For indoor domes, use standard Philips 1. Lens screw driver. For vandalproof domes, use Torx wrench provided with the package. 2. Power Input Connector 2. Surface Mount: 12VDC/24VAC Dual Voltage Using four ST4x30 screws, mount surface plate to a sturdy surface Using three ST4x12(Indoor) screws or M4x10(Vandalproof) screws, affix flush mount base to 3.
- Page 6 • All camera model are supplied with second video output on the camera module. To use this feature along with a service monitor, second monitor cable/connector (Part# CA-SMC30) is required. Contact your distributor or NUVICO Sales Department for further information.
- Page 7 Remove the Gimbal cover from the Gimbal base Zoom Right Focus Down Right Left Gimbal Cover DOWN key RIGHT key CENTER key Loosen Zoom & Focus screws and make necessary adjustments as shown. LEFT key Field of View: Telephoto( T ) to Wide( W ) Focus: Near( N ) to Far( F ) UP key Service Monitor Output...
-
Page 15: Fan & Heater Installations & Specifications / Cv-Fh
Fan & Heater Installations & Specifications / CV-FH Features Assembly Screws Fan & Heater for EasyView™ Vandalproof Domes Philips M2.6x14 (1x) Assembly Screws Philips M3x6 (1x) Assembly Accessories Assembly Screw - Philips M2.6x14 - Qty: 1 - Length: 14mm - Thickness: 2.6mm Assembly Screw - Philips M3x6 - Qty: 1... - Page 16 Contents Wall Pipe 3/4 Inch Wall Mount - Qty: 1 Teflon tape Mounting Template - Qty: 1 Wall Mount Assembly Screws - Philips M4x10 - Qty: 3 - Length: 10mm - Thickness: 3mm Assembly Screws Note: Mounting screws are not Philips M4x10 (3x) supplied with this package.
- Page 17 ™ NUVICO Tel: +7 495 234-3212 Fax: +7 495 234-3212 E-mail: techsupport@nuvico.ru www .nuvico.ru...
