Summary of Contents for Nuvico EasyView Lite CD-H2N-I
-
Page 2: Disclaimer
NUVICO. • NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the cameras, peripheral devices, or unapproved/un... -
Page 3: Warning And Caution
Warning and Caution WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION! The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 4: Important Safeguards
Important Safeguards • Read these instructions. • Heed all warnings. • Follow all instructions. • Do not use this equipment near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Table Of Contents
Table of Contents ....................Disclaimer ................Warning and Caution ................Important Safeguards ................... Table of Contents ............Introduction / Available Models ................Content Verification ................Parts & Descriptions ................Camera Dimensions .................. Base Installations ................. Connecting to Monitors ........... Adjusting the Vari-focal DC Auto Iris Lens .............. -
Page 6: Introduction / Available Models

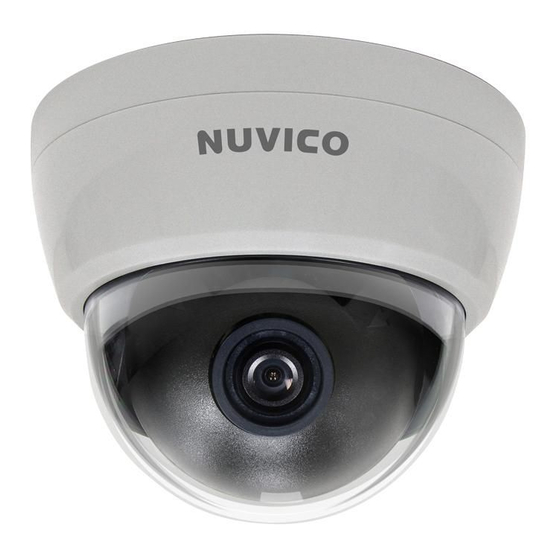

Introduction ABOUT THIS MANUAL Thank you for purchasing our EasyView™ Lite dome camera. Our EasyView™ Lite Dome Cameras are all equipped with high resolution 1/3” Interline transfer CCD Imager for enhanced lowlight sensitivity. Available in a host of different combinations, from standard fixed lens indoor color domes, to vari-focal day/night vandalproof dome, EasyView™... -
Page 7: Content Verification
Content Verification Before installing the camera, please make sure that all of the following items are included in the box. EasyView™ Lite Dome CAMERA 1. EasyView™ Lite Dome Camera 2. Installation Manual 3. Surface Mount Mounting Template 4. Service Monitor Cable - Model#: CA-SMC30 (Vari-focal Lens models only) 5. -
Page 8: Parts & Descriptions
Parts & Descriptions Lens Power input Connctor 12VDC/24VAC Dual Voltage (Vari-focal Only) Video Output Connector - BNC Service Monitor Output Connector Model #: CA-SMC30 (Vari-focal Only) Camera Power Board (Vari-focal Only) Safety Wire Bubble Dome Cover Camera Module Surface Mount Plate Assembly Screws Philips M3x12 (Indoor) Torx M4x11 (Vandalproof) -
Page 9: Camera Dimensions
Camera Dimensions EasyView™ Lite dome camera housing is specially designed allowing for additional 12° tilt of the 3-Axis Gimbal. Even at full 90° tilt, the view out of the EasyView™ Lite will be unobstructed. See the diagrams below for the exact dimensions of the EasyView™ Lite dome camera. -
Page 10: Base Installations
Base Installations Remove the dome cover by loosening the 4 screws located at the Dome Cover Ring. EasyView™ Lite indoor domes use the standard philips screws, while vandal domes uses the torx screws. Use the Torx Wrench supplied. Using four ST4x30 screws provided, mount the surface mount plate to a strudy surface. -
Page 11: Connecting To Monitors
Connecting to Monitors Follow the diagram below to make proper connections to the CRT Monitor or the Service Monitor. 12VDC/24VAC CCTV Monitor Service Monitor Output 30cm Service Monitor CA-SMC30 (Supplied with EasyView™ Lite dome) • Power connection (Auto polarity detection and protection) - 12VDC/24VAC Dual Voltage on Vari-focal Lens models, otherwise 12VDC Voltage for Fixed Lens models. -
Page 12: Adjusting The Vari-Focal Dc Auto Iris Lens
Adjusting the Vari-focal DC Auto Iris Lens Follow the instruction provided below to make any lens adjustments. Adjust the angle of Adjust the Focus Field of View Zoom: Tele Wide Focus: Far Near Loosen the Zoom & Focus screws. Using the screw, move it LEFT or RIGHT to the desired position. -
Page 13: Adjusting The 3-Axis Gimbal
Adjusting the 3-Axis Gimbal The Gimbal mechanism yields maximum rotation and placement as shown below. Z-Axis: Rotation 355° Y-Axis: Tilting 90° X-Axis: Panning 355° Rotation 355° Panning 355° Tilting 90° Tilting 90° w/ IR LED... -
Page 14: Opening The 3-Axis Gimbal Cover
Opening the 3-Axis Gimbal Cover Dip Switches on the EasyView™ Lite dome cameras are located on the camera module inside of the Gimbal assembly. To access the Dip Switches, remove the Gimbal cover temporarily by following the instructions below. STEP 1 Firmly hold the Gimbal base free of any movement. -
Page 15: Switching Off/On The Ir Led
Switching OFF/ON the IR LEDs IR LED Dip Switch This Dip Switch is used to switch OFF/ON the IR LEDs. Too much IR reflection from a subject causes over-exposure on the most focused area causing ‘Hot Spots’ within the picture. Adjust this setting can help avoid such problems. •... -
Page 16: Dip Switch Functions And Operations
Dip Switch Functions and Operation Follow the instructions provided below to switch ON/OFF the various available camera functions and modes. DIP Switch Functions ICR Switch Time (2~3 Sec) ICR Switch Time (4~5 Sec) Function Dip Switch FLK On Each Dip Switch represents FLK Off the various functions and BLC On... -
Page 17: Icr Switch Time
Dip Switch Menu Control Terms A. ICR Filter Delay Timer (ICR Switch Time) This switch is used to delay the automatic ICR cut-filter. • ON: The automatic ICR cut-filter is delayed only by 2~3 seconds. • OFF: The automatic ICR cut-fllter is delayed by 4~5 seconds. B. -
Page 18: Technical Specifications
Technical Specifications | NTSC Technical Specifications CD-H2N CD-H39N Video Format NTSC/PAL Image Sensor 1/3” CCD Horizontal Resolution 550 TV Lines Day/Night Functionality Lens Type Fixed 2.9mm Vari-focal 3.8mm-9.5mm Angle of View 120° 95.5°(W) ~ 37.3°(T) Sync System Internal Effective Pixels 768(H) x 494(V) Scanning System 525 Lines. -
Page 19: Cd-Hd2N-L / Cd-Hd39N-L | Ntsc
Technical Specifications | NTSC Technical Specifications CD-HD2N-L CD-HD39N-L Video Format NTSC/PAL Image Sensor 1/3” CCD Horizontal Resolution 550 TV Lines Day/Night Functionality Yes w/ ICR Lens Type Fixed 2.9mm Vari-focal 3.8mm-9.5mm Angle of View 120° 95.5°(W) ~ 37.3°(T) IR LED IR LED Distance Up to 50ft. -
Page 20: Cd-H2P / Cd-Hd39P | Pal
Technical Specifications | PAL Technical Specifications CD-H2P CD-H39P Video Format NTSC/PAL Image Sensor 1/3” CCD Horizontal Resolution 550 TV Lines Day/Night Functionality Lens Type Fixed 2.9mm Vari-focal 3.8mm-9.5mm Angle of View 120° 95.5°(W) ~ 37.3°(T) Sync System Internal Effective Pixels 752(H) x 582(V) Scanning System 625 Lines. -
Page 21: Cd-Hd2P-L / Cd-Hd39P-L | Pal
Technical Specifications | PAL Technical Specifications CD-HD2P-L CD-HD39P-L Video Format NTSC/PAL Image Sensor 1/3” CCD Horizontal Resolution 550 TV Lines Day/Night Functionality Yes w/ ICR Lens Type Fixed 2.9mm Vari-focal 3.8mm-9.5mm Angle of View 120° 95.5°(W) ~ 37.3°(T) IR LED IR LED Distance Up to 50ft. -
Page 22: Memo & Notes
Memos & Notes... - Page 23 Memos & Notes...
