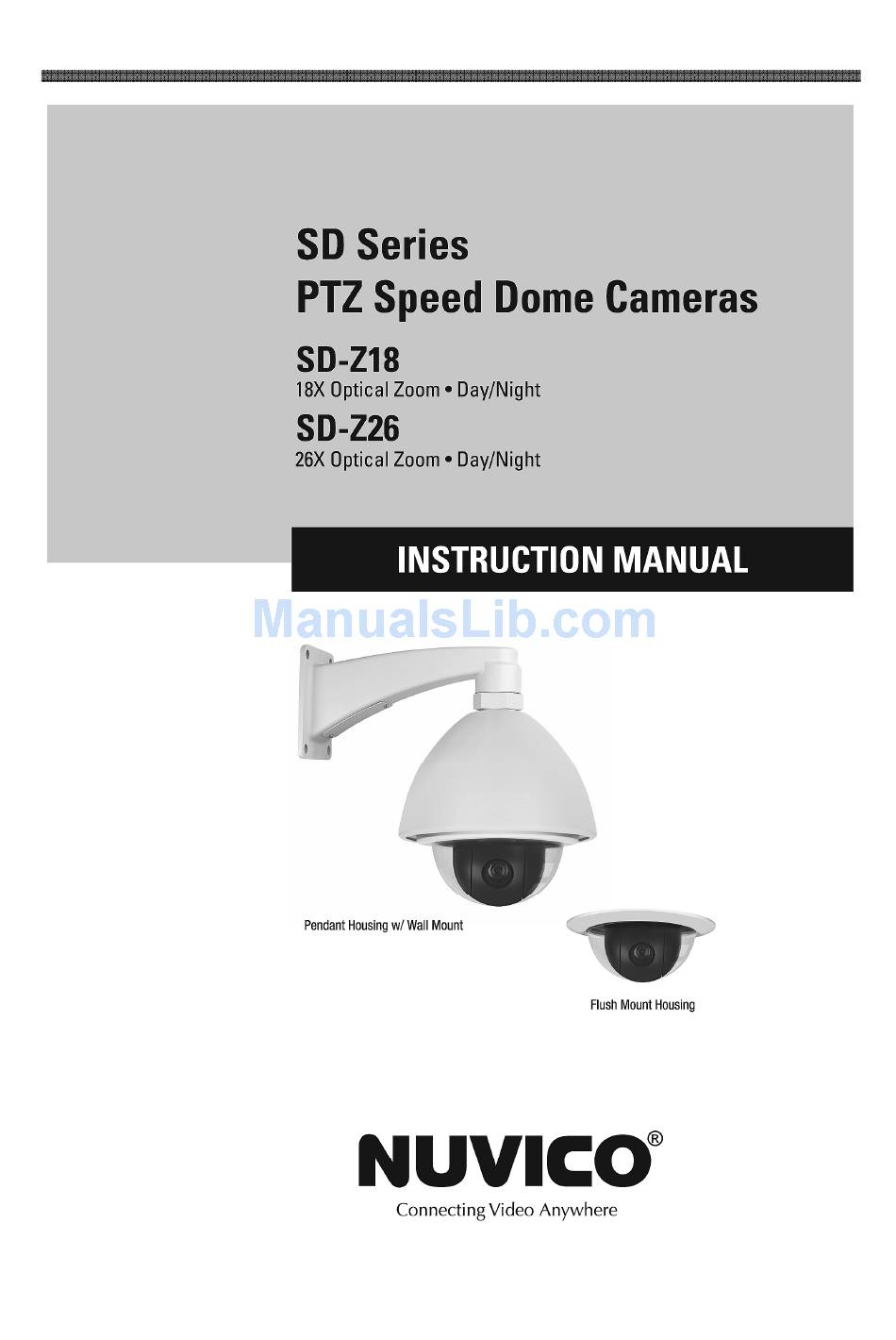

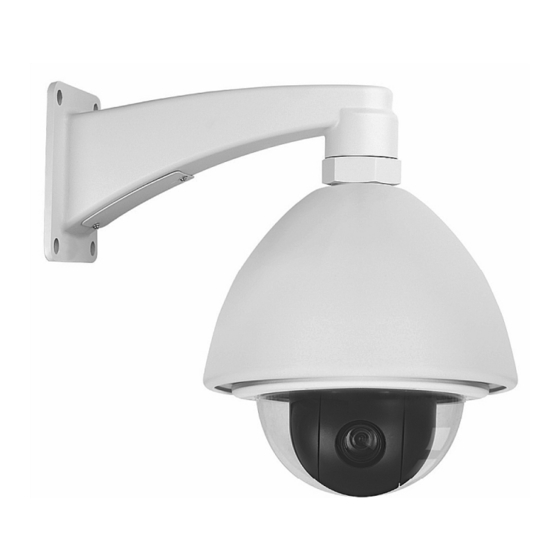

  • Page 1 PTZ SPEED DOME CAMERAS...

  • Page 2: Content Verification

    Before installing the controller, please make sure that the following items are included in the box: 1. Speed Dome Camera 2. Pendant Housing & Wall Mount 3. Instruction Manual If any of these materials are missing, please contact the vendor or NUVICO customer help desk immediately. PTZ SPEED DOME CAMERAS...

  • Page 3: Disclaimer

    NUVICO. • NUVICO makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral devices, or unapproved/unsupported devices.

  • Page 4: Warning And Caution

    WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 5: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS DISCLAIMER........................2 WARNING AND CAUTION..................... 3 FCC COMPLIANCE STATEMENT ................. 4 CE COMPLIANCE STATEMENT ................... 4 IMPORTANT SAFEGUARDS ..................5 I. INTRODUCTION......................8 Features ............................. 8 II. INSTALLATION AND CONFIGURATION ..............9 2.1 Typical System Configuration ..................... 9 2.2 Basic Configuration of Speed Dome Camera System..............
  • Page 8 3.4.8 CAMERA DEFAULT ( MENU => CAMERA =>CAMERA DEFAULT).................. 37 3.5 SETUP ( MENU MENU MENU MENU => SETUP) ......................38 3.5.1 FLIP (MENU => SETUP => FLIP) ............................38 3.5.2 SPEED (MENU => SETUP => SPEED)..........................38 3.5.3 PANNING RANGE (MENU => SETUP => PANNING RANGE)................... 38 3.5.4 TILT OVER ANGLE (MENU =>...

  • Page 9: Introduction

    I. INTRODUCTION Features The Speed Dome Camera features a high resolution EX-View HAD CCD imager for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. System information aides trouble shooting by displaying the hardware and software version of the camera’s firmware version, baud rate, and protocol.

  • Page 10: Installation And Configuration

    II. INSTALLATION AND CONFIGURATION 2.1 Typical System Configuration Additional Speed Dome joystick controllers and a variety of external switching devices such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. Figure 1 illustrates sample installation.

  • Page 11: Basic Configuration Of Speed Dome Camera System

    2.2 Basic Configuration of Speed Dome Camera System POWER AC 24V STP AWG # 22 BNC MONITOR 4 ALARM INPUT 1 AUX OUTPUT RS-485 HALF DUPLEX MODE CONTROLLER DOME Figure 2 - Basic Installation Diagram PTZ SPEED DOME CAMERAS...

  • Page 12: Connecting The Speed Dome Directly Into The Dvr

    2.3 Connecting the Speed Dome directly into the DVR • Locate the RS485 + & - conductor wire from the Speed Dome Camera. • Connect the + & - into the Tx+ & Tx- ports of the DVR. Tx+ & Tx- ports can be found in the rear part of the DVR.

  • Page 13: Connecting Both Speed Dome And Dvr Via J-Box

    2.5 Connecting Both Speed Dome and DVR via J-box Figure 5 - Connecting Camera & DVR into Controller PTZ SPEED DOME CAMERAS...
  • Page 14 The dome camera must be installed by qualified service personnel. Before installing the dome camera system, this instruction manual must be read thoroughly and understood fully. Dome cameras must be set up properly before starting the installation. This involves properly setting configuration switches. Figure 6 shows the location of these switches.

  • Page 15: Principle Of Termination

    2.6 Principle of Termination Every device that is connected at the end of the communication data line must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors. See Figure 6 for termination switch settings and Figure 7 for examples of devices requiring termination.
  • Page 16 S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON S4:DVR port Termination ON DVR Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON...

  • Page 17: Dome Camera Address (Id)

    2.7 Dome Camera Address (ID) Each dome camera must have a unique address (ID). Identical IDs on the same line may damage the control circuit caused by an electrical short. When installing multiple dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to the camera port of the DVR.

  • Page 18: Connections

    2.9 Connections • How to Connect RS485 The dome camera has a built-in RS-485 receiver so that it can be controlled remotely by an external control device such as a joystick controller or a DVR. RS-485: Connect the TXA (Tx+) and TXB (Tx-) of the RS485 control devices (KBD, DVR…) to RXA, RXB of the dome camera.

  • Page 19: Mounting The Dome Camera

    3.0 Mounting the Dome Camera Once all DIP switches are set properly and all external connections are made, the dome camera can be mounted. The Speed Dome camera is designed to mount on a structural body supporting loads up to 5 Kg. See Figure 11. YELLOW STICKER YELLOW STICKER Left Hook...

  • Page 20: Power On And Boot-Up Sequence

    3.1 Power on and Boot-up Sequence When the power is applied to the dome camera, it will start the boot-up sequence. When boot-up is done, the following information is displayed on the monitor screen. RAM TEST CHECK NO. : OK! CHECK AAAA : OK! CHECK 5555 : OK! SD SERIES...

  • Page 21: Program & Operation

    III. PROGRAM & OPERATION Dome Camera Selection Prior to start programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. Example : Pressing 1 1 1 1 , 6 6 6 6 and CAM CAM key sequentially will select dome camera 16.

  • Page 22: Home Function (Menu =>Functions => Home Function)

    Select the FUNCTIONS and then move the joystick to the right to access FUNCTIONS menu. FUNCTIONS HOME FUNCTION PRESET PATTERN SCAN TOUR EXIT 3.1.1 HOME FUNCTION ( MENU MENU =>FUNCTIONS => HOME FUNCTION) MENU MENU After HOME FUNCTION item has been selected, follow the directions below to set HOME function.

  • Page 23: Preset (Menu => Functions => Preset Short Cut:prst )

    6. Select Function Number by pulling the Joystick Joystick down, and twist the Joystick Joystick Joystick Joystick Joystick Joystick to the CCW/CW (or turn right/left). The executable function number will be scrolled. If selected function is not programmed, it won’t change. Go to setup function first. 7.
  • Page 24 PRESET 01/8 NO. F I B TITLE 001 A A F xxxxxxxxxxxxxxxx 002 M M O ---------------- 003 - - - ---------------- 004 - - - ---------------- 005 - - - ---------------- 006 - - - ---------------- 007 - - - ---------------- 008 - - - ----------------...

  • Page 25: Pattern (Menu => Functions => Patterns Or Shortcut: Ptrn)

    SHORTCUT TO PROGRAMMING PRESETS. Select direction of the camera, zoom and focus to be programmed, then press No. 1~6 6 6 6 4 4 4 4 ), and then press SHFT SHFT, PRST PRST subsequently. The current view will be stored to SHFT SHFT PRST...
  • Page 26 5. Scroll down to the Save and Exit option and move the Joystick Joystick to the right to Joystick Joystick save and exit. 6. Naming the Pattern can be done by twisting the Joystick Joystick Joystick Joystick. Rotate the handle clockwise or counterclockwise to scroll through the alphanumeric characters, move the handle to right or left to select next or previous space.
  • Page 27 Follow the steps below to program Scans. 1. Press the SCAN SCAN SCAN SCAN key to enter Auto Scan menu directly. ( Or MENU MENU MENU MENU => FUNCTIONS => SCAN) . 2. Select an Auto Scan number by moving the Joystick Joystick Joystick left or right.

  • Page 28: Tour (Or Menu => Functions => Tour, Short Cut: Tour)

    3.1.5 TOUR (or MENU => FUNCTIONS => TOUR, Short Cut: TOUR) There are 4 programmable Tours. Each Tour consists of up to 8 Preset positions, Patterns, Scans or other Tours. Using second-level Tours, it can be expanded up to 56 functions in a single Tour.
  • Page 29 Follow the steps below to program the Tours: 1. Press MENU MENU MENU MENU => FUNCTIONS => TOUR, Short Cut : TOUR MENU to display the main menu on the monitor. No No..+ SHFT SHFT + TOUR TOUR will open directly Tour No.

  • Page 30: Alarm ( Menu => Alarm)

    3.2 ALARM ( MENU => ALARM) MAIN MENU FUNCTIONS ALARM SCREEN CAMERA SETUP EXIT Highlight ALARM in the main menu and move the joystick to the right to access ALARM setup. ALARM SETUP NO FUNC PRI OUT HLD LATCH 01 P01 OFF OFF 001 02 048 OFF OFF 001...

  • Page 31: Screen

    1. Press Menu to display the main menu on the monitor. Select the Alarm option by moving the Joystick Joystick up/down and then move to the right to enter the detail Joystick Joystick menu. 2. Select the alarm input number by moving the Joystick Joystick up or down and select the Joystick Joystick...

  • Page 32: Language ( Menu => Screen => Language)

    3.3.1 LANGUAGE ( MENU => SCREEN => LANGUAGE ) Moving the joystick handle to the right to select LANGUAGE options. LANGUAGE SETUP LANGUAGE ENGLISH SAVE AND EXIT Preferred language will be scrolled by moving the joystick to the right on LANGUAGE ENGLISH.

  • Page 33: North Direction ( Menu => Screen => North Direction)

    1. Select the Privacy Zone option by moving Joystick Up or Down and move the joystick to right to enter the detail menu. 2. Select the privacy zone number by moving the Joystick up or down. 3. To enter the zone name, rotate the handle clockwise or counterclockwise. Select alphanumeric characters by rotating the handle.

  • Page 34: Zone Title ( Menu => Screen => Zone Title)

    3.3.4 ZONE TITLE ( MENU => SCREEN => ZONE TITLE) Enter a specific name in sectioned angle between START and END. ZONE TITLE 01/04 DISPLAY : ON TITLE START 01 WINDOW 123.4 345.6 ----- ---- ----- ---- ----- ---- ----- ---- ----- ---- PREV NEXT...

  • Page 35: Camera Title ( Menu => Screen => Camera Title)

    3.3.5 CAMERA TITLE ( MENU => SCREEN => CAMERA TITLE) Move the joystick handle to the right to select CAMERA TITLE options. This function allows the users to set the title of camera as well as the usage of on screen display of the title.

  • Page 36: Focus Control( Menu => Camera => Focus Control)

    3.4.1 FOCUS CONTROL( MENU MENU => CAMERA => FOCUS CONTROL) MENU MENU FOCUS SETUP MODE : AUTO AF SENSITIVITY ***: HIGH SAVE AND EXIT(ESC TO EXIT) MODE : AUTO / MANUAL AF SENSITVITY *** : HIGH / LOW HIGH: Use this option when shooting fast motion. LOW: Offers better focus stability.

  • Page 37: Ae Control ( Menu => Camera => Ae Control)

    NOTE: “ONE PUSH” means that when rotating the Joystick Joystick handle for a Joystick Joystick moment the lens moves to adjust the focus for the subject. The focus lens then holds that position until the Joystick Joystick Joystick Joystick handle rotation. 3.4.3 AE CONTROL ( MENU MENU MENU =>...

  • Page 38: Night Shot Menu ( Menu => Camera =>Night Shot)

    3.4.7 NIGHT SHOT MENU ( MENU MENU => CAMERA =>NIGHT SHOT) MENU MENU The NIGHT SHOT option removes the IR Cut filter of the camera and makes the camera sensitive to near infrared. If NIGHT SHOT mode of the selected camera is set to Manual, 10 10 + ON ON will enable the NIGHT SHOT mode, 10...

  • Page 39: Setup ( Menu Menu Menu => Setup)

    3.5 SETUP ( MENU MENU => SETUP) MENU MENU CONFIGURATION MENU FLIP : ON/OFF SPEED : FAST PANNING RANGE TILT OVER ANGLE CALIBRATION LINE LOCK CONTROL FACTORY DEFAULT ERASE DATA SYSTEM INFORMATION EXIT 3.5.1 FLIP ( MENU MENU => SETUP => FLIP) MENU MENU When the Speed Dome camera is mounted on a ceiling, it can track a moving target in a...

  • Page 40: Tilt Over Angle (Menu => Setup => Tilt Over Angle)

    3.5.4 TILT OVER ANGLE ( MENU MENU => SETUP => TILT OVER ANGLE) MENU MENU This option is used to set the limit of the horizontal view angle so that the trim ring or ceiling does not obstruct the horizontal image when zooming out (wide angle). ON : In some installations it is desirable for the dome camera to be able to see above the horizon.

  • Page 41: Line Lock (Menu => Setup => Line Lock)

    3.5.6 LINE LOCK ( MENU MENU => SETUP => LINE LOCK) MENU MENU LINE LOCK SETUP MODE INTERNAL PHASE (0~255) EXIT MODE INTERNAL / EXTERNAL Adjusts phase of picture with other PHASE 0~255 cameras in EXTERNAL mode. EXIT (ESC TO EXIT) 3.5.7 FACTORY DEFAULT ( MENU MENU MENU...

  • Page 42: System Information (Menu => Setup => Erase Data)

    3.5.9 SYSTEM INFORMATION ( MENU MENU => SETUP => ERASE DATA) MENU MENU SYSTEM INFORMATION CAMERA TYPE : XXXXXXX H/W VERSION : V1.00 ROM VERSION : V1.00 PROTOCOL : EZ BUADRATE : 9600BPS EXIT This screen shows information of the dome camera for service or trouble shooting PTZ SPEED DOME CAMERAS...

  • Page 43: Appendix A - Specifications

    APPENDIX A — SPECIFICATIONS Lens Camera(SD-Z18N/SD-Z18P) Image Sensor 1/4" EX-view Color CCD (Sony) NTSC : 768x494 Approx. 380K pixels Picture elements PAL : 752x582 Approx. 440K pixels Horizontal Resolution 470 / 460 lines(NTSC/PAL) 18x optical zoom with auto focus Lens 12x digital zoom F1.4 to F3.0, f=4.1mm to 73.8mm View angle...
  • Page 44 Controller specifications General Certification CE EMC, FCC CLASS A Electrical Input Voltage 18 to 30 VAC; 24 VAC nominal, built-in power-line surge Power Requirement 24 VAC/VDC 850mA Power Consumption Maximum 20W Alarm Output 1 Normal relays 24 VDC/1A Max (selectable NC/NO) Alarm Input 4 Normal dry contact (selectable NC/NO) Control...

  • Page 45: Appendix B - Troubleshooting

    Figure 10-Dimension Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual. Isolate the problem from the equipments in the system and refer to the equipment manual for further information. Problem Solution Verify that power is connected to all components in the system.

  • Page 46: Glossary

    Glossary ALARM ACTIONS The assigned responses of the dome camera when there is input status change. The dome may call Presets for each of the eight inputs. The dome reports the alarm states to the Keyboard controller for processing. AREA TITLE It is the name of the horizontal sector from a certain start point to end point of the selected dome.
  • Page 47 INPUT DEVICES External devices that provide information about the condition of system components that connect to the inputs on the dome camera. Typical input devices include door contacts, motion detectors and smoke detectors. IR MODE A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation.
  • Page 48 WHITE BALANCE Adjustments in the color hue (red and blue) gains for a camera so that true white appears white in the image. It is normally compensated for by the automatic gain control. In some lighting conditions, you may need to manually adjust the red and blue settings for optimal viewing.
  • Page 49 Notes PTZ SPEED DOME CAMERAS...
  • Page 50 Notes PTZ SPEED DOME CAMERAS...
  • Page 51 Notes PTZ SPEED DOME CAMERAS...
  • Page 52 PTZ SPEED DOME CAMERAS...
