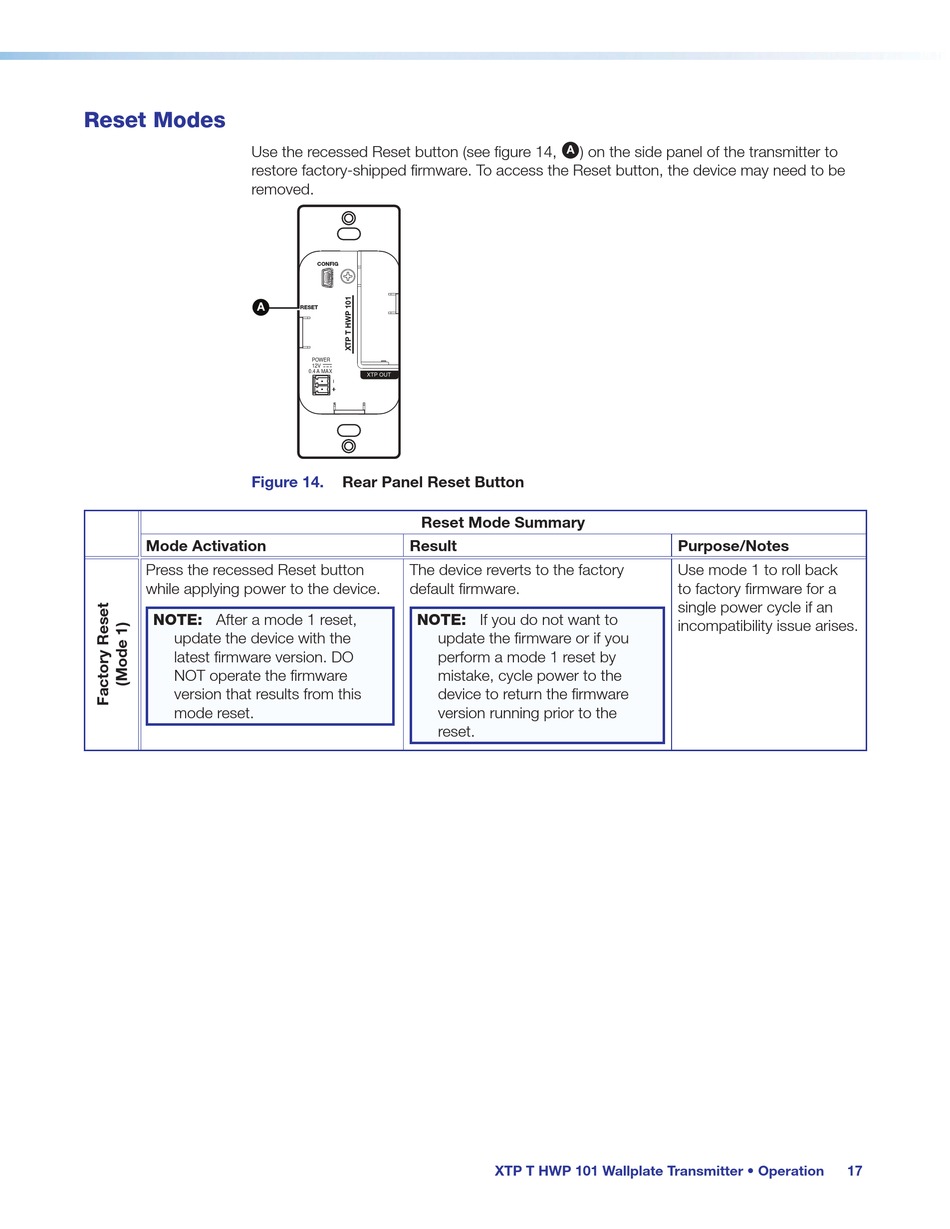

Reset Modes

Use the recessed Reset button (see figure 14,
restore factory-shipped firmware. To access the Reset button, the device may need to be
removed.
A
Figure 14.
Mode Activation
Press the recessed Reset button
while applying power to the device.
NOTE: After a mode 1 reset,
update the device with the
latest firmware version. DO
NOT operate the firmware
version that results from this
mode reset.
CONFIG
RESET
POWER
12V
0.4
A MAX
XTP OUT
Rear Panel Reset Button
Reset Mode Summary
Result
The device reverts to the factory
default firmware.
NOTE: If you do not want to
update the firmware or if you
perform a mode 1 reset by
mistake, cycle power to the
device to return the firmware
version running prior to the
reset.
A ) on the side panel of the transmitter to
XTP T HWP 101 Wallplate Transmitter • Operation
Purpose/Notes
Use mode 1 to roll back
to factory firmware for a
single power cycle if an
incompatibility issue arises.
17
