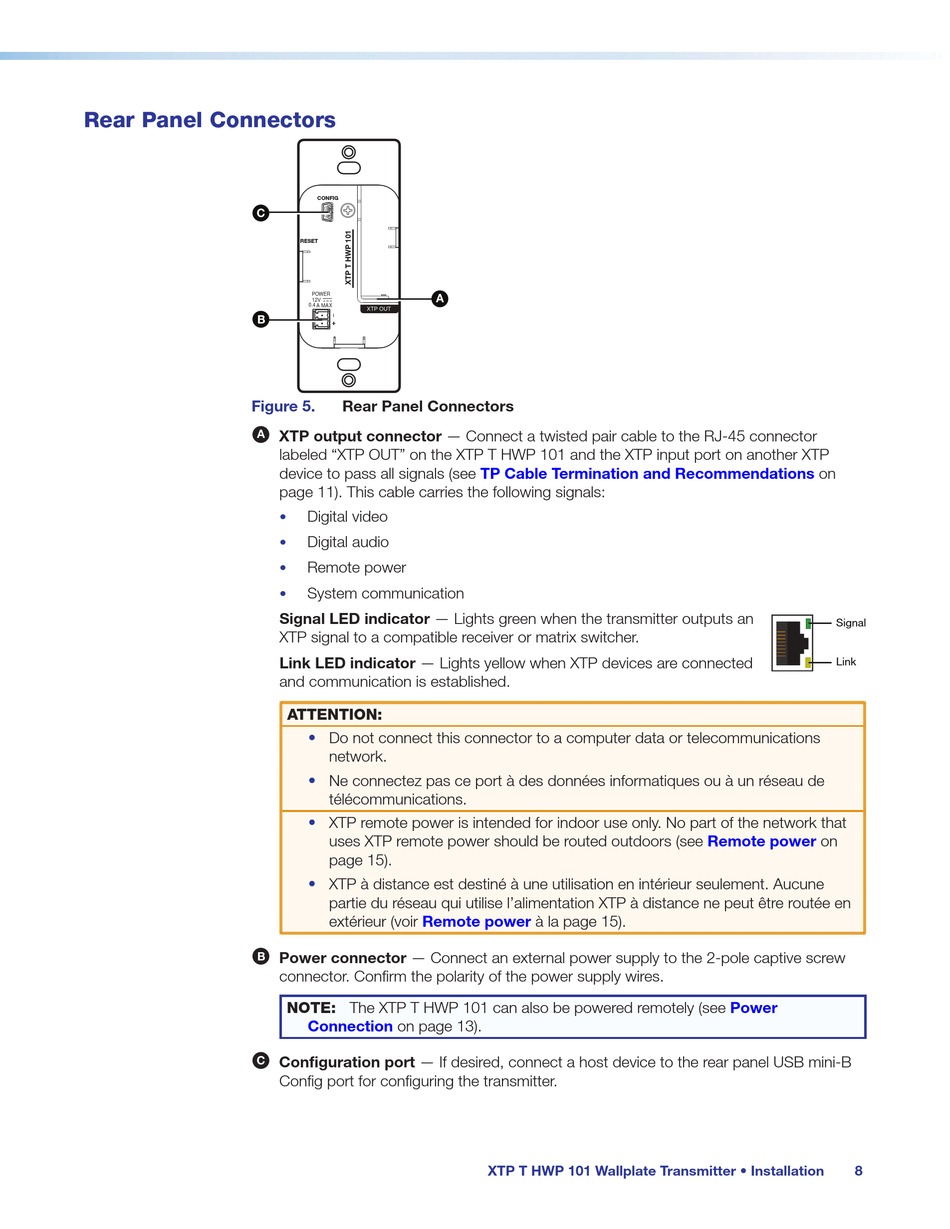

Rear Panel Connectors

C
B
Figure 5.
A
B
C
CONFIG
RESET
POWER A
12V
0.4
A MAX
XTP OUT
Rear Panel Connectors
XTP output connector — Connect a twisted pair cable to the RJ-45 connector
labeled "XTP OUT" on the XTP T HWP 101 and the XTP input port on another XTP
device to pass all signals (see
page 11). This cable carries the following signals:
Digital video
•
Digital audio
•
Remote power
•
System communication
•
Signal LED indicator — Lights green when the transmitter outputs an
XTP signal to a compatible receiver or matrix switcher.
Link LED indicator — Lights yellow when XTP devices are connected
and communication is established.
ATTENTION:
• Do not connect this connector to a computer data or telecommunications
network.
• Ne connectez pas ce port à des données informatiques ou à un réseau de
télécommunications.
• XTP remote power is intended for indoor use only. No part of the network that
uses XTP remote power should be routed outdoors (see
page 15).
•
XTP à distance est destiné à une utilisation en intérieur seulement. Aucune
partie du réseau qui utilise l'alimentation XTP à distance ne peut être routée en
extérieur (voir Remote power
Power connector — Connect an external power supply to the 2-pole captive screw
connector. Confirm the polarity of the power supply wires.
NOTE: The XTP T HWP 101 can also be powered remotely (see
Connection
on page 13).
Configuration port — If desired, connect a host device to the rear panel USB mini-B
Config port for configuring the transmitter.
TP Cable Termination and Recommendations
à la page 15).
XTP T HWP 101 Wallplate Transmitter • Installation
on
Signal
Link
Remote power on
Power
8
