Simplex 4100U Operation Reference page 5

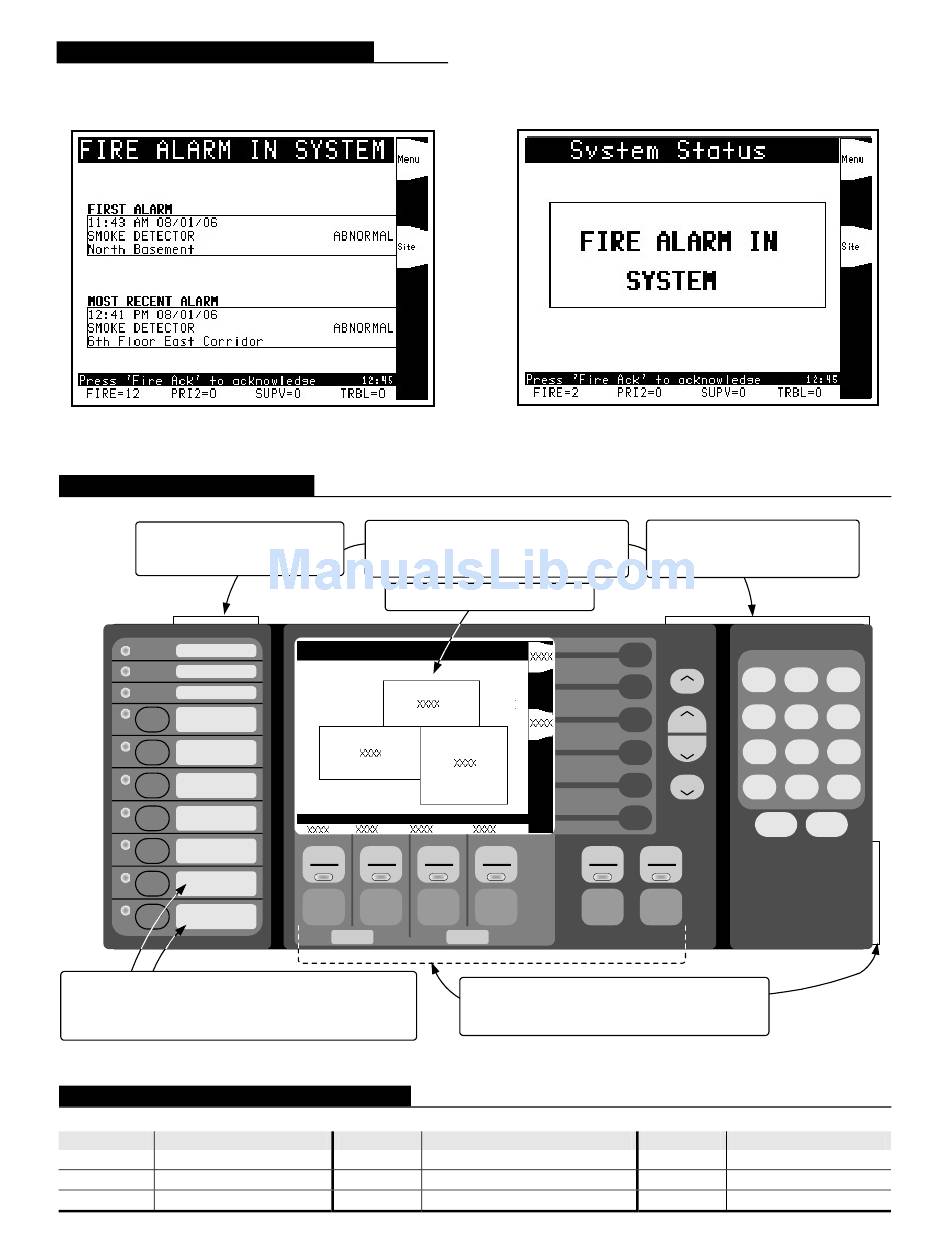

Additional Primary Display Screens
Below are samples of a First and Most Recent primary
display and of a General Alarm display.
First and Most Recent Primary Display Option
International Display Details
CUSTOM LABEL INSERT for the
three programmable LEDs and for the
seven programmable switches
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
Toggle
Language
Lamp Test
SWITCH PROGRAMMING EXAMPLES; for UL listed systems,
designate the bottom switch for Lamp Test; for dual language
systems, you can program a second switch to change the language
display (text shown for reference only, slide-in labels are blank)
Additional 4100U Data Sheet Reference
Data Sheet Subject
S4100-0031 Standard Panel Reference S4100-0035 MINIPLEX
S4100-0036 Network Display Unit
S4100-0038 Remote Annunciators
NOTE: Two sets of slide-in labels are provided,
one blank, the other in English; areas shown with
+ + + + are blank for custom words/characters
Generic site plan shown for reference
+ + + + + + + + + + + + + + + +
+ + + + + + + + + + + + + + + +
+ + + + + + + +
LOWER LABEL INSERT allows custom labeling of the
six ACK/Silence/Reset switches and labeling of their
associated LEDs
Data Sheet Subject
S4081-0002 Remote Battery Charger
S4100-0046 IDNet+ Module w/Quad Isolator
5
General Alarm Primary Display Option
UPPER LABEL INSERT allows
custom labeling of the numeric keypad
and of the LCD navigation controls
+ + + +
+ + + +
+ + + +
+ + + +
+ + + + + + + +
+ + + + + + + +
Data Sheet
®
Transponders S4100-0034 Audio/Phone Modules
S4100-0032 LED/Switch Modules
S4100-0037 Enclosure Options
+ + + + + + + + + + + +
+ + + + + + + + + + + +
+ + + + + + + + + + + +
+ + + + + + + + + + + +
+ + + + + + + +
Subject
S4100-0045-4 11/2007
