Simplex 4100U Operation Reference page 3

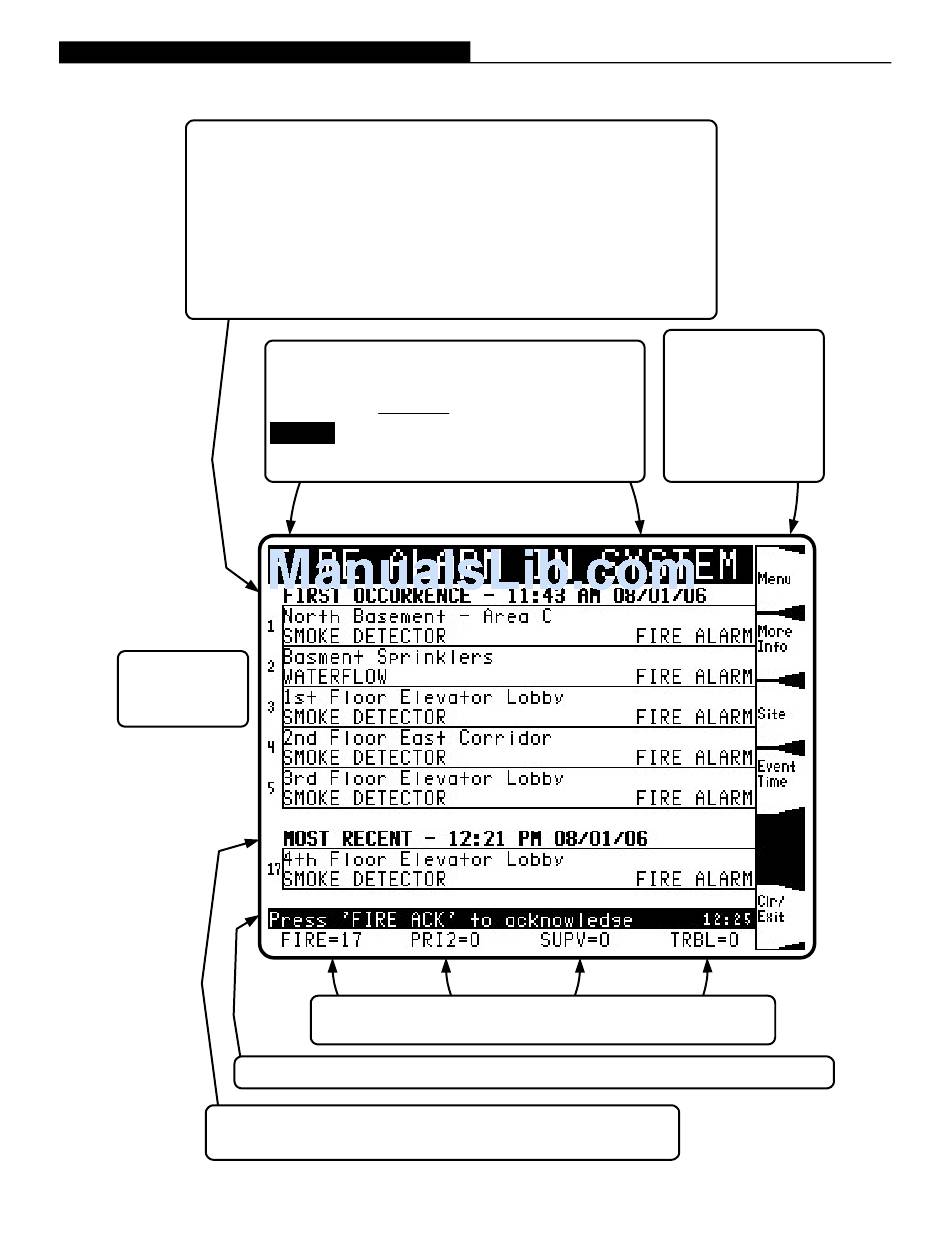

Display Feature Reference (shown actual size)
FIRST OCCURRENCES (UP TO 5) AND MOST RECENT OCCURRENCE,
ACTIVITY IN SYSTEM DISPLAY ("Fire Alarm in System" screen shown for reference,
see page 2 for a First 8 Events display)
FIRST OCCURRENCE advises of the time, date, device type, and custom label of the
first occurrence of the event type displayed; the numerical count identifies the
sequence of occurrence; when selected as the primary display screen, display of first
occurrence and most recent occurrence is maintained until events are acknowledged
which brings up the event list (similar to the First 8 display); the display reverts back to
"First and Most Recent" when the Clr/Exit softkey is selected or after a time delay
DISPLAY SIZE:
4.53" W x 3.4" H
(115 mm x 86 mm)
COMMAND PROMPT advises the operator of the action required and displays local panel time
MOST RECENT advises of the time, date, device type, and custom label of
the most recent occurrence of the list shown, in this case, the Fire Alarm list
FONT ATTRIBUTES include:
Normal, Bold, Underline,
Reverse , Flash On/Off, Flash On/Dim, and
commands for Vertical and Horizontal Placement
TALLY COUNTS list the number of activities per category of Fire Alarm
(FIRE), Primary 2 Alarm (PRI2), Supervisory (SUPV), and Trouble (TRBL)
Double
, Dim,
3
SOFT KEYS in this
column correspond to
the panel pushbutton
switches; programming
allows the soft keys to
appear only when the
functions are enabled
S4100-0045-4 11/2007
