INSTALLATION INSTRUCTIONS FOR PART 99-5825
Ford Fiesta 2011-up
99-5825S, 99-5825B
KIT FEATURES
• ISO DIN Head unit provision
• Driver information circuits and buttons
• Painted Silver or Matte Black to match factory finish

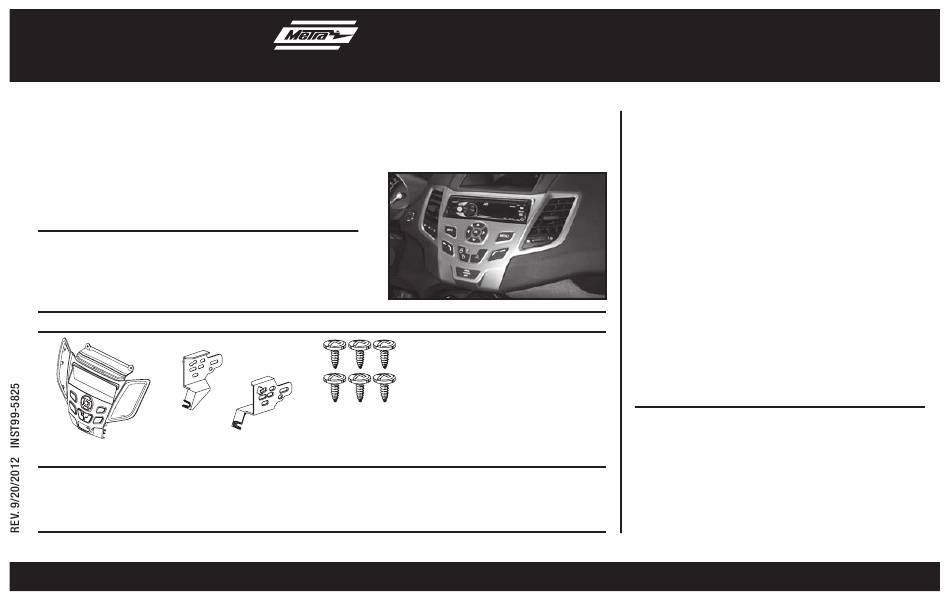

KIT COMPONENTS
• A) Radio Housing • B) Radio ISO Brackets • C) (6) #8 x 3/8" Phillips truss head screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • XSVI-5524-NAV Ford interface 2011-up
Antenna Adapter: • 40-EU10 multi-app adapter
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Socket Wrench • Cutting Tool
METRA. The World's best kits.
APPLICATIONS
C
™
1-800-221-0932
Dash Disassembly
– Ford Fiesta 2011-up ............................................. 2
Kit Assembly
– ISO DIN head unit provisions ................................ 3
NOTE: This kit comes pre-programmed for vehicles
equipped with SYNC. It will not operate properly in vehicles
equipped without SYNC unless it is programmed.
Programming for vehicles without SYNC:
1. Turn on the ignition.
2. Press and hold the kit's menu button for
ten seconds.
3. Release the menu button and test the kit's buttons
for proper operation.
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in
beforereconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
Table of Contents
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-5825S
Summary of Contents for Metra Electronics 99-5825S
- Page 1 Antenna Adapter: • 40-EU10 multi-app adapter NOTE: Refer to the instructions included with the TOOLS REQUIRED aftermarket radio. • Panel removal tool • Phillips screwdriver • Socket Wrench • Cutting Tool METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
- Page 2 99-5825 Dash Disassembly 1. Unsnap and remove the panel 4. Remove two 7 mm hex holding over the display at the top of radio and radio chassis together the dash. (Figure A) (from top of panel). (Figure D) 2. Remove two 7 mm hex screws 5.
- Page 3 99-5825 Kit Assembly 1. Snap the factory vents into the 3. Mount the radio bracket assembly 5. Locate the factory wiring radio panel. (Figure A) to the radio panel using the harness and antenna plug in the supplied screws. (Figure C) dash.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
- Page 5 Adaptador de antena: • Adaptador de aplicación múltiple 40-EU10 Nota: Remítase a las instrucciones incluidas con el radio HerrAmientAs requeridAs de posventa. • Herramienta para quitar paneles • Destornillador Phillips • Llave para dados METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
- Page 6 99-5825 Desmontaje del tablero 1. Desenganche y quite el panel que 4. Quite los dos tornillos Torx T-20 y está sobre la pantalla en la parte desenganche las dos rejillas del de arriba del tablero. (Figura A) panel del radio de fábrica. (Figura D) 2.
- Page 7 99-5825 Ensamble del kit 1. Ponga a presión las rejillas de 3. Monte el conjunto del soporte del 5. Ubique el arnés de cables de fábrica en el panel del radio. radio en el panel del radio con los fábrica y el conector de la antena (Figura A) tornillos que se incluyen.
- Page 8 800-354-6782 para obtener más información y avance toward a better tomorrow. hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). METRA. The World’s best kits. ™ 1-800-221-0932 metraonline.com © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
