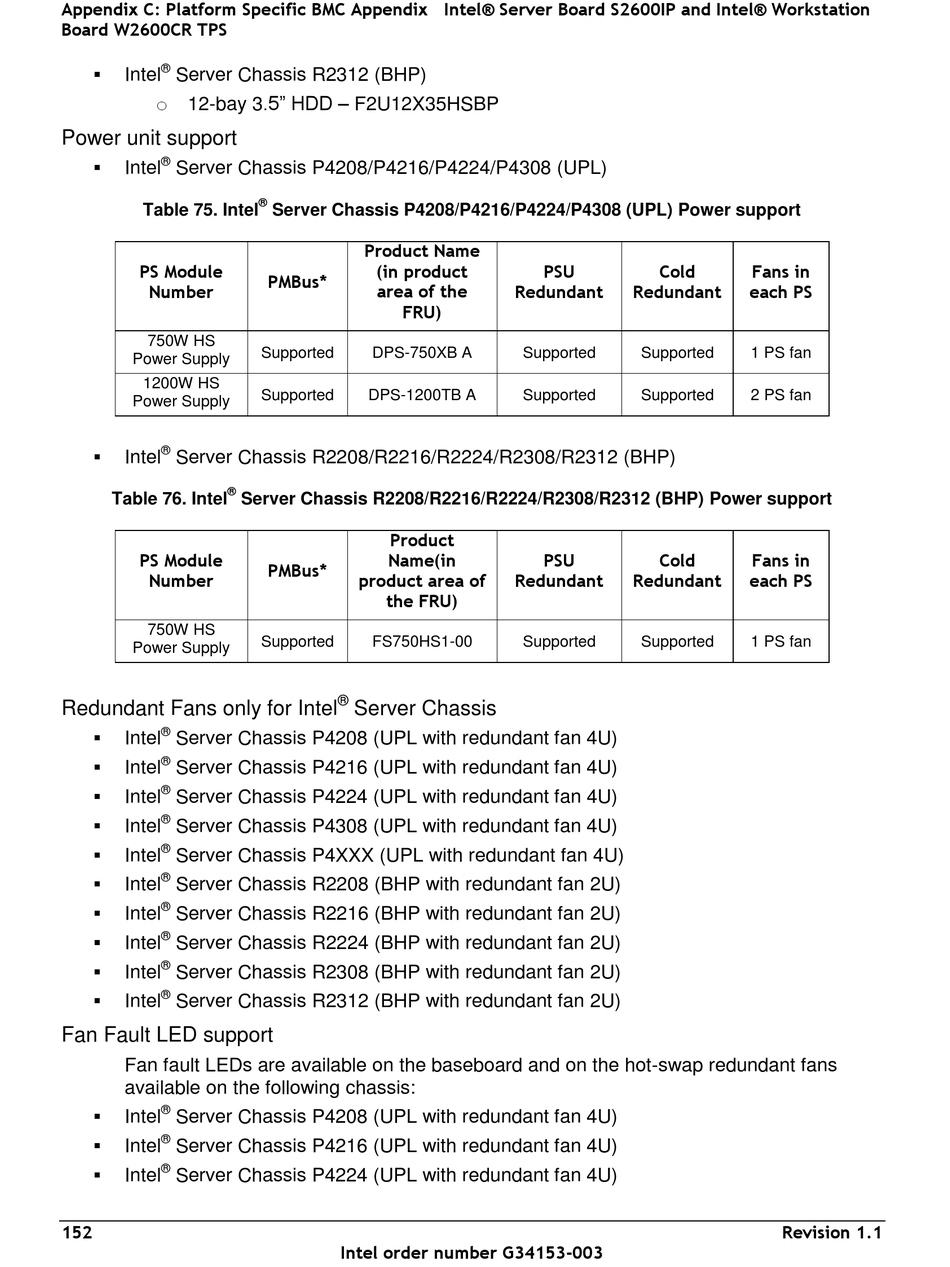

Appendix C: Platform Specific BMC Appendix Intel® Server Board S2600IP and Intel® Workstation
Board W2600CR TPS
®

Intel Server Chassis R2312 (BHP)
o 12-bay 3.5" HDD – F2U12X35HSBP

Power unit support

®

Intel Server Chassis P4208/P4216/P4224/P4308 (UPL)
Table 75. Intel
PS Module
Number
750W HS
Power Supply
1200W HS
Power Supply
®

Intel Server Chassis R2208/R2216/R2224/R2308/R2312 (BHP)
®
Table 76. Intel
PS Module
Number
750W HS
Power Supply
Redundant Fans only for Intel
®

Intel Server Chassis P4208 (UPL with redundant fan 4U)
®

Intel Server Chassis P4216 (UPL with redundant fan 4U)
®

Intel Server Chassis P4224 (UPL with redundant fan 4U)
®

Intel Server Chassis P4308 (UPL with redundant fan 4U)
®

Intel Server Chassis P4XXX (UPL with redundant fan 4U)
®

Intel Server Chassis R2208 (BHP with redundant fan 2U)
®

Intel Server Chassis R2216 (BHP with redundant fan 2U)
®

Intel Server Chassis R2224 (BHP with redundant fan 2U)
®

Intel Server Chassis R2308 (BHP with redundant fan 2U)
®

Intel Server Chassis R2312 (BHP with redundant fan 2U)

Fan Fault LED support

Fan fault LEDs are available on the baseboard and on the hot-swap redundant fans
available on the following chassis:
®

Intel Server Chassis P4208 (UPL with redundant fan 4U)
®

Intel Server Chassis P4216 (UPL with redundant fan 4U)
®

Intel Server Chassis P4224 (UPL with redundant fan 4U)
152
®
Server Chassis P4208/P4216/P4224/P4308 (UPL) Power support
Product Name
(in product
PMBus*
area of the
FRU)
Supported DPS-750XB A
Supported DPS-1200TB A
Server Chassis R2208/R2216/R2224/R2308/R2312 (BHP) Power support
Product
Name(in
PMBus*
product area of
the FRU)
Supported FS750HS1-00
®
Server Chassis
Intel order number G34153-003
PSU Cold
Redundant Redundant
Supported Supported
Supported Supported
PSU Cold
Redundant Redundant
Supported Supported
Fans in
each PS
1 PS fan
2 PS fan
Fans in
each PS
1 PS fan
Revision 1.1
