Icom IC-7600 Service Manual page 84

[RF UNIT] (RF)
REF ORDER
NO. NO.
RL101 6330001860 UA2-12NU
RL102 6330001860 UA2-12NU
RL103 6330001860 UA2-12NU
RL104 6330001860 UA2-12NU
RL105 6330001860 UA2-12NU
RL161 6330000540 OMR-109F
J101 6510007020 TMP-J01X-V6
J102 6450001130 JPJ2042-01-110
J103 6450001800 JPJ1044-01-010
J161 6450001130 JPJ2042-01-110
J201 6510007020 TMP-J01X-V6
J451* 6510022581 24FMN-BMTTR-A-TBT (LF) (SN)
J801 6910016430 IMSA-9210B-1-05Z869-PT1
J802 6910016430 IMSA-9210B-1-05Z869-PT1
J803 6910016430 IMSA-9210B-1-05Z869-PT1
J804 6910016430 IMSA-9210B-1-05Z869-PT1
J805 6910016430 IMSA-9210B-1-05Z869-PT1
J807 6910016430 IMSA-9210B-1-05Z869-PT1
J809 6910016430 IMSA-9210B-1-05Z869-PT1
J951 6510007020 TMP-J01X-V6
J1101 6510007020 TMP-J01X-V6
J1301 6510007020 TMP-J01X-V6
J1651 6510007020 TMP-J01X-V6
J1701 6510007020 TMP-J01X-V6
J1702 6910004741 IMSA-9202B-1-03Z041-PT1
J1703 6910004741 IMSA-9202B-1-03Z041-PT1
J1704 6910004741 IMSA-9202B-1-03Z041-PT1
J1705 6910004741 IMSA-9202B-1-03Z041-PT1
J1706 6910004741 IMSA-9202B-1-03Z041-PT1
J1707 6910004741 IMSA-9202B-1-03Z041-PT1
J1708 6910004741 IMSA-9202B-1-03Z041-PT1
J1709 6910004741 IMSA-9202B-1-03Z041-PT1
J2001 6510007020 TMP-J01X-V6
MP1 8930065741 2590 D-EARTH SPRING-1
MP2 8930065741 2590 D-EARTH SPRING-1
MP3 8930065741 2590 D-EARTH SPRING-1
MP1001* 8510016730 2178 1MIX CASE
MP1002 8510016721 2178 1MIX COVER-1
MP1201* 8510016730 2178 1MIX CASE
MP1202 8510016721 2178 1MIX COVER-1
MP1203 8930055981 SHIELD SPONGE (F)-1
MP1451* 8510012400 2177 D/A CASE
[PLL UNIT] (PLL)
REF ORDER
NO. NO.
J1* 6510022581 24FMN-BMTTR-A-TBT (LF) (SN)
J51 6510007020 TMP-J01X-V6
J81 6510007020 TMP-J01X-V6
J351 6510007020 TMP-J01X-V6
J651 6510007020 TMP-J01X-V6
J701 6510007020 TMP-J01X-V6
J831 6510007020 TMP-J01X-V6
J851 6510007020 TMP-J01X-V6
MP1 8930065741 2590 D-EARTH SPRING-1
MP51 8510015900 2590 M-2LO CASE
MP101* 8510018770 3009 PLL CASE
MP102 8510002280 VCOSHIELD PLATE (A) (FX-15)
MP103 8930078840 SHIELD SPONGE (CM)
MP201* 8510012541 2178 VCO CASE-1
MP202 8510011521 2072 VCO COVER-1
MP203 8510011710 2072 VCO SHIELD
MP204 8810003961 SETSCREW (A) 2.6X5 ZC3
MP205 8930077460 RUBBER SHEET (CF)
MP206 8930078840 SHIELD SPONGE (CM)
MP207 8930078840 SHIELD SPONGE (CM)
MP208 8930078840 SHIELD SPONGE (CM)
MP209 8930078840 SHIELD SPONGE (CM)
MP301* 8510019110 3073 PLL CASE
MP381* 8510012550 2178 DDS CASE
MP382 8510012580 2178 DDS COVER
MP401 8510010760 1876 DDS CASE
MP402 8510010770 1876 DDS COVER
MP403* 8510010850 1897 D/A CASE
MP451* 8510012550 2178 DDS CASE
MP452 8510012580 2178 DDS COVER
MP501 8510012541 2178 VCO CASE-1
MP502 8510011521 2072 VCO COVER-1
MP503 8510011710 2072 VCO SHIELD
MP601* 8510019110 3073 PLL CASE
MP701* 8510018770 3009 PLL CASE
MP702 8930078840 SHIELD SPONGE (CM)
MP821* 8510012400 2177 D/A CASE
*: Refer to "BOARD LAYOUTS" for the location.
**: Refer to "GENERAL WIRING" for the connection.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
[DCDC UNIT] (DC)
REF ORDER
NO. NO.
J1 6910020210 IMSA-9180S-12A
F1 5210001050 ICP-S0.5
MP1* 8510019150 3073 DC-DC SHIELD
MP2* 8510019140 3073 DC-DC CASE
MP3 8510019300 3073 DC-DC PLATE
[TUNER UNIT] (TUN)
REF ORDER
NO. NO.
RL1 6330001610 NY-12W-K-IE
RL2 6330001610 NY-12W-K-IE
RL3 6330001610 NY-12W-K-IE
RL4 6330001610 NY-12W-K-IE
RL5 6330001610 NY-12W-K-IE
RL6 6330001610 NY-12W-K-IE
RL7 6330001610 NY-12W-K-IE
RL8 6330001610 NY-12W-K-IE
RL9 6330001610 NY-12W-K-IE
RL10 6330001610 NY-12W-K-IE
RL11 6330001610 NY-12W-K-IE
RL12 6330001610 NY-12W-K-IE
RL13 6330001610 NY-12W-K-IE
RL14 6330001610 NY-12W-K-IE
RL15 6330001610 NY-12W-K-IE
RL16 6330001610 NY-12W-K-IE
J3 6510007020 TMP-J01X-V6
J4 6510007020 TMP-J01X-V6
J5* 6510022591 22FMN-BMTTR-A-TBT (LF) (SN)
MF1 2710000800 MP24ZA
MF2 2710000800 MP24ZA
W1 8900018420 OPC-1889
MP1 8930041091 1876 A-ANGLE-1
MP2 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP3 8810009061 SCREW M3X6 ZK3
MP4 8930041111 1876 B-ANGLE-1
MP5 8810009061 SCREW M3X6 ZK3
MP6 8820000881 1528 SCREW-1
MP7 8930030112 1414 PLATE-2
MP8 8950003200 UJ6-5 (UNIVERSAL COUPLINGS)
MP9* 8930051580 2178 TUNER PLATE
MP10 8930079540 3073 TUNER PLATE

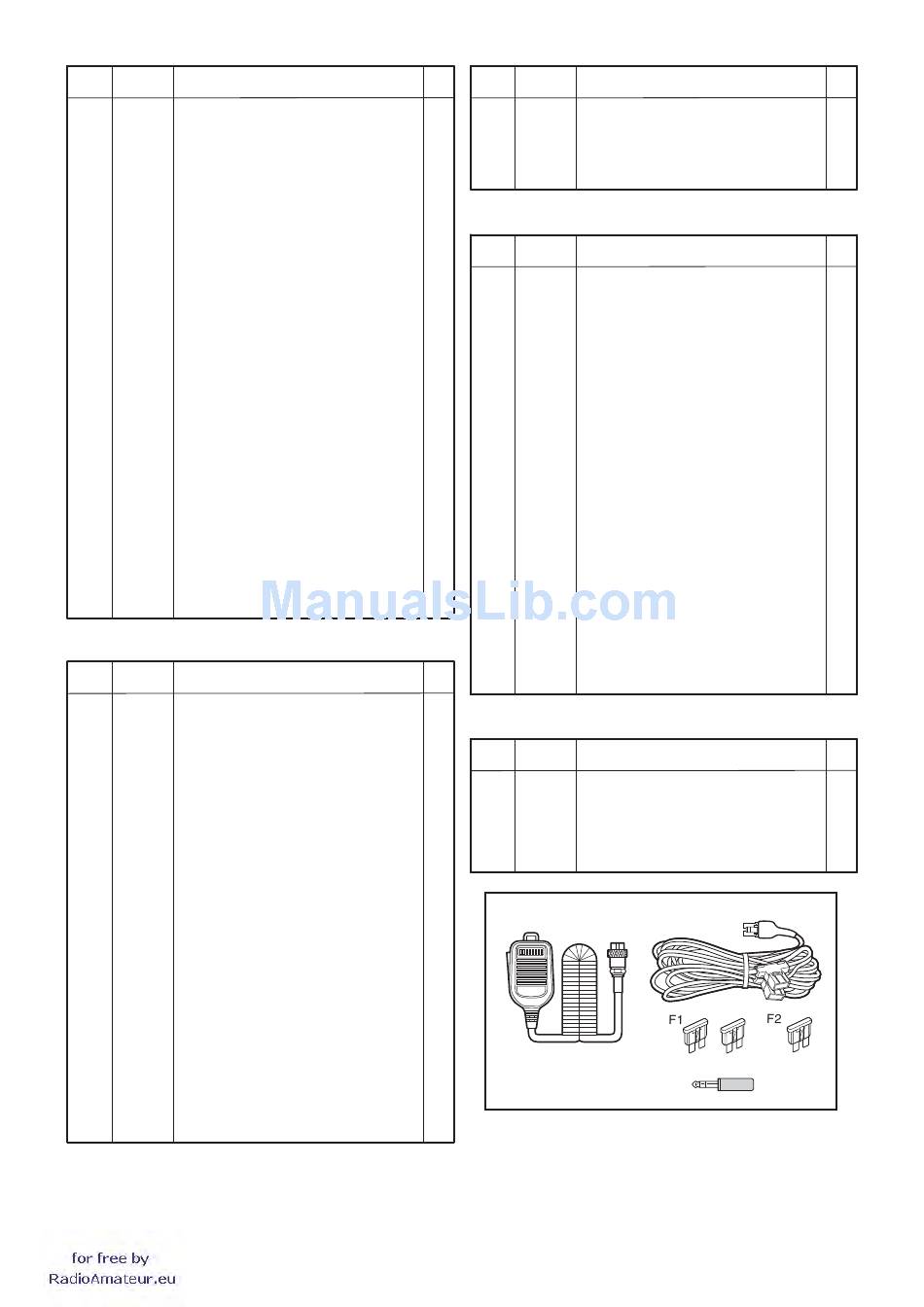

[ACCESSORIES] (ACC)
REF ORDER
NO. NO.
P1 5610000410 AP-319
MC1 (Optional) HM-36-1
F1 5210000840 ATC 30
F2 5210000940 1205
W1 8900013980 OPC-1457
MC1
6 - 6
DESCRIPTION QTY.
1
1
1
1
1
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
2
4
2
2
1
1
DESCRIPTION QTY.
1
1
2
1
1
W1
P1
