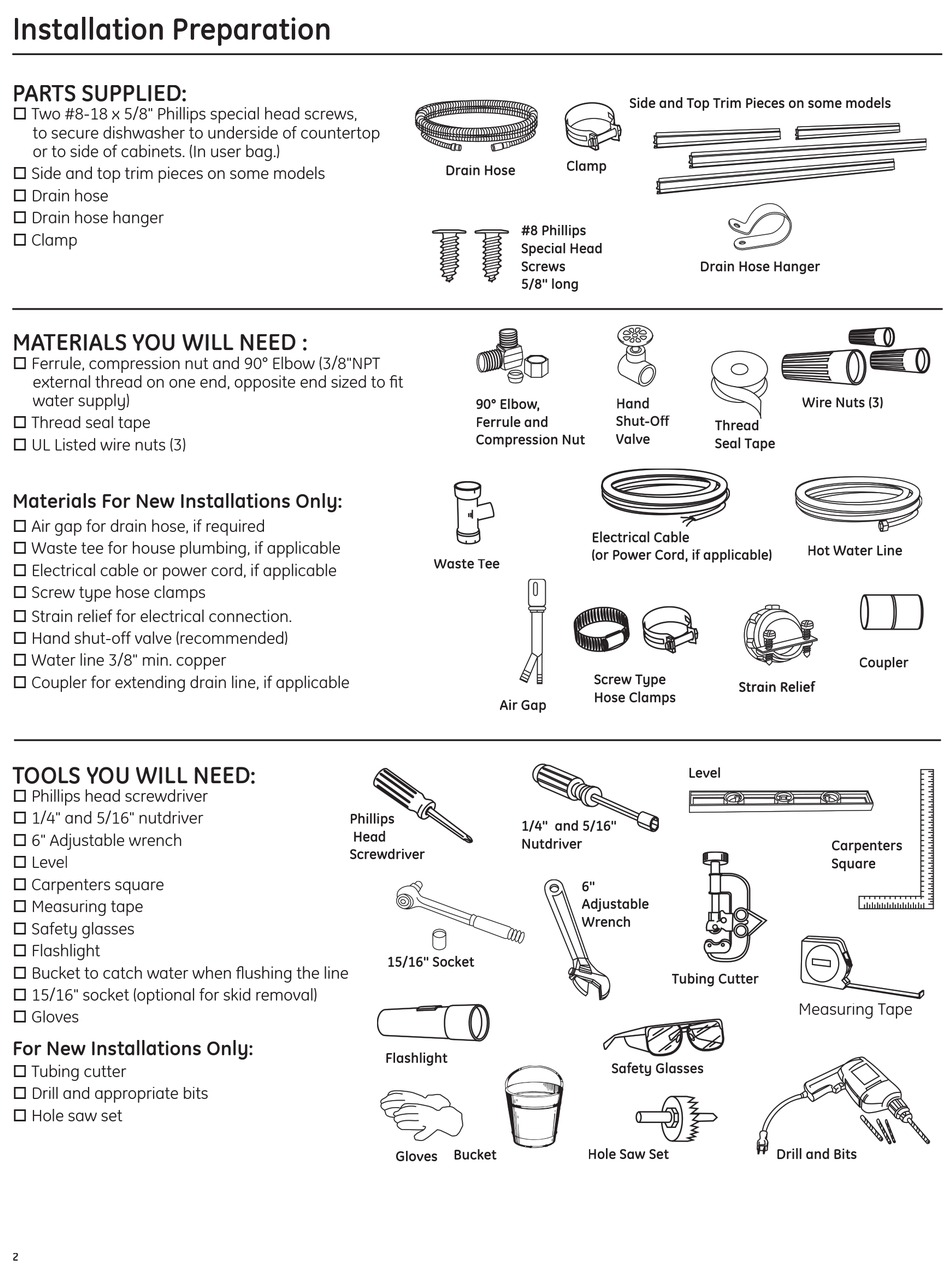

Installation Preparation

PARTS SUPPLIED:
® Two #8-18 x 5/8" Phillips special head screws,
to secure dishwasher to underside of countertop
or to side of cabinets. (In user bag.)
® Side and top trim pieces on some models
® Drain hose
® Drain hose hanger
® Clamp
MATERIALS YOU WILL NEED :
® Ferrule, compression nut and 90° Elbow (3/8"NPT
external thread on one end, opposite end sized to fi t
water supply)
® Thread seal tape
® UL Listed wire nuts (3)
Materials For New Installations Only:
® Air gap for drain hose, if required
® Waste tee for house plumbing, if applicable
® Electrical cable or power cord, if applicable
® Screw type hose clamps
® Strain relief for electrical connection.
® Hand shut-off valve (recommended)
® Water line 3/8" min. copper
® Coupler for extending drain line, if applicable
TOOLS YOU WILL NEED:
® Phillips head screwdriver
® 1/4" and 5/16" nutdriver
® 6" Adjustable wrench
® Level
® Carpenters square
® Measuring tape
® Safety glasses
® Flashlight
® Bucket to catch water when fl ushing the line
® 15/16" socket (optional for skid removal)
® Gloves
For New Installations Only:
® Tubing cutter
® Drill and appropriate bits
® Hole saw set
2
Drain Hose
#8 Phillips
923-02D
Special Head
Screws
5/8" long
923-02Z
90° Elbow,
Ferrule and
756Dia4
Compression Nut
Waste Tee
756Dia8
Air Gap
756Dia11
Phillips
1/4" and 5/16"
Head
Nutdriver
Screwdriver
756Dia15
15/16" Socket
756Dia17
Flashlight
756Dia23
Bucket
Gloves
756Dia26
756Dia25
Side and Top Trim Pieces on some models
Clamp
923-02C
Drain Hose Hanger
�����������
212Dia21
Hand
Shut-Off
Thread
Valve
Seal Tape
Hand Valve
756Dia6
Electrical Cable
(or Power Cord, if applicable)
756Dia9
Screw Type
Hose Clamps
756Dia12 756Dia13
Level
6"
Adjustable
756Dia16
Wrench
Tubing Cutter
756Dia21
Safety Glasses
756Dia20
756Dia24
Hole Saw Set
756Dia27
Wire Nuts (3)
756Dia7
Hot Water Line
756Dia10
Coupler
Strain Relief
Carpenters
756Dia19 Square
756Dia18
Measuring Tape
756Dia22
Drill and Bits
756Dia28
