STEP 12 POSITION DISHWASHER, SECURE
TO COUNTERTOP OR CABINET
In this step you will need the 2 Phillips special head
screws set aside prior to Step 1.
The dishwasher must be secured to the countertop or
the cabinet sides. For dishwashers which require side mounting
brackets, order part GPF65 from your authorized GE Appliance
Dealer.
Tip: Prevent door panel and control panel damage.
Dishwasher must be positioned so the front panel and
control panel do not contact the adjacent cabinets or
countertop. Mounting screws must be driven straight
and fl ush. Protruding screw heads could scratch the
door panel or control panel and interfere with door
operation.
Secure dishwasher to underside of wood countertop.
• Recheck alignment of the dishwasher in the cabinet. Refer to
Step 10, Figure R and Step 11. Door panel
and/or control panel must not hit cabinets or countertop.
• Fasten the dishwasher to the underside of the countertop
with the 2 Phillips special head screws provided. Refer to
Figure U. Make certain screws are driven straight and flush to
prevent panel damage.

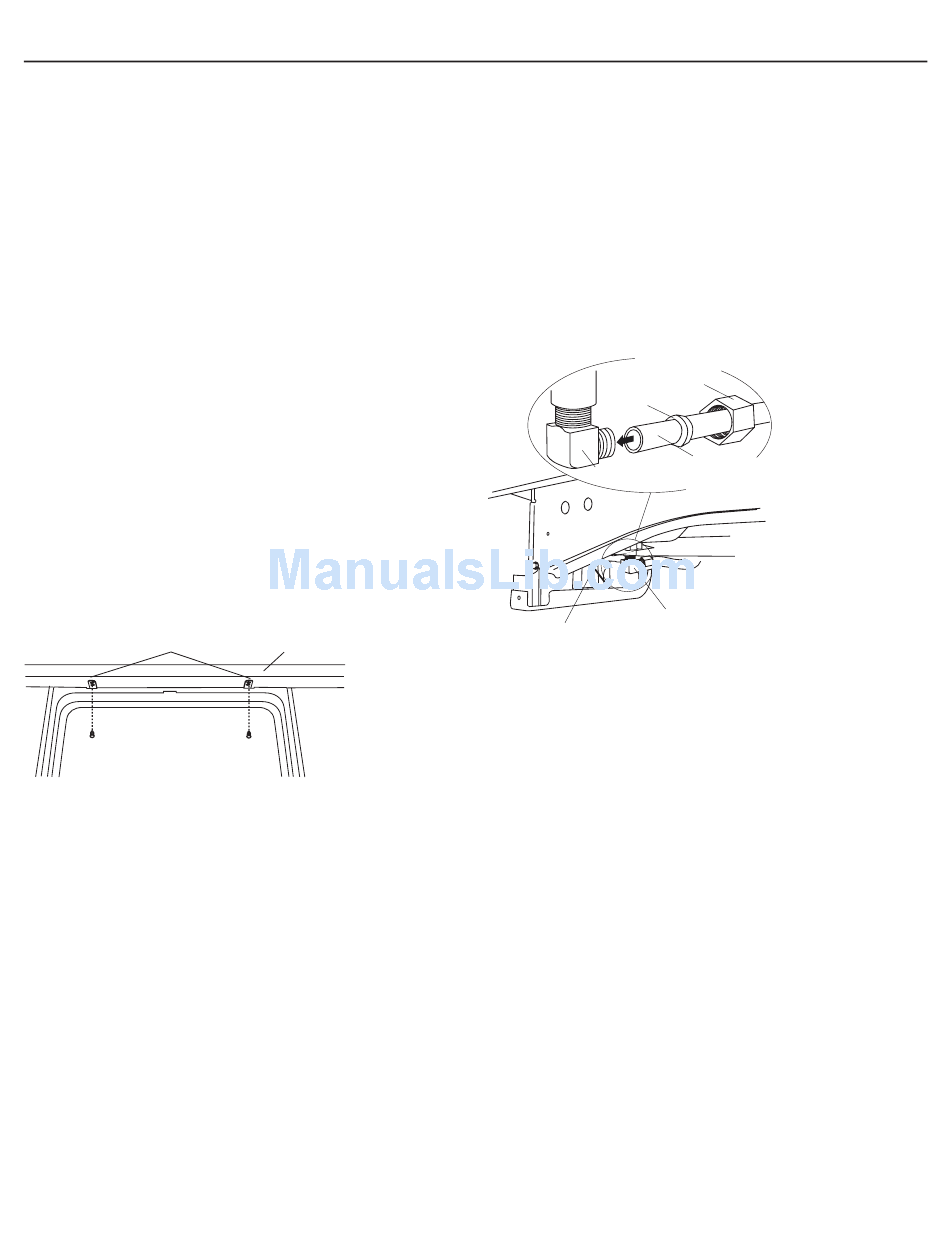

Brackets Wood Countertop
Figure U
756Dia55

STEP 13 CONNECT WATER SUPPLY

Connect water supply line to 90° elbow.
• Slide compression nut, then ferrule over end of
water line.
• Insert water line into 90° elbow.
• Slide ferrule against elbow and secure with compression nut.
IMPORTANT
spring does not rub or contact the fi ll hose or water supply line.
Test by opening and closing the door. Re-route the lines if a
rubbing noise or interference occurs.
Compression
Ferrule
90° Elbow
90° Elbow
Door Spring
Figure V
756Dia57
–
Check to be sure that door
Nut
Hot Water
Supply Line
