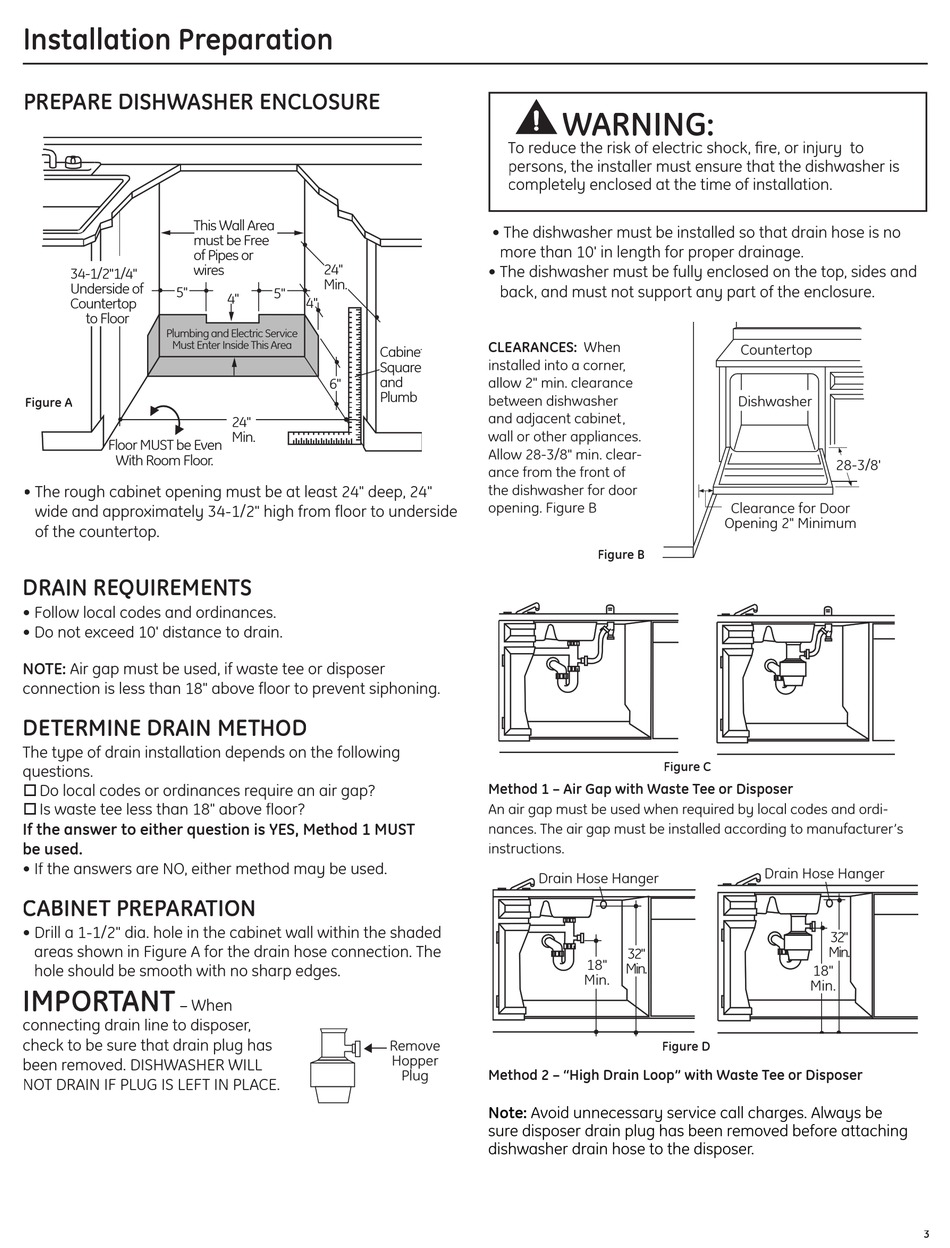

Installation Preparation

PREPARE DISHWASHER ENCLOSURE

This Wall Area
must be Free
of Pipes or
wires
34-1/2"1/4"
Underside of
5"
Countertop
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
Figure A
Floor MUST be Even
With Room Floor.
• The rough cabinet opening must be at least 24" deep, 24"
wide and approximately 34-1/2" high from floor to underside
of the countertop.

DRAIN REQUIREMENTS

• Follow local codes and ordinances.
• Do not exceed 10' distance to drain.
NOTE: Air gap must be used, if waste tee or disposer
connection is less than 18" above floor to prevent siphoning.
DETERMINE DRAIN METHOD
The type of drain installation depends on the following
questions.
® Do local codes or ordinances require an air gap?
® Is waste tee less than 18" above floor?
If the answer to either question is YES, Method 1 MUST
be used.
• If the answers are NO, either method may be used.

CABINET PREPARATION

• Drill a 1-1/2" dia. hole in the cabinet wall within the shaded
areas shown in Figure A for the drain hose connection. The
hole should be smooth with no sharp edges.
IMPORTANT
– When
connecting drain line to disposer,
check to be sure that drain plug has
been removed. DISHWASHER WILL
NOT DRAIN IF PLUG IS LEFT IN PLACE.
24"
Min.
5"
4"
4"
Cabinets
Square
and
6"
Plumb
24"
Min.
612Dia41
Remove
923-02N
WARNING:
To reduce the risk of electric shock, fi re, or injury to
persons, the installer must ensure that the dishwasher is
625Dia30
completely enclosed at the time of installation.
• The dishwasher must be installed so that drain hose is no
more than 10' in length for proper drainage.
• The dishwasher must be fully enclosed on the top, sides and
back, and must not support any part of the enclosure.
CLEARANCES: When
installed into a corner,
allow 2" min. clearance
between dishwasher
and adjacent cabinet,
wall or other appliances.
Allow 28-3/8" min. clear-
ance from the front of
the dishwasher for door
opening. Figure B
661Dia42
Method 1 – Air Gap with Waste Tee or Disposer
An air gap must be used when required by local codes and ordi-
nances. The air gap must be installed according to manufacturer's
instructions.
Drain Hose Hanger
Hopper
Method 2 – "High Drain Loop" with Waste Tee or Disposer 923-40A
Plug
Note: Avoid unnecessary service call charges. Always be
sure disposer drain plug has been removed before attaching
dishwasher drain hose to the disposer.
Countertop
Dishwasher
Clearance for Door
Opening 2" Minimum
Figure B
756Dia30
Figure C
661Dia43
32"
18"
Min.
Min.
Figure D
923-40B
28-3/8"
Drain Hose Hanger
32"
Min.
18"
Min.
3
