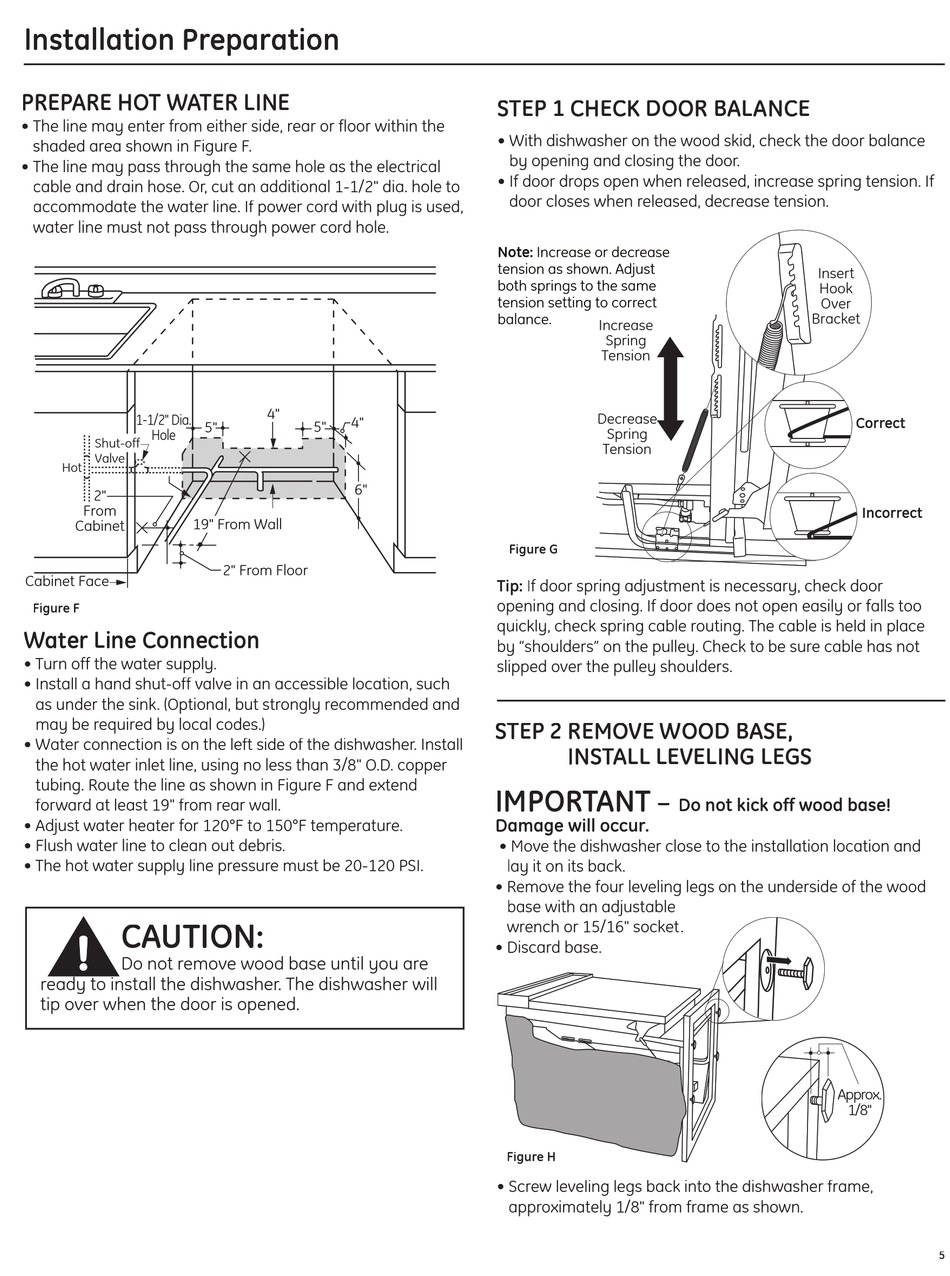

Installation Preparation

PREPARE HOT WATER LINE

• The line may enter from either side, rear or floor within the
shaded area shown in Figure F.
• The line may pass through the same hole as the electrical
cable and drain hose. Or, cut an additional 1-1/2" dia. hole to
accommodate the water line. If power cord with plug is used,
water line must not pass through power cord hole.
1-1/2" Dia.
Hole
Shut-off
Valve
Hot
2"
From
19" From Wall
Cabinet
Cabinet Face
Figure F
661Dia56
Water Line Connection
• Turn off the water supply.
• Install a hand shut-off valve in an accessible location, such
as under the sink. (Optional, but strongly recommended and
may be required by local codes.)
• Water connection is on the left side of the dishwasher. Install
the hot water inlet line, using no less than 3/8" O.D. copper
tubing. Route the line as shown in Figure F and extend
forward at least 19" from rear wall.
• Adjust water heater for 120°F to 150°F temperature.
• Flush water line to clean out debris.
• The hot water supply line pressure must be 20-120 PSI.
CAUTION: CAUTION: CAUTION: CAUTION: CAUTION:
Do not remove wood base until you are
ready to install the dishwasher. The dishwasher will
tip over when the door is opened.
625Dia30
4"
4"
5"
5"
6"
2" From Floor

STEP 1 CHECK DOOR BALANCE

• With dishwasher on the wood skid, check the door balance
by opening and closing the door.
• If door drops open when released, increase spring tension. If
door closes when released, decrease tension.
Note: Increase or decrease
tension as shown. Adjust
both springs to the same
tension setting to correct
balance.
��������
������
�������
��������
������
�������
Figure G
Tip: If door spring adjustment is necessary, check door
opening and closing. If door does not open easily or falls too
quickly, check spring cable routing. The cable is held in place
���������
by "shoulders" on the pulley. Check to be sure cable has not
slipped over the pulley shoulders.
STEP 2 REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IMPORTANT
–
Do not kick off wood base!
Damage will occur.
• Move the dishwasher close to the installation location and
lay it on its back.
• Remove the four leveling legs on the underside of the wood
base with an adjustable
wrench or 15/16" socket.
• Discard base.
Figure H
• Screw leveling legs back into the dishwasher frame,
approximately 1/8" from frame as shown.
756Dia39
������
����
����
�������
�������
���������
Approx.
1/8"
923-10B
5
