Installation Instructions

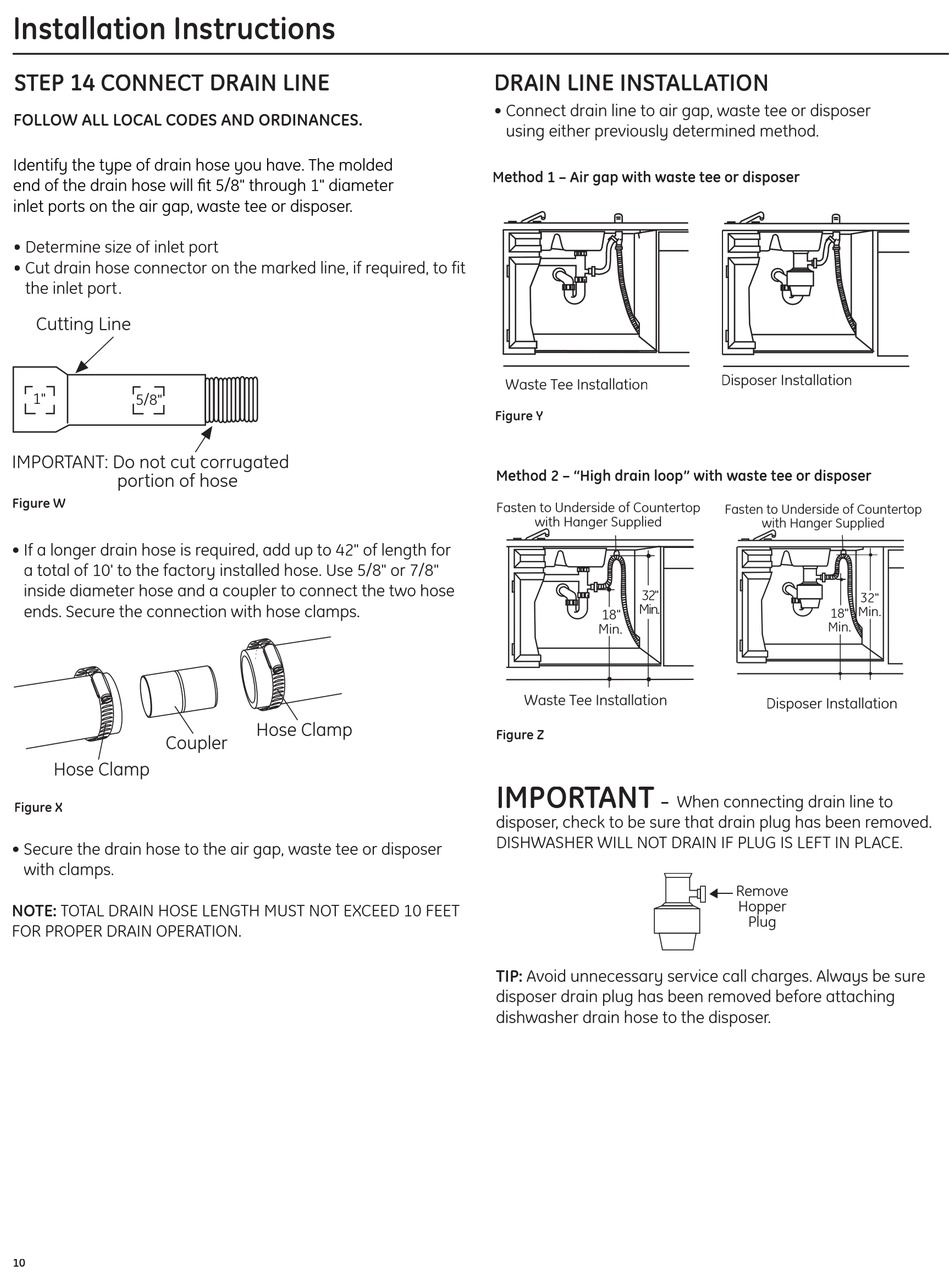

STEP 14 CONNECT DRAIN LINE

FOLLOW ALL LOCAL CODES AND ORDINANCES.
Identify the type of drain hose you have. The molded
end of the drain hose will fi t 5/8" through 1" diameter
inlet ports on the air gap, waste tee or disposer.
• Determine size of inlet port
• Cut drain hose connector on the marked line, if required, to fit
the inlet port.
Cutting Line
1" 5/8"
IMPORTANT: Do not cut corrugated
portion of hose
Figure W
• If a longer drain hose is required, add up to 42" of length for
a total of 10' to the factory installed hose. Use 5/8" or 7/8"
923-02B
inside diameter hose and a coupler to connect the two hose
ends. Secure the connection with hose clamps.
Coupler
Hose Clamp
Figure X
• Secure the drain hose to the air gap, waste tee or disposer
756Dia59
with clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED 10 FEET
FOR PROPER DRAIN OPERATION.
10
Hose Clamp

DRAIN LINE INSTALLATION

• Connect drain line to air gap, waste tee or disposer
using either previously determined method.
Method 1 – Air gap with waste tee or disposer
Waste Tee Installation
Figure Y
756Dia60
Method 2 – "High drain loop" with waste tee or disposer
���������������������������������
��������������������
���
����
���
����
Waste Tee Installation
Figure Z
���������
IMPORTANT
– When connecting drain line to
disposer, check to be sure that drain plug has been removed.
DISHWASHER WILL NOT DRAIN IF PLUG IS LEFT IN PLACE.
TIP: Avoid unnecessary service call charges. Always be sure
disposer drain plug has been removed before attaching
dishwasher drain hose to the disposer.
923-02N
Disposer Installation
756Dia61
���������������������������������
��������������������
���
����
���
����
Disposer Installation
���������
Remove
Hopper
Plug
